Tractor · 1989Unverified

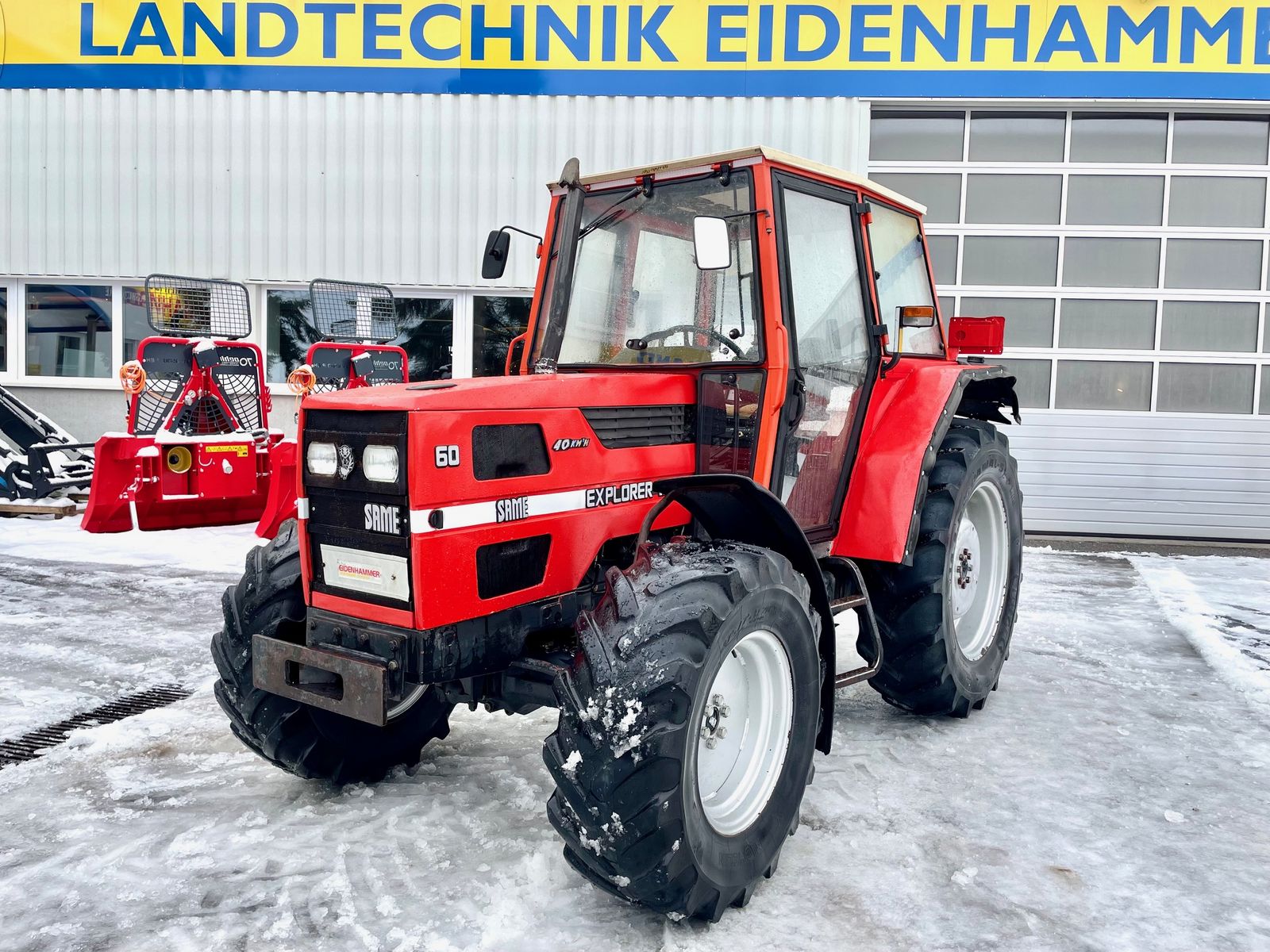

SAME Explorer II 60
SAME Explorer II 60 — Explorer II Series · 60 hp. Reference specifications; pending source verification.
The SAME Explorer II 60 is a compact tractor with a rated output of 60 hp, produced from 1989 to 1998. It is equipped with a 3-cylinder diesel air-cooled engine, coupled to a 20-speed gearbox and four-wheel drive. The model's listed weight ranges from 5600 to 6515 pounds. It is designed for use on landholdings of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
5600 to 6515 pounds
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
60 hp
Recorded weight
2540 kg
Transmissions
20-speed
Production years
1989-1998
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Two- or four-wheel driveReference
Engine
SAME 3.0L 3-cyl dieselReference
Fuel tank85.2 LReference
Engine44.7 kWReference
SAMEReference
dieselReference
3-cylinderReference
air-cooledReference
Displacement3.0 LReference
Bore/Stroke105 x 115 mmReference
Power44.7 kWReference
Rated RPM2500Reference
Transmission
20-speedReference
Gears20 forward and reverseReference
PTO & Hydraulics
Pump flow29.9 lpmReference
Rear lift2280 kgReference
Rear PTO Type540, 750, 1000Reference
Dimensions
Wheelbase219 cmReference
Weight5600 to 6515 poundsReference
Front tire7.50-16Reference
Rear tire14.9-28Reference
Ag front7.50-16Reference
Ag front11.2-24 (4WD)Reference
Ag rear14.9-28Reference
Ag rear14.9-30Reference
Length389 cmReference
Height251 cmReference
2WD Weight2540 kgReference
4WD Weight2955 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
