Tractor · 1989Unverified

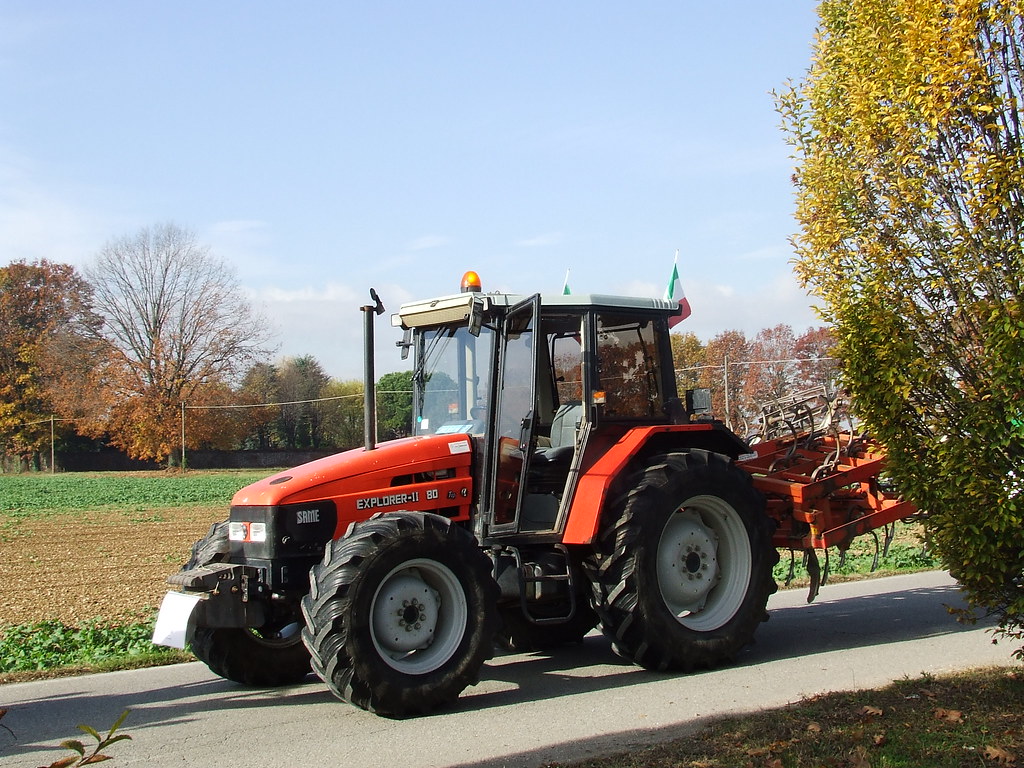

SAME Explorer II 80
SAME Explorer II 80 — Explorer II Series · 79 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
79 hp
Weight
6791 to 7385 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with heat. Air-conditioning optional.Reference
Variants
5680similar AGCO Allis modelReference
Engine
SAME 4.0L 4-cyl dieselReference
Fuel tank110.1 LReference
Engine59.0 kWReference
SAME 1000.4 A1Reference
dieselReference
4-cylinderReference
air-cooled inlineReference
Displacement4.0 LReference
Bore/Stroke105 x 115 mmReference
Power59.0 kWReference
Air cleanerdryReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
15-speed synchronizedReference
20-speed synchronizedReference
30-speed two-speed power shiftReference
40-speed two-speed power shiftReference
TypesynchronizedReference
Gears15 forward and reverseReference
Clutchhydraulic dry discReference
Gears20 forward and reverseReference
TransmissionSyncro PowerReference
Typetwo-speed power shiftReference
Gears30 forward and reverseReference
Gears40 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow42.0 lpmReference
Rear TypeIIReference
Rear lift3450 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2199Reference
Engine RPM540E@1717Reference
Engine RPM1000@2450Reference
Engine RPM1000E@1913Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
2WD Wheelbase241 cmReference
4WD Wheelbase231 cmReference
Weight6791 to 7385 poundsReference
Front tire10.00-16Reference
2WD Rear tire16.9/14-34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 16.9/14-34Reference
4WD Standard tires (ag)Front: 14.9/13-24. Rear: 16.9/14-34Reference
2WD Optional tires (ag)Front: 10.00-16. Rear: 13.6/12-38Reference
4WD Optional tires (ag)Front: 12.4/11-28. Rear: 13.6/12-38Reference
2WD Length367 cmReference
4WD Length377 cmReference
Width205 cmReference
Height (hood)162 cmReference
Height (cab)259 cmReference
2WD Weight3080 kgReference
4WD Weight3349 kgReference
2WD Ground clearance52 cmReference
4WD Ground clearance44 cmReference
2WD Front tread139 to 199 cmReference
4WD Front tread162 to 182 cmReference
Rear tread150 to 210 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
