Tractor · 2007Unverified
SAME Explorer3 100

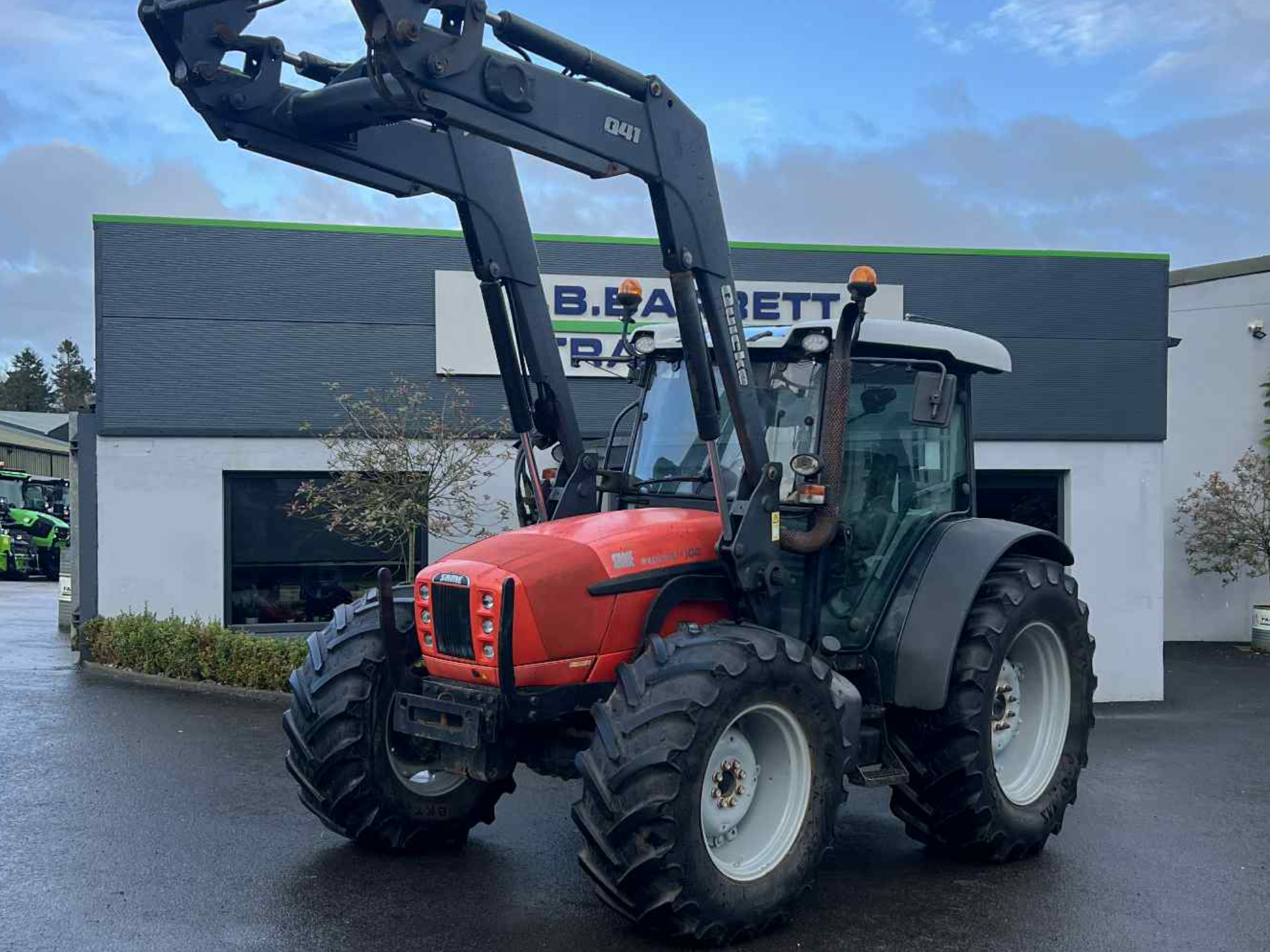

SAME Explorer3 100 — Model year 2007-20092009-2012 · 96 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
96 hp
Weight
7165 to 8378 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Two-post ROPS. Available cab with air-conditioning.Reference
Engine
Deutz 4.0L 4-cyl dieselReference
Fuel tank160.1 LReference
Engine (gross)71.6 kWReference
Deutz BF4M2012CReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke101 x 126 mmReference
EmissionsStage IIReference
Rated Power (gross)71.6 kWReference
Air cleanerdryReference
Rated RPM2300Reference
Torque352.6 NmReference
Torque RPM1700Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speed partially synchronizedReference
40-speed two-speed power shiftReference
Typepartially synchronizedReference
Gears20 forward and reverseReference
Five synchronized gears in four ranges.Reference
TransmissionAgroshiftReference
Typetwo-speed power shiftReference
Gears40 forward and reverseReference
Five synchronized gears in four ranges with two-speed power shift. Optional power shuttle.Reference
PTO & Hydraulics
Pump flow54.1 lpmReference
Rear lift4799 kgReference
Rear lift6200 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
2WD Wheelbase224 cmReference
4WD Wheelbase233 cmReference
Weight7165 to 8378 poundsReference
Front tire14.9R24Reference
4WD Rear tire16.9R34Reference
4WD Standard tires (ag)Front: 14.9R24. Rear: 16.9R34Reference
Length394 cmReference
Width204 cmReference
Height (ROPS)278 cmReference
Height (cab)263 cmReference
2WD ROPS Weight3250 kgReference
4WD Cab Weight3800 kgReference
Ground clearance50 cmReference
Front tread160 to 210 cmReference
Rear tread160 to 210 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
