Tractor · 2009Unverified

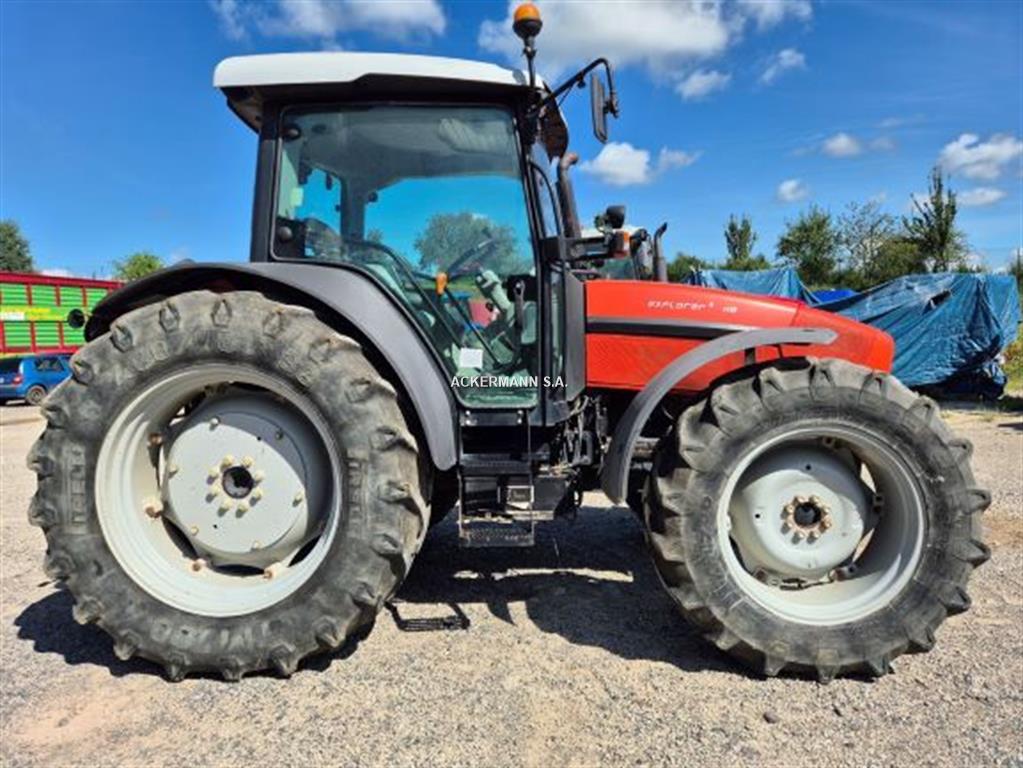

SAME Explorer3 110
SAME Explorer3 110 — Explorer3 Series · 109 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
109 hp
Weight
4100 kg
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Two-post ROPS. Available cab with air-conditioning.Reference
Engine
Deutz 4.0L 4-cyl dieselReference
Fuel tank160.1 LReference
Engine (gross)81.3 kWReference
Deutz TD2012L04Reference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke101 x 126 mmReference
EmissionsStage IIIReference
Rated Power (gross)81.3 kWReference
Air cleanerdryReference
Rated RPM2100Reference
Torque535.6 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
15-speed partially synchronizedReference
40-speed two-speed power shiftReference
Typepartially synchronizedReference
Gears15 forward and reverseReference
Five synchronized gears in three ranges. Optional creeper range provides 20 speeds.Reference
TransmissionAgroshiftReference
Typetwo-speed power shiftReference
Gears40 forward and reverseReference
Five synchronized gears in four ranges with two-speed power shift. Optional power shuttle.Reference
PTO & Hydraulics
Pump flow56.0 lpmReference
Rear lift5299 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase233 cmReference
Weight4100 kgReference
Front tire14.9R24Reference
Rear tire18.4R34Reference
Standard tires (ag)Front: 14.9R24. Rear: 18.4R34Reference
Length399 cmReference
Width204 cmReference
Height (ROPS)278 cmReference
Height (cab)258 cmReference
Ground clearance50 cmReference
Front tread160 to 210 cmReference
Rear tread160 to 210 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
