Tractor · 2004Unverified

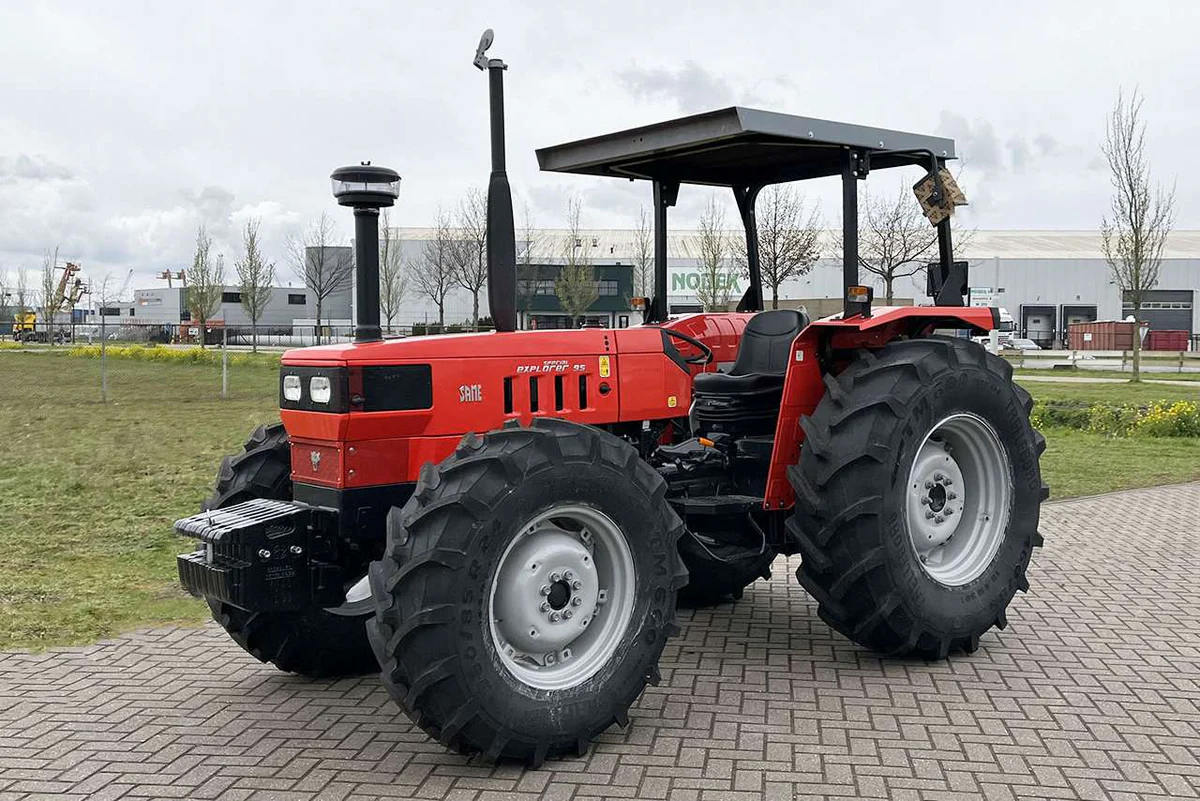

SAME Explorer3 95
SAME Explorer3 95 — Explorer3 Series · 96 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
96 hp
Weight
7385 to 8598 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Two-post ROPS. Available cab with air-conditioning.Reference
Engine
SAME 4.0L 4-cyl dieselReference
Fuel tank160.1 LReference
Engine (gross)71.6 kWReference
Engine (net)67.9 kWReference
SAME 1000.4 WTReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 116 mmReference
EmissionsStage IIReference
Rated Power (net)67.9 kWReference
Rated Power (gross)71.6 kWReference
Air cleanerdryReference
Rated RPM2300Reference
Torque367.5 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
15-speed partially synchronizedReference
45-speed three-speed power shiftReference
Typepartially synchronizedReference
Gears15 forward and reverseReference
Five synchronized gears in three ranges. Optional creeper range provides 20 speeds.Reference
TransmissionAgroshiftReference
Typethree-speed power shiftReference
Gears45 forward and reverseReference
Five synchronized gears in three ranges with three-speed power shift. Optional creeper range provides 60 speeds. Optional power shuttle.Reference
PTO & Hydraulics
Pump flow54.1 lpmReference
Rear lift4799 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase235 cmReference
Weight7385 to 8598 poundsReference
Front tire14.9R24Reference
4WD Rear tire18.4R34Reference
4WD Standard tires (ag)Front: 14.9R24. Rear: 18.4R34Reference
Length384 cmReference
2WD Width195 cmReference
4WD Width207 cmReference
2WD ROPS Weight3349 kgReference
4WD Cab Weight3900 kgReference
2WD Ground clearance44 cmReference
4WD Ground clearance47 cmReference
Front tread143 to 214 cmReference
Rear tread150 to 210 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
SAME Explorer3 95 Height
2WD ROPS269 cmReference
4WD ROPS272 cmReference
2WD Cab262 cmReference
4WD Cab264 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
