Tractor · 2003Unverified

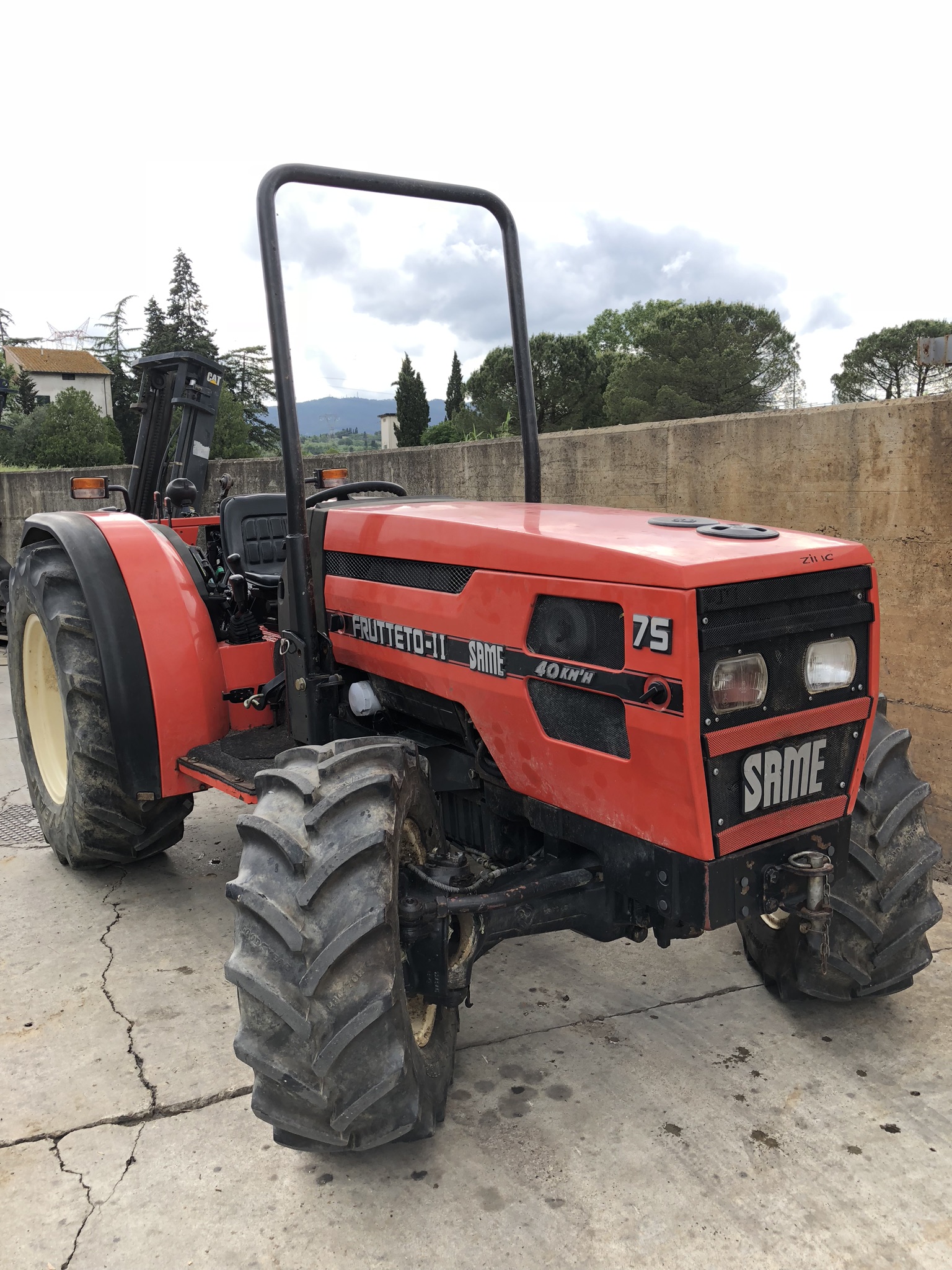

SAME Frutteto II 75
SAME Frutteto II 75 — Frutteto Series · 74 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
74 hp
Weight
5071 to 5468 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Two-post mid-mount folding ROPS. Cab optional with available air-conditioning.Reference
Engine
SAME 4.0L 4-cyl dieselReference
Fuel tank40.1 LReference
Fuel tank70.0 LReference
Engine (gross)55.2 kWReference
Engine (net)52.2 kWReference
SAME 1000.4 WReference
dieselReference
4-cylinderReference
air-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 115 mmReference
Rated Power (net)52.2 kWReference
Rated Power (gross)55.2 kWReference
Rated RPM2350Reference
Starter volts12Reference
Transmission
12-speed partially synchronizedReference
16-speed creeperReference
24-speed two-speed power shiftReference
32-speed creeperReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Four synchronized gears in three ranges.Reference
TypecreeperReference
Gears16 forward and reverseReference
Typetwo-speed power shiftReference
Gears24 forward and reverseReference
Four speed transmission in four ranges with two-speed power shift.Reference
Gears32 forward and reverseReference
PTO & Hydraulics
PTO (claimed)50.0 kWReference
Pressure182.7 barReference
Pump flow32.9 lpmReference
Pump flow60.6 lpmReference
Rear lift3000 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase208 cmReference
Weight5071 to 5468 poundsReference
Front tire7.50x18Reference
Rear tire14.9R24Reference
Standard tires (ag)Front: 7.50x18. Rear: 14.9R24Reference
Optional tires (ag)Front: 9.5x20. Rear: 14.9R28Reference
Optional tires (ag)Front: 10.5x18. Rear: 16.9R24Reference
Length355 cmReference
Width149 cmReference
2WD Weight2300 kgReference
4WD Weight2480 kgReference
Steering wheel123 cmReference
Electrical
GroundnegativeReference
ROPS Charging amps55Reference
Cab Charging amps65Reference
Battery volts12Reference
SAME Frutteto II 75 Height
Hood114 cmReference
ROPS209 cmReference
Cab214 cmReference
Speeds
With 380/70R24 rear tires.Reference
With 420/70R28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
