Tractor · Unverified

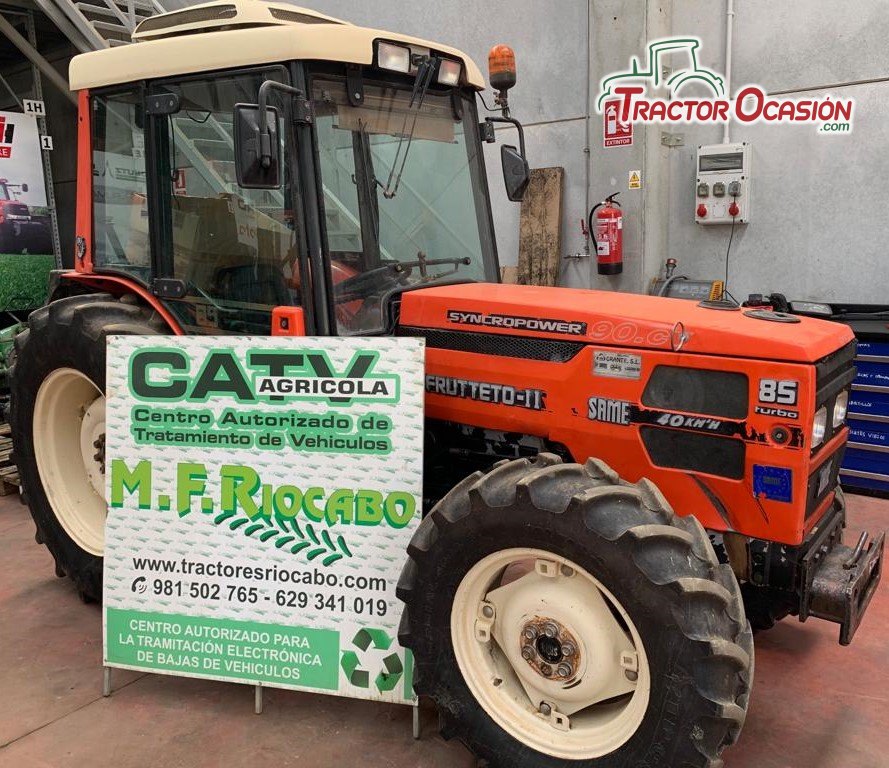

SAME Frutteto II 85
SAME Frutteto II 85 — Frutteto SeriesOrchard/Vineyard tractor · 78 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
78 hp
Weight
2472 kg
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Orchard/Vineyard tractorReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanicalReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab optional with air-conditioning.Reference
Engine
SAME 4.0L 4-cyl dieselReference
Fuel tank83.3 LReference
Engine63.4 kWReference
SAME 1000.4AReference
turbocharged dieselReference
4-cylinderReference
air-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 115 mmReference
Power63.4 kWReference
Rated RPM2350Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed partially synchronizedReference
16-speed creeperReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Clutchmechanical dry discReference
Four synchronized gears in three ranges.Reference
TypecreeperReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)58.2 kWReference
Pressure182.7 barReference
Valves1 to 3Reference
Pump flow32.9 lpmReference
Pump flow60.6 lpmReference
Rear TypeII/IReference
Rear lift (at ends)3000 kgReference
Rear PTOindependentReference
Clutchdry discReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase208 cmReference
Weight2472 kgReference
Front tire7.50x18Reference
Rear tire14.9x24Reference
Standard tires (ag)Front: 7.50x18. Rear: 14.9x24Reference
Length355 cmReference
Width149 cmReference
Cab Weight2472 kgReference
Clearance (front axle)27 cmReference
Steering wheel127 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps55Reference
Cab Charging amps65Reference
Battery volts12Reference
Battery AH100Reference
SAME Frutteto II 85 Height
Hood126 cmReference
Cab234 cmReference
Speeds
With 14.9R24 rear tires. Reverse speeds are 5% slower than forward.Reference
With 14.9R24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
