Tractor · 2003Unverified

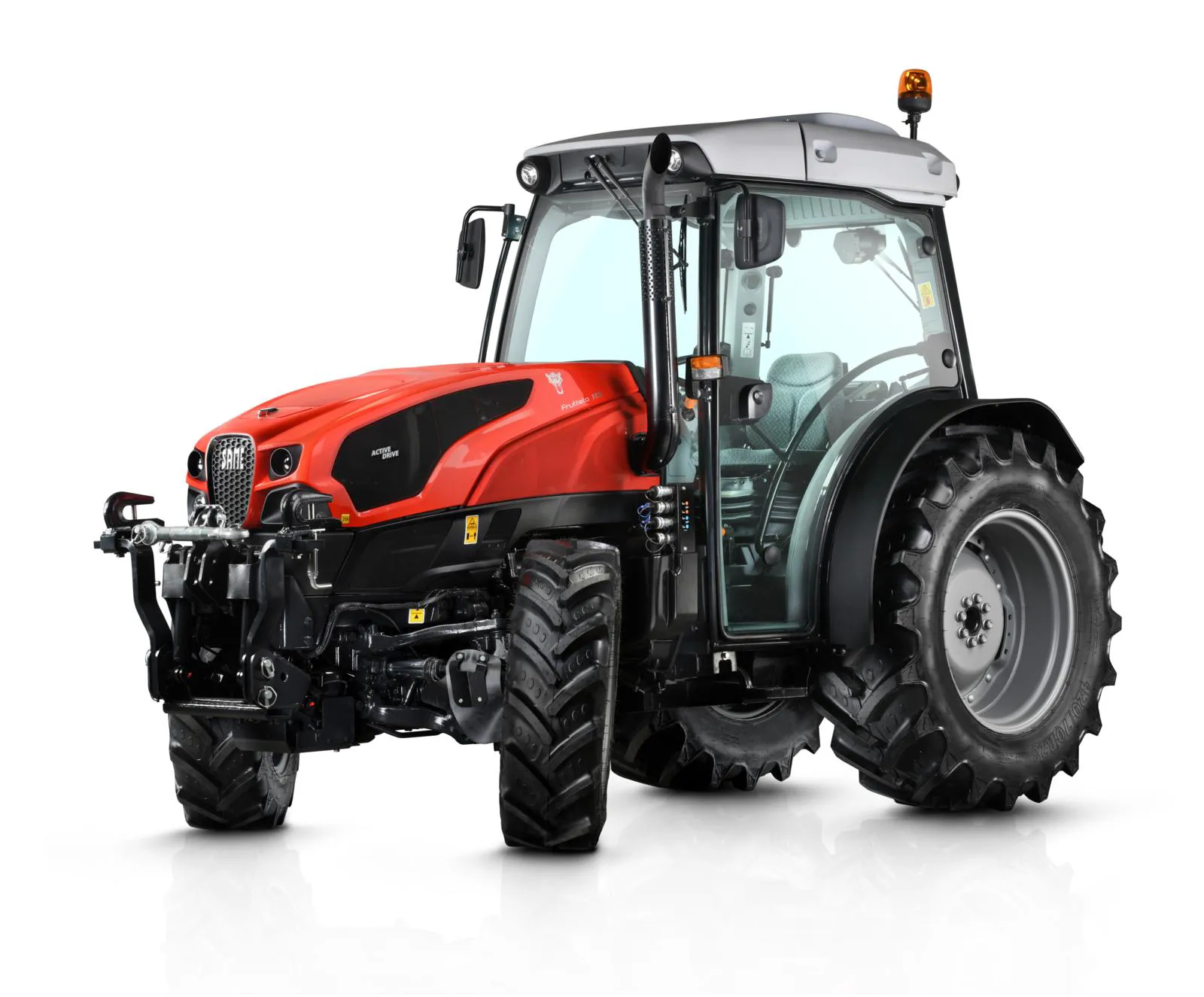

SAME Frutteto II 90
SAME Frutteto II 90 — Frutteto Series · 87 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
87 hp
Weight
2505 kg
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Orchard/Vineyard tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Two-post mid-mount folding ROPS. Cab optional with available air-conditioning.Reference
Engine
SAME 4.0L 4-cyl dieselReference
Fuel tank40.1 LReference
Fuel tank70.0 LReference
Engine (gross)64.9 kWReference
Engine (net)61.9 kWReference
SAME 1000.4 WTReference
turbocharged dieselReference
4-cylinderReference
air-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 115 mmReference
Rated Power (net)61.9 kWReference
Rated Power (gross)64.9 kWReference
Rated RPM2350Reference
Starter volts12Reference
Transmission
12-speed partially synchronizedReference
16-speed creeperReference
24-speed two-speed power shiftReference
32-speed creeperReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Four synchronized gears in three ranges.Reference
TypecreeperReference
Gears16 forward and reverseReference
Typetwo-speed power shiftReference
Gears24 forward and reverseReference
Four speed transmission in four ranges with two-speed power shift.Reference
Gears32 forward and reverseReference
PTO & Hydraulics
Pump flow32.9 lpmReference
Rear lift3000 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase208 cmReference
Weight2505 kgReference
Rear tire380/70R24Reference
Ag rear380/70R24Reference
Length319 cmReference
Steering wheel123 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
SAME Frutteto II 90 Height
Hood114 cmReference
ROPS209 cmReference
Cab214 cmReference
Speeds
With 380/70R24 rear tires.Reference
With 420/70R28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
