Tractor · 1983Unverified

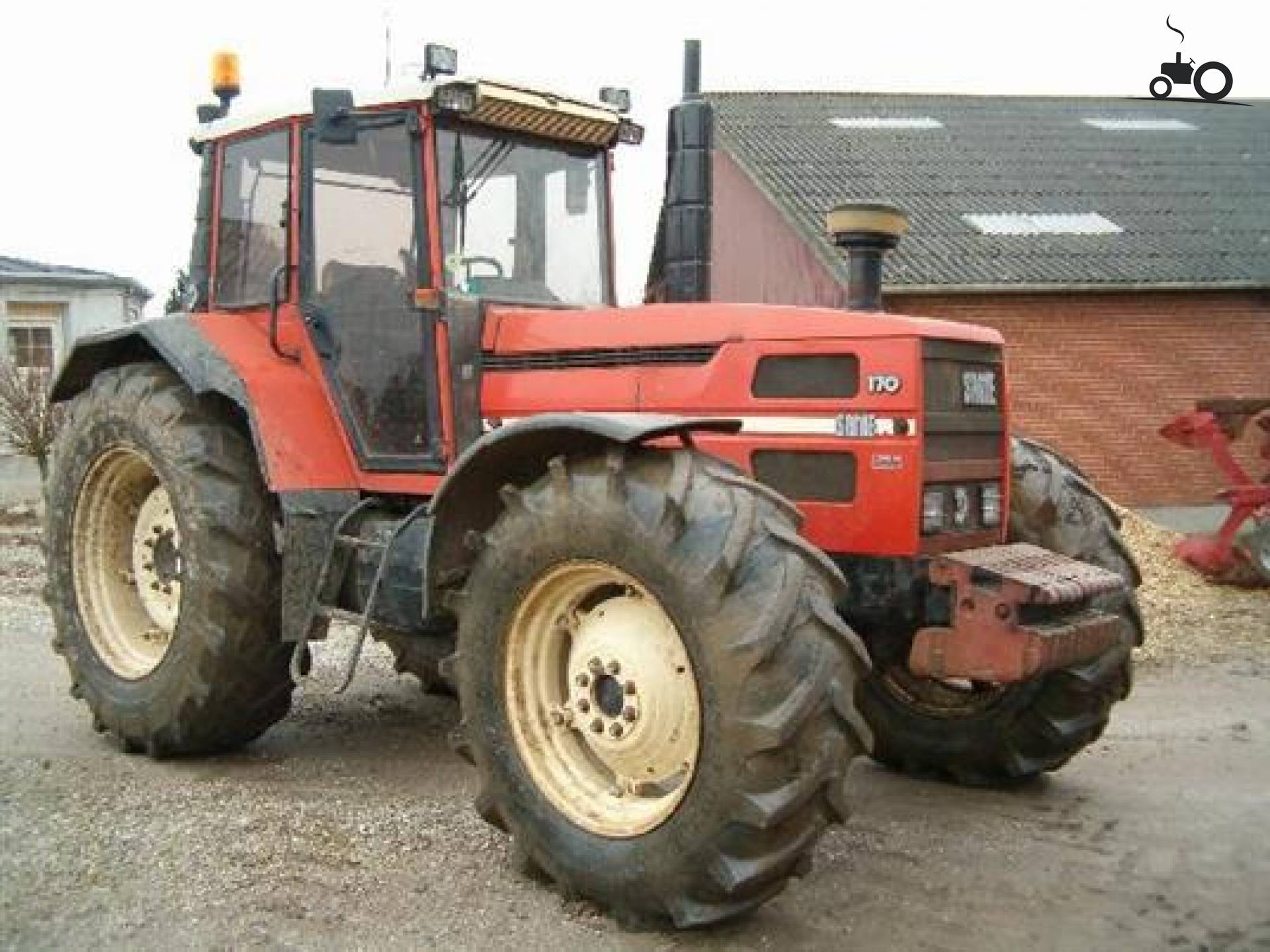

SAME Galaxy 170
SAME Galaxy 170 · 170 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
170 hp
Weight
6075 kg
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Four-wheel driveReference
Engine
SAME 6.2L 6-cyl dieselReference
Fuel tank240.0 LReference
Engine126.8 kWReference
SAMEReference
turbocharged dieselReference
6-cylinderReference
Displacement6.2 LReference
Bore/Stroke105 x 120 mmReference
Power126.8 kWReference
Rated RPM2200Reference
Transmission
27-speedReference
24-speedReference
Gears27 forward and 9 reverseReference
Gears24 forward and 8 reverseReference
PTO & Hydraulics
Pump flow64.0 lpmReference
Rear lift7001 kgReference
Rear PTO Type1000Reference
Dimensions
Wheelbase292 cmReference
Weight6075 kgReference
Front tire16.9-30Reference
Rear tire20.8-38Reference
Ag front16.9-30Reference
Ag rear20.8-38Reference
Length473 cmReference
Height288 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
