Tractor · 1997Unverified

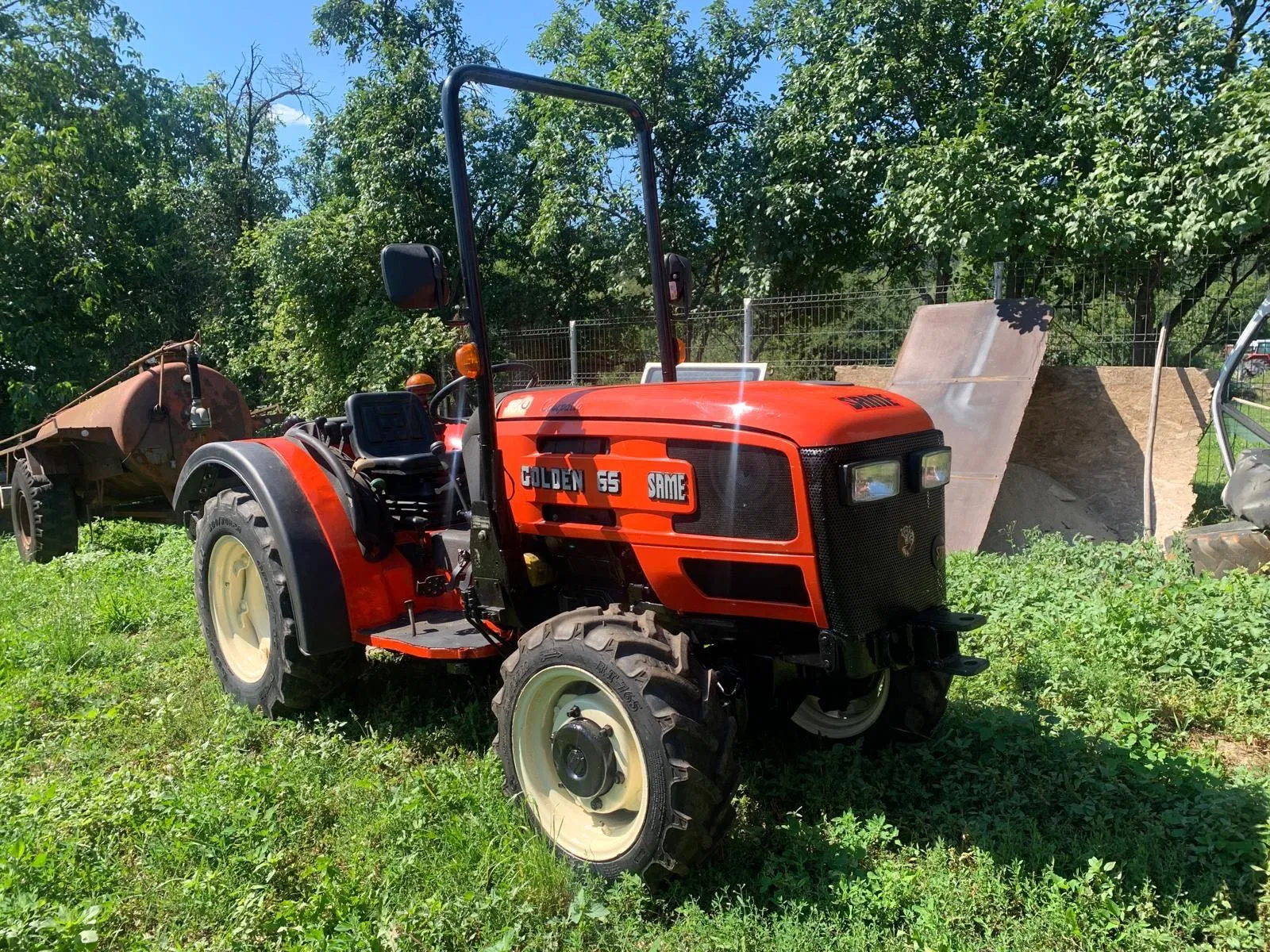

SAME Golden 65
SAME Golden 65 — Golden Series · 66 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
66 hp
Weight
4409 to 5291 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Power steeringReference
Two-post folding ROPS. Cab optional with available air-conditioning.Reference
Engine
SAME 3.0L 3-cyl dieselReference
Fuel tank54.9 LReference
Fuel tank87.1 LReference
Engine49.0 kWReference
SAME 1000.3ATReference
turbocharged dieselReference
3-cylinderReference
air-cooledReference
Displacement3.0 LReference
Bore/Stroke105 x 116 mmReference
Power49.0 kWReference
Rated RPM2350Reference
Torque241.1 NmReference
Torque RPM1450Reference
Transmission
16-speed synchronizedReference
30-speedReference
45-speedReference
TypesynchronizedReference
Gears16 forward and 8 reverseReference
Four gears in two ranges with additional high-low.Reference
Gears30 forward and 15 reverseReference
Five gears in three ranges with two-speed shift.Reference
TransmissionAgroshiftReference
Gears45 forward and reverseReference
Five gears in three ranges with three-speed shift.Reference
PTO & Hydraulics
Pump flow35.0 lpmReference
Pump flow46.9 lpmReference
Pump flow54.1 lpmReference
Rear lift2600 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Rear PTO Type540/540E/1000Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase192 cmReference
Weight4409 to 5291 poundsReference
Front tire7.00-12Reference
2WD Rear tire360/70R24Reference
2WD Standard tires (ag)Front: 7.00-12. Rear: 360/70R24Reference
4WD Standard tires (ag)Front: 240/70R16. Rear: 360/70R24Reference
2WD Optional tires (ag)Front: 6.50-16. Rear: 12.4R24Reference
2WD Optional tires (ag)Front: 6.50-16. Rear: 12.4R28Reference
2WD Optional tires (ag)Front: 6.50-16. Rear: 380/70R24Reference
2WD Optional tires (ag)Front: 7.00-12. Rear: 380/70R20Reference
4WD Optional tires (ag)Front: 210/80R16. Rear: 12.4R24Reference
4WD Optional tires (ag)Front: 7.50-16. Rear: 12.4R28Reference
4WD Optional tires (ag)Front: 260/70R16. Rear: 380/70R24Reference
4WD Optional tires (ag)Front: 200/70R16. Rear: 380/70R20Reference
4WD Optional tires (ag)Front: 240/70R16. Rear: 380/70R20Reference
4WD Optional tires (ag)Front: 280/60R15.5. Rear: 380/70R20Reference
4WD Optional tires (ag)Front: 210/80R16. Rear: 11.2R24Reference
4WD Optional tires (ag)Front: 240/70R16. Rear: 320/70R24Reference
Length296 cmReference
Width119 cmReference
Width106 cmReference
Ground clearance23 cmReference
Front tread98/102 cmReference
Rear tread87 to 0 cmReference
2WD ROPS1999 kgReference
4WD ROPS2199 kgReference
2WD Cab2199 kgReference
4WD Cab2399 kgReference
Steering wheel122 cmReference
SAME Golden 65 Height
Hood117 cmReference
Cab209 cmReference
Speeds
With 380/70R24 rear tires.Reference
With 12.4R28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
