Tractor · 1997Unverified

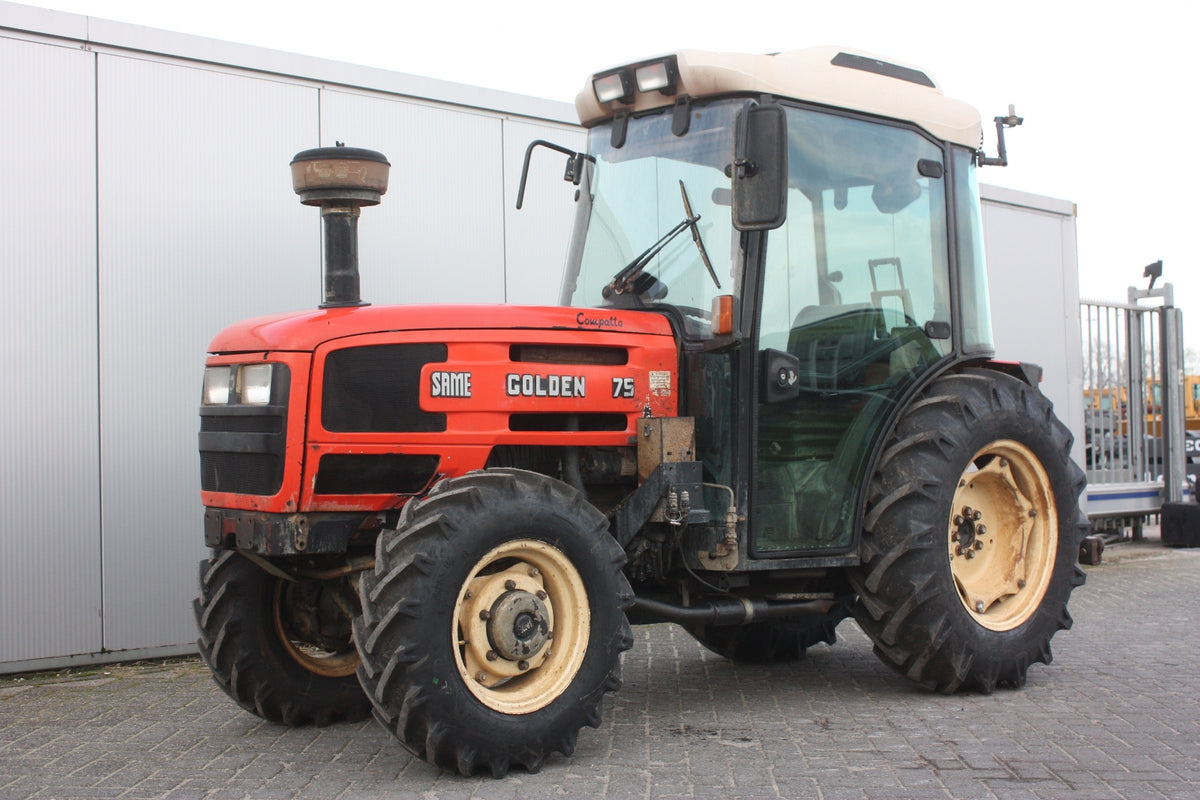

SAME Golden 75

Name: SAME Golden 75
Brand: SAME

SAME Golden 75 — Golden Series · 74 hp. Reference specifications; pending source verification.

The SAME Golden 75 is a tractor with an engine rating of 74 hp, a mid-range power figure for its class. Produced from 1997 to 2003, this model features a 4-cylinder diesel air-cooled engine and a four-wheel drive system with a 16-speed gearbox. Its operating weight ranges from 4850 to 5622 pounds. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

74 hp

Weight

4850 to 5622 pounds

Catalogue coverage

Variants represented

Richest spec table

80 rows

Recorded power

74 hp

Transmissions

16-speed synchronized

Production years

1997-2003

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSAMEReference

Orchard/Vineyard tractorReference

Two- or four-wheel driveReference

Power steeringReference

Two-post folding ROPS. Cab optional with available air-conditioning.Reference

Engine

SAME 4.0L 4-cyl dieselReference

Fuel tank54.9 LReference

Fuel tank87.1 LReference

Engine55.0 kWReference

SAME 1000.4AReference

dieselReference

4-cylinderReference

air-cooledReference

Displacement4.0 LReference

Bore/Stroke105 x 116 mmReference

Power55.0 kWReference

Rated RPM2350Reference

Torque262.0 NmReference

Torque RPM1450Reference

Transmission

16-speed synchronizedReference

24-speed creeperReference

30-speedReference

45-speedReference

TypesynchronizedReference

Gears16 forward and 8 reverseReference

Four gears in two ranges with additional high-low.Reference

TypecreeperReference

Gears24 forward and 12 reverseReference

Optional creeper ranges for the base transmission.Reference

Gears30 forward and 15 reverseReference

Five gears in three ranges with two-speed shift.Reference

TransmissionAgroshiftReference

Gears45 forward and reverseReference

Five gears in three ranges with three-speed shift.Reference

PTO & Hydraulics

Pump flow35.0 lpmReference

Pump flow46.9 lpmReference

Pump flow54.1 lpmReference

Rear lift2600 kgReference

Rear PTOindependentReference

Rear PTO Type540/540EReference

Rear PTO Type540/540E/1000Reference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase205 cmReference

Weight4850 to 5622 poundsReference

Front tire6.50/16Reference

2WD Rear tire380/70R24Reference

2WD Standard tires (ag)Front: 6.50/16. Rear: 380/70R24Reference

4WD Standard tires (ag)Front: 260/70R16. Rear: 380/70R24Reference

2WD Optional tires (ag)Front: 7.00-12. Rear: 360/70R24Reference

2WD Optional tires (ag)Front: 6.50-16. Rear: 12.4R24Reference

2WD Optional tires (ag)Front: 6.50-16. Rear: 12.4R28Reference

2WD Optional tires (ag)Front: 6.50-16. Rear: 380/70R24Reference

2WD Optional tires (ag)Front: 7.00-12. Rear: 380/70R20Reference

2WD Optional tires (ag)Front: 7.50-16. Rear: 380/70R28Reference

2WD Optional tires (ag)Front: 7.50-16. Rear: 420/70R24Reference

4WD 210/80R16 Optional tires (ag)Front: 240/70R16. Rear: 360/70R24Reference

4WD Optional tires (ag)Front: 7.50-16. Rear: 12.4R28Reference

4WD Optional tires (ag)Front: 260/70R16. Rear: 380/70R24Reference

4WD Optional tires (ag)Front: 200/70R16. Rear: 380/70R20Reference

4WD Optional tires (ag)Front: 240/70R16. Rear: 380/70R20Reference

4WD Optional tires (ag)Front: 280/60R15.5. Rear: 380/70R20Reference

4WD Optional tires (ag)Front: 210/80R16. Rear: 11.2R24Reference

4WD Optional tires (ag)Front: 240/70R16. Rear: 320/70R24Reference

4WD Optional tires (ag)Front: 280/70R18. Rear: 380/70R28Reference

4WD Optional tires (ag)Front: 280/70R16. Rear: 420/70R24Reference

Length310 cmReference

Width119 cmReference

Width106 cmReference

Ground clearance23 cmReference

Front tread98/102 cmReference

Rear tread87 to 0 cmReference

2WD ROPS2199 kgReference

4WD ROPS2350 kgReference

2WD Cab2399 kgReference

4WD Cab2550 kgReference

Steering wheel122 cmReference

SAME Golden 75 Height

Hood117 cmReference

Cab209 cmReference

Speeds

With 380/70R24 rear tires.Reference

With 12.4R28 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
