Tractor · 1982Unverified

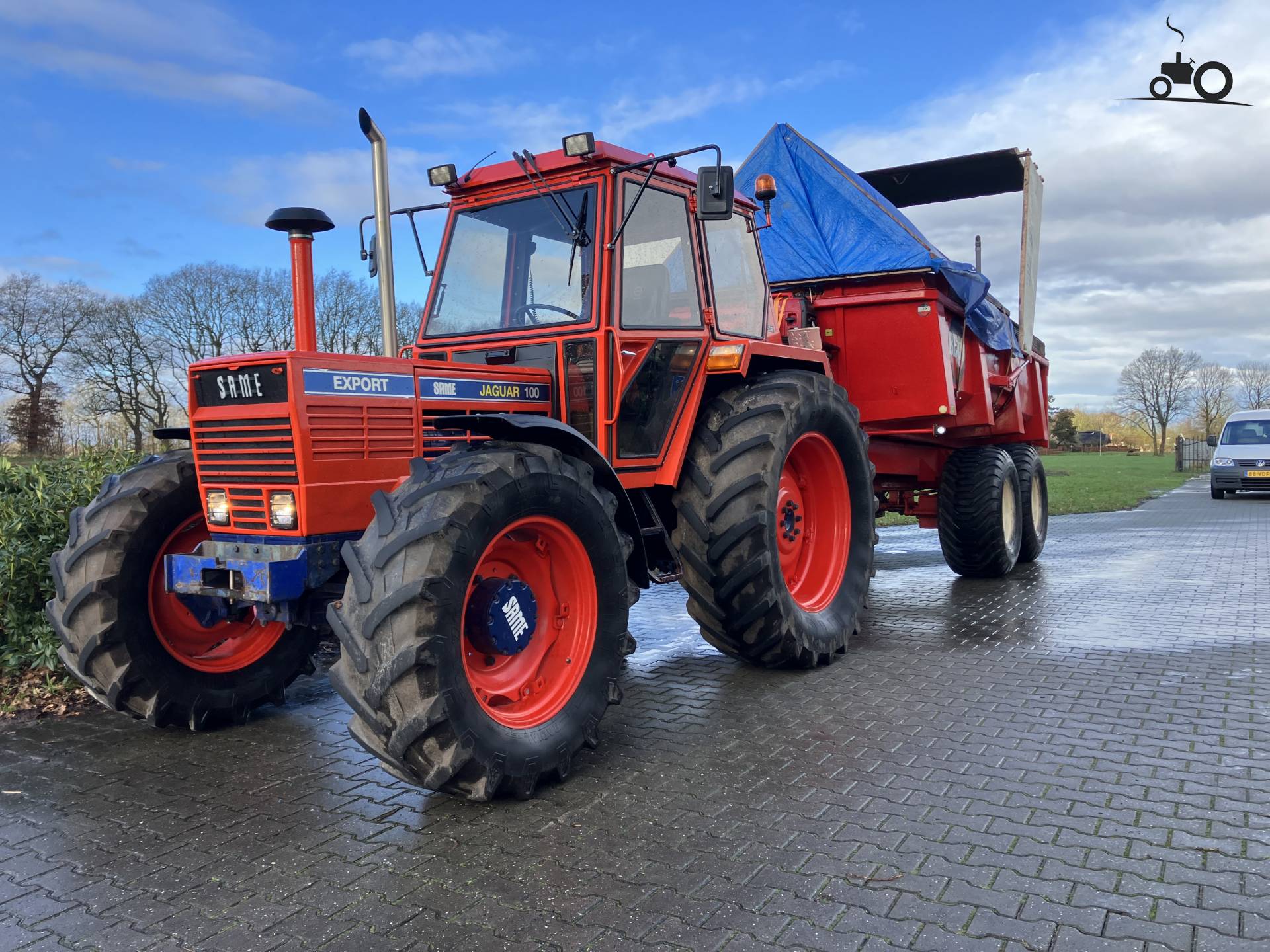

SAME Jaguar 100
SAME Jaguar 100 — Row-Crop tractor · 98 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
98 hp
Weight
7590 to 8668 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS. Cab optional with available air-conditioning.Reference
Engine
SAME 5.2L 5-cyl dieselReference
Fuel tank120.0 LReference
Engine73.1 kWReference
SAME 1055 PReference
dieselReference
5-cylinderReference
air-cooledReference
Displacement5.2 LReference
Bore/Stroke105 x 120 mmReference
Power73.1 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression17:1Reference
Rated RPM2200Reference
Starter volts12Reference
Transmission
12-speed synchronizedReference
20-speedReference
TypesynchronizedReference
Gears12 forward and 3 reverseReference
Clutchdry discReference
Gears20 forward and 6 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure171.1 barReference
Pump flow35.0 lpmReference
Pump flow60.0 lpmReference
Controlposition and draft controlReference
Rear lift4240 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
2WD Wheelbase252 cmReference
4WD Wheelbase252 cmReference
Weight7590 to 8668 poundsReference
Front tire7.50-20Reference
2WD Rear tire18.4/15-34Reference
2WD Standard tires (ag)Front: 7.50-20. Rear: 18.4/15-34Reference
4WD Standard tires (ag)Front: 16.9/14-24. Rear: 18.4/15-34Reference
2WD Length409 cmReference
4WD Length421 cmReference
Width210 cmReference
Ground clearance45 cmReference
2WD Front tread169 to 2298 cmReference
4WD Front tread169 to 197 cmReference
Rear tread163 to 238 cmReference
2WD ROPS3442 kgReference
4WD ROPS3772 kgReference
2WD Cab3602 kgReference
4WD Cab3931 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
SAME Jaguar 100 Height
Hood163 cmReference
ROPS271 cmReference
Cab278 cmReference
Speeds
With 18.4/15-34 rear tires and 25 kph option.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
