Tractor · 1979Unverified

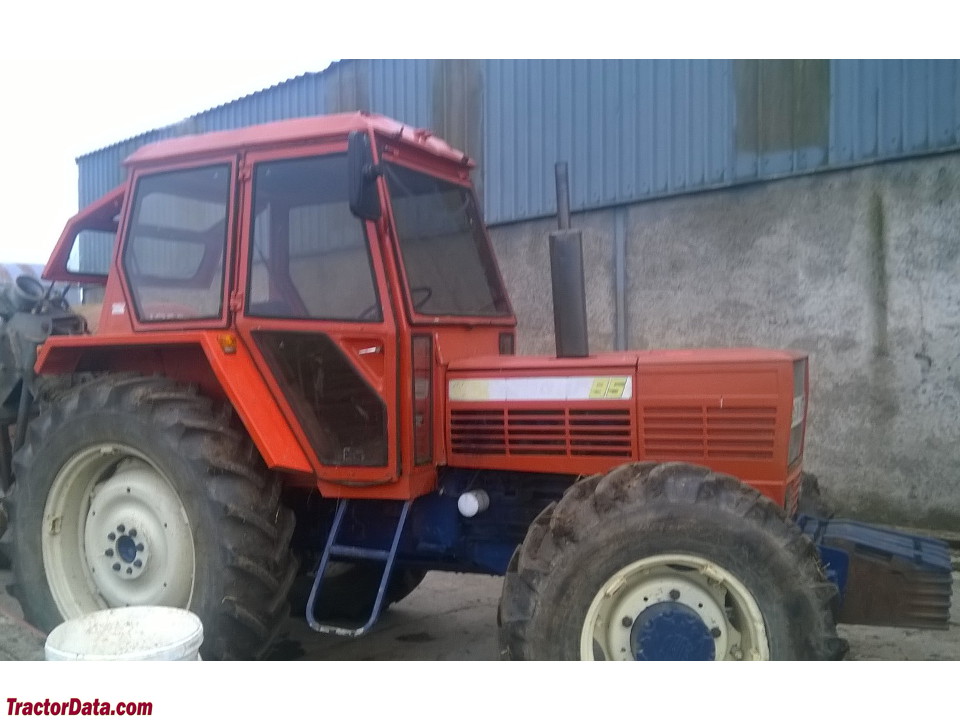

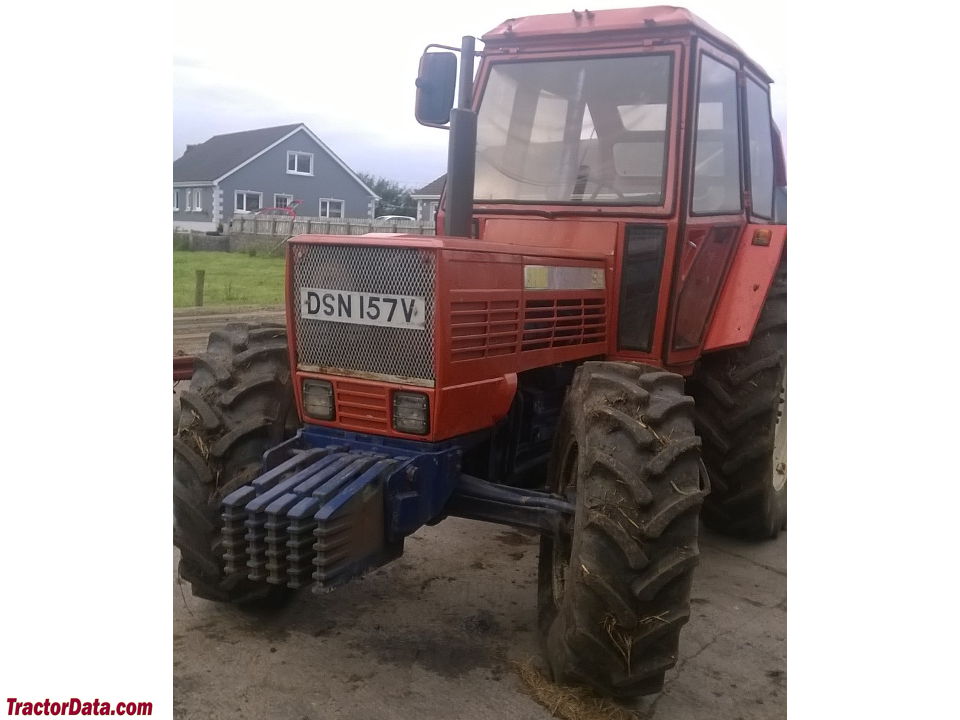

SAME Jaguar 95
SAME Jaguar 95 — Row-Crop tractor · 94 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
94 hp
Weight
7960 to 8687 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Engine
SAME 5.2L 5-cyl dieselReference
Fuel tank120.0 LReference
Engine70.1 kWReference
SAMEReference
dieselReference
5-cylinderReference
Displacement5.2 LReference
Bore/Stroke105 x 120 mmReference
Power70.1 kWReference
Rated RPM2200Reference
Transmission
12-speedReference
Gears12 forward and 3 reverseReference
PTO & Hydraulics
Pump flow34.8 lpmReference
Rear lift4760 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase252 cmReference
Weight7960 to 8687 poundsReference
Front tire7.50-20Reference
Rear tire18.4-34Reference
Ag front7.50-20Reference
Ag front16.9-24 (4WD)Reference
Ag rear18.4-34Reference
Length421 cmReference
Height278 cmReference
Weight3610 kgReference
Weight3940 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
