Tractor · 2004Unverified

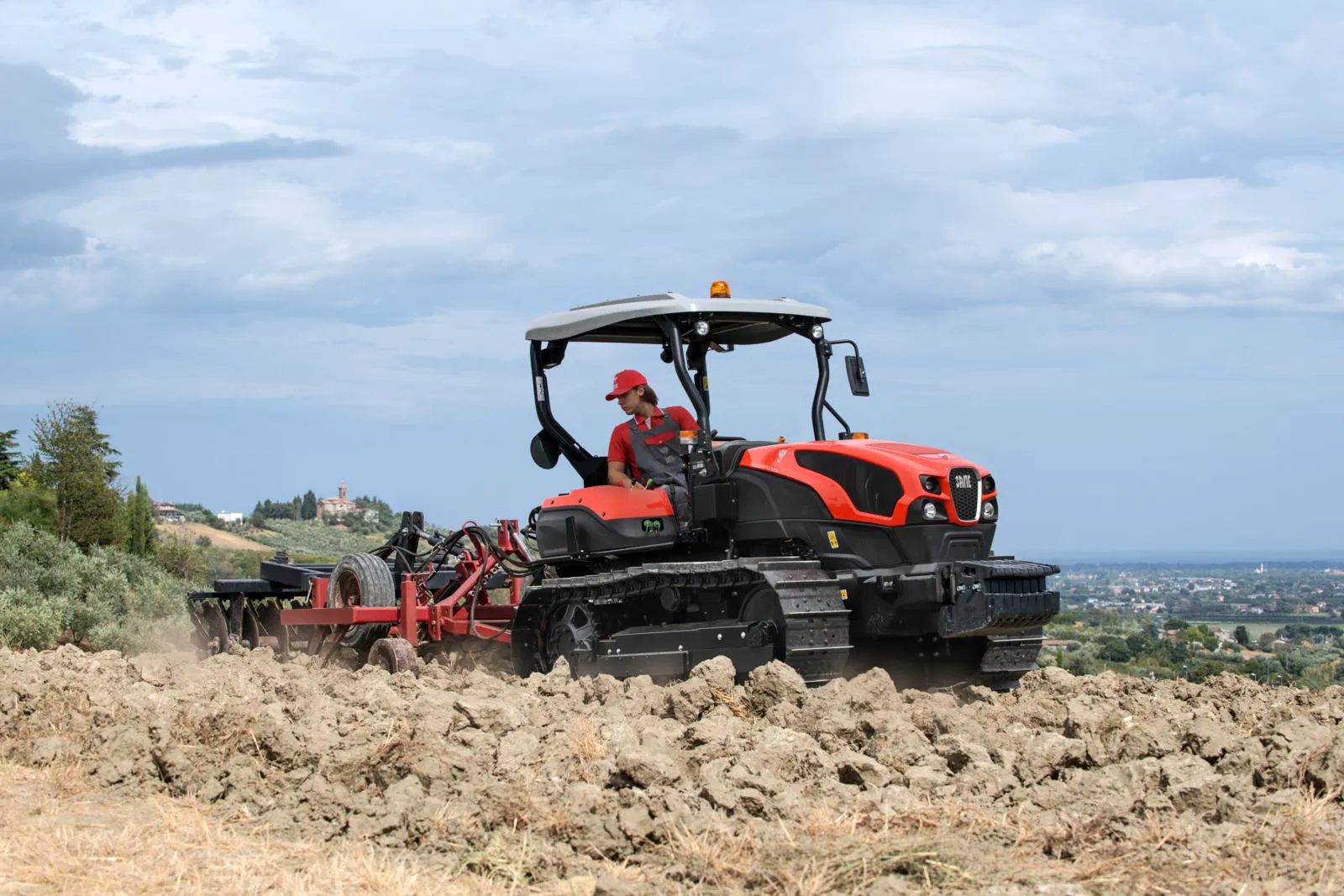

SAME Krypton 105
SAME Krypton 105 — Krypton Series · 101 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
101 hp
Weight
5200 kg
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Four-post ROPS.Reference
PTO & Hydraulics
SAME 4.0L 4-cyl dieselReference
Fuel tank129.8 LReference
16-speed shuttleReference
16-speed creeperReference
Engine (gross)75.0 kWReference
Engine (net)71.5 kWReference
Pump flow50.0 lpmReference
Rear lift3000 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/540E/1000Reference
Width40 cmReference
Length on ground417 cmReference
Area on ground3.3 m²Reference
Width44 cmReference
Area on ground3.8 m²Reference
Dimensions
Wheelbase165 cmReference
Weight5200 kgReference
15.75-inch tracksReference
Length341 cmReference
Width180 cmReference
Ground clearance40 cmReference
Gauge135 cmReference
Engine
SAME 1000.4 WTReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 116 mmReference
EmissionsStage IIReference
Rated Power (net)71.5 kWReference
Rated Power (gross)75.0 kWReference
Air cleanerdryReference
Rated RPM2500Reference
Transmission
16-speed shuttleReference
16-speed creeperReference
TypeshuttleReference
Gears16 forward and reverseReference
Four synchronized gears in two ranges with under-drive and mechanical shuttle.Reference
TypecreeperReference
Four synchronized gears in two ranges with mechanical shuttle and creeper.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
