Tractor · 2005Unverified

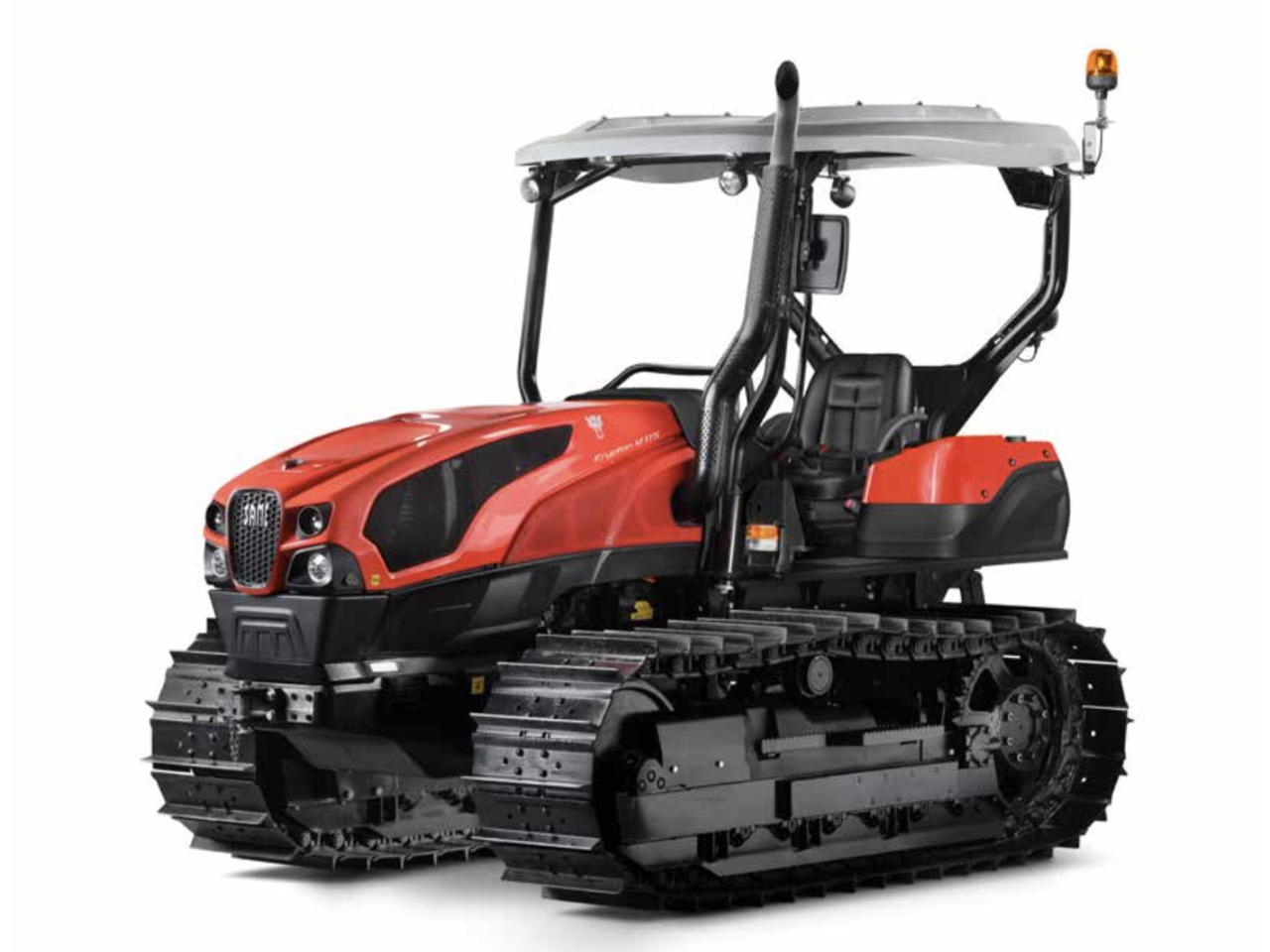

SAME Krypton F 100
SAME Krypton F 100 — Krypton Series · 94 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
94 hp
Weight
4150 kg
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Two-post mid-mount folding ROPS.Reference
PTO & Hydraulics
SAME 4.0L 4-cyl dieselReference
Fuel tank74.9 LReference
16-speed shuttleReference
16-speed creeperReference
Engine (gross)69.9 kWReference
Engine (net)66.0 kWReference
Pump flow56.0 lpmReference
Total flow85.2 lpmReference
Rear lift3000 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/540EReference
Width36 cmReference
Length on ground164 cmReference
Area on ground1.2 m²Reference
Width44 cmReference
Area on ground1.5 m²Reference
Dimensions
Wheelbase165 cmReference
Weight4150 kgReference
14.2-inch tracksReference
Length329 cmReference
Height143 cmReference
Gauge109 cmReference
Gauge130 cmReference
Engine
SAME 1000.4 WTReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 116 mmReference
EmissionsStage IIReference
Rated Power (net)66.0 kWReference
Rated Power (gross)69.9 kWReference
Air cleanerdryReference
Rated RPM2200Reference
Torque377.0 NmReference
Torque RPM1400Reference
Transmission
16-speed shuttleReference
16-speed creeperReference
TypeshuttleReference
Gears16 forward and reverseReference
Four synchronized gears in two ranges with under-drive and mechanical shuttle.Reference
TypecreeperReference
Four synchronized gears in two ranges with mechanical shuttle and creeper.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
