Tractor · 1986Unverified

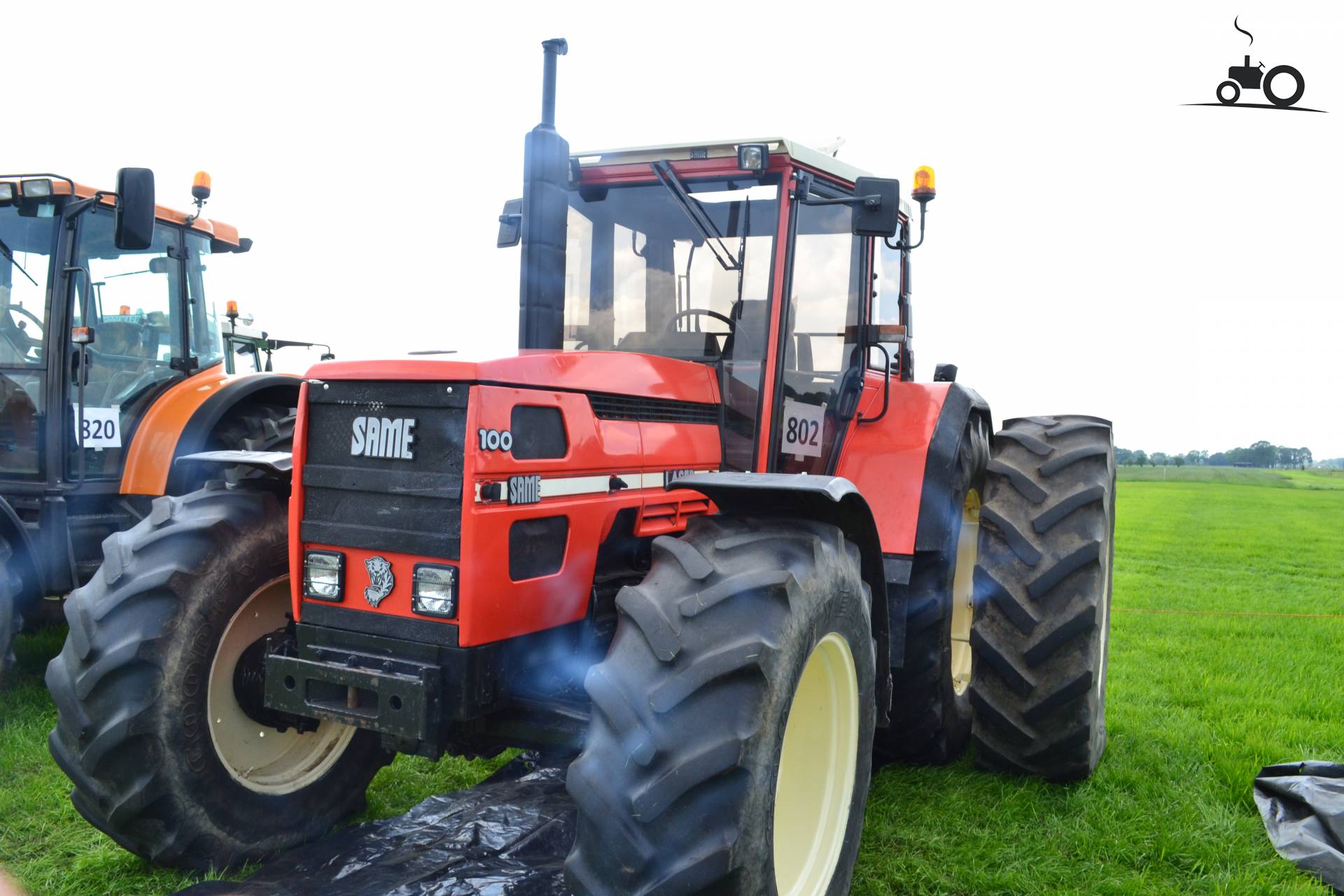

SAME Laser 100
SAME Laser 100 — Laser Series · 98 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
98 hp
Weight
4460 kg
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Row-Crop tractorReference
Four-wheel driveReference
Engine
SAME 5.2L 5-cyl dieselReference
Fuel tank129.8 LReference
Engine73.1 kWReference
SAMEReference
dieselReference
5-cylinderReference
air-cooledReference
Displacement5.2 LReference
Bore/Stroke105 x 120 mmReference
Power73.1 kWReference
Rated RPM2200Reference
Starter volts12Reference
Transmission
24-speedReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Pump flow64.0 lpmReference
Rear lift4600 kgReference
Rear PTO Type540, 1000Reference
Dimensions
Wheelbase259 cmReference
Weight4460 kgReference
Front tire16.9-24Reference
Rear tire18.4-34Reference
Ag front16.9-24Reference
Ag rear18.4-34Reference
Length427 cmReference
Height270 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
