Tractor · 1983Unverified

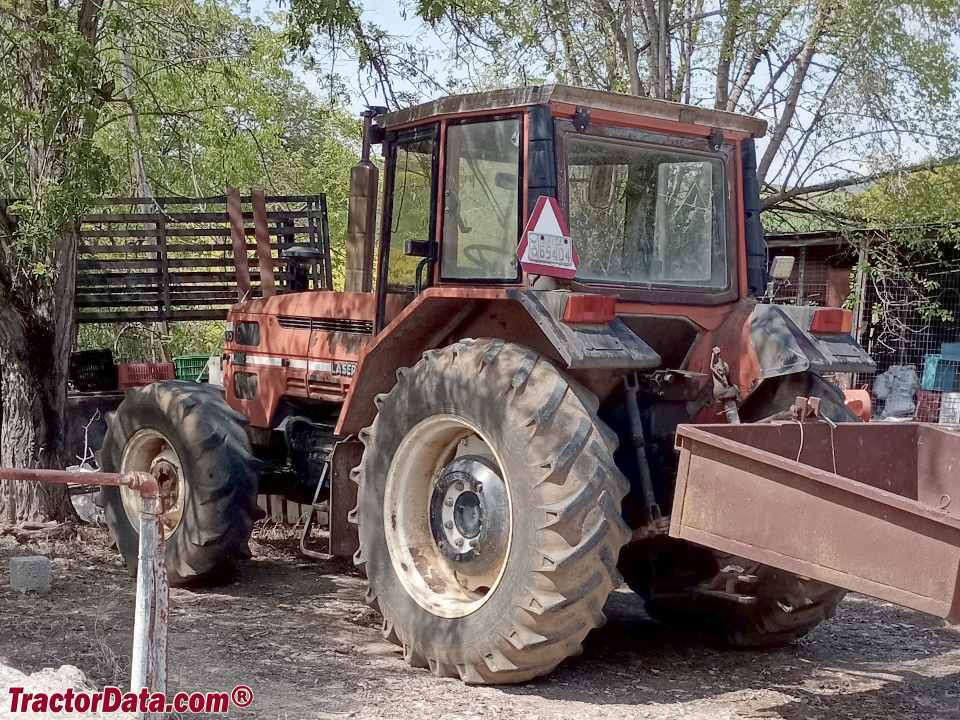

SAME Laser 110
SAME Laser 110 — Laser Series · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Weight
9127 to 10758 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with available air-conditioning.Reference
Engine
SAME 5.7L 6-cyl dieselReference
Fuel tank230.1 LReference
Engine82.0 kWReference
SAME 1006Reference
dieselReference
6-cylinderReference
air-cooledReference
Displacement5.7 LReference
Bore/Stroke100 x 120 mmReference
Power82.0 kWReference
Rated RPM2200Reference
Starter volts12Reference
Transmission
12-speed synchronizedReference
24-speed two-speed power shiftReference
20-speed creeperReference
TypesynchronizedReference
Gears12 forward and 3 reverseReference
Four gears, plus reverse, in three ranges.Reference
Typetwo-speed power shiftReference
Gears24 forward and 12 reverseReference
Four gears in three ranges with shuttle and two-speed power shift.Reference
TypecreeperReference
Gears20 forward and 12 reverseReference
PTO & Hydraulics
Pump flow64.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4600 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
2WD Wheelbase276 cmReference
4WD Wheelbase275 cmReference
Weight9127 to 10758 poundsReference
Front tire10.00-16Reference
2WD Rear tire18.4/15-34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4/15-34Reference
4WD Standard tires (ag)Front: 16.9/14-24. Rear: 18.4/15-34Reference
2WD Length403 cmReference
4WD Length422 cmReference
Width212 cmReference
2WD Ground clearance59 cmReference
4WD Ground clearance44 cmReference
2WD Front tread150 to 199 cmReference
4WD Front tread160 to 189 cmReference
Rear tread165 to 226 cmReference
2WD ROPS4140 kgReference
2WD Cab4339 kgReference
4WD ROPS4680 kgReference
4WD Cab4879 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
SAME Laser 110 Height
2WD Hood177 cmReference
4WD Hood176 cmReference
ROPS265 cmReference
Cab269 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
