Tractor · 1983Unverified

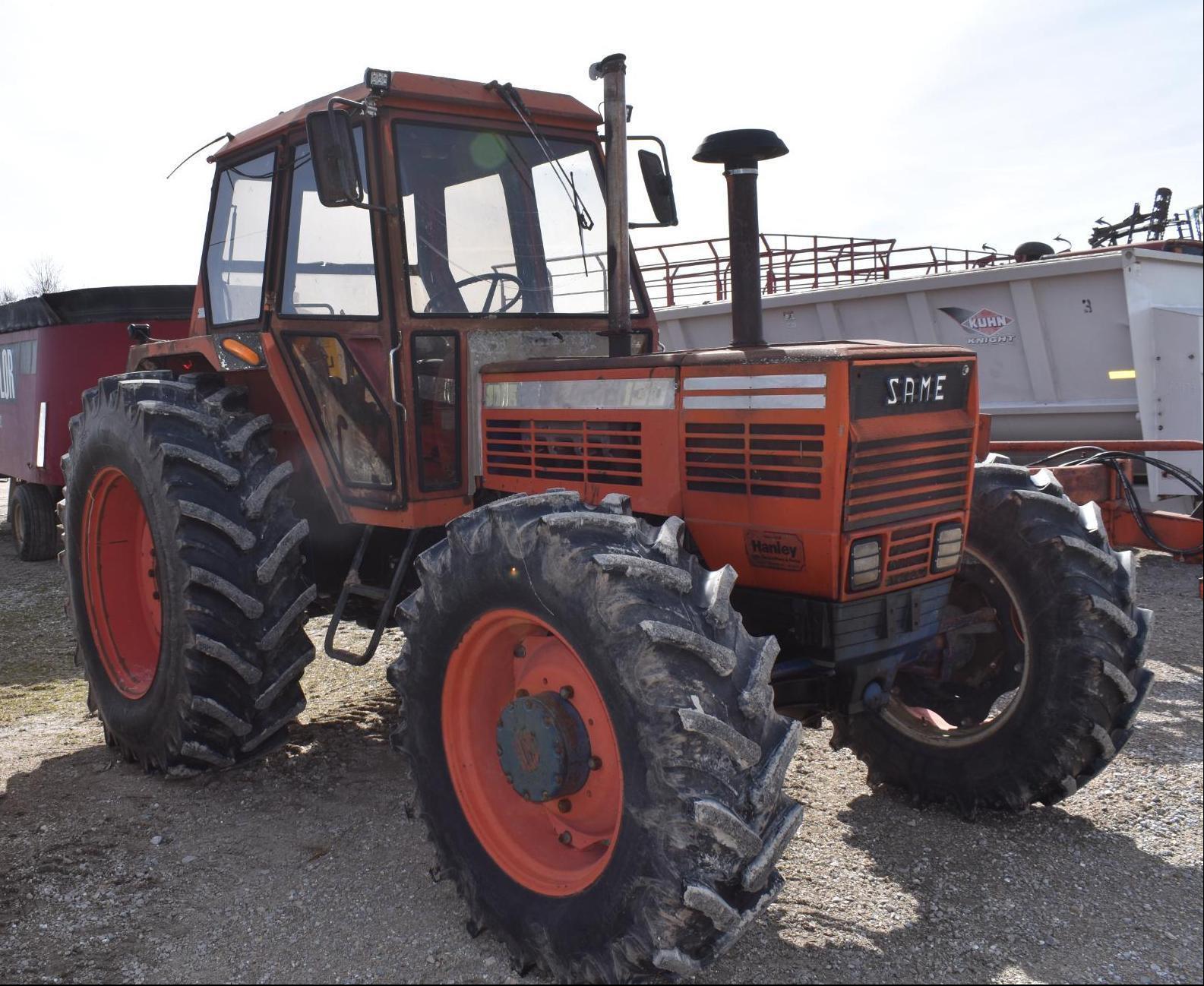

SAME Laser 130
SAME Laser 130 — Laser Series · 125 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
125 hp
Weight
10957 to 11398 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Row-Crop tractorReference
Four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with available air-conditioning.Reference
Engine
SAME 6.2L 6-cyl dieselReference
Fuel tank230.1 LReference
Engine93.2 kWReference
SAME 1056 PReference
dieselReference
6-cylinderReference
air-cooledReference
Displacement6.2 LReference
Bore/Stroke105 x 120 mmReference
Power93.2 kWReference
Rated RPM2260Reference
Starter volts12Reference
Transmission
24-speed two-speed power shiftReference
16-speed creeperReference
Typetwo-speed power shiftReference
Gears24 forward and 12 reverseReference
Four gears in three ranges with shuttle and two-speed power shift.Reference
TypecreeperReference
Gears16 forward and 12 reverseReference
PTO & Hydraulics
Pump flow64.0 lpmReference
Rear TypeIII/IIReference
Controlposition and draft controlReference
Rear lift5401 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase275 cmReference
Weight10957 to 11398 poundsReference
Front tire14.9/13-30Reference
Rear tire18.4/15-38Reference
Standard tires (ag)Front: 14.9/13-30. Rear: 18.4/15-38Reference
Optional tires (ag)Front: 16.9/14-30. Rear: 20.8-38Reference
Length432 cmReference
Width216 cmReference
ROPS Weight4970 kgReference
Cab Weight5170 kgReference
Ground clearance50 cmReference
Front tread169 to 199 cmReference
Rear tread169 to 219 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
SAME Laser 130 Height
Hood183 cmReference
ROPS271 cmReference
Cab275 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
