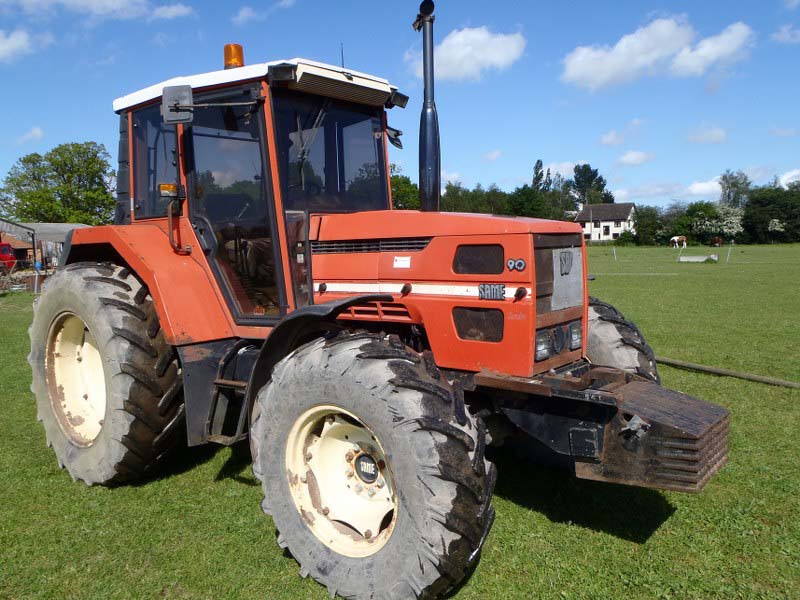

The SAME Laser 90T is a tractor with an approximate engine power output of 93 hp, categorised as mid-range for its class. Production of this model spanned from 1985 to 1991. It features a 4-cylinder turbocharged diesel engine, coupled with mechanical front-wheel drive and a 12-speed gearbox, and has an operating weight of 3860 kg. The SAME Laser 90T is suitable for operations covering 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
93 hp
Weight
3860 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
93 hp
Recorded weight
3860 kg
Transmissions
12-speed
Production years
1985-1991
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Engine
SAME 4.2L 4-cyl dieselReference
Fuel tank129.8 LReference
Engine69.4 kWReference
SAMEReference
turbo dieselReference
4-cylinderReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power69.4 kWReference
Rated RPM2270Reference
Transmission
12-speedReference
24-speedReference
Gears12 forward and reverseReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Pump flow64.0 lpmReference
Rear lift4600 kgReference
Rear PTO Type540, 1000Reference
Dimensions
Wheelbase246 cmReference
Weight3860 kgReference
Front tire7.50-18Reference
Rear tire16.9-34Reference
Ag front7.50-18Reference
Ag front14.9-24 (4WD)Reference
Ag rear16.9-34Reference
Length423 cmReference
Height270 cmReference
Weight3860 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
