Tractor · 1982Unverified

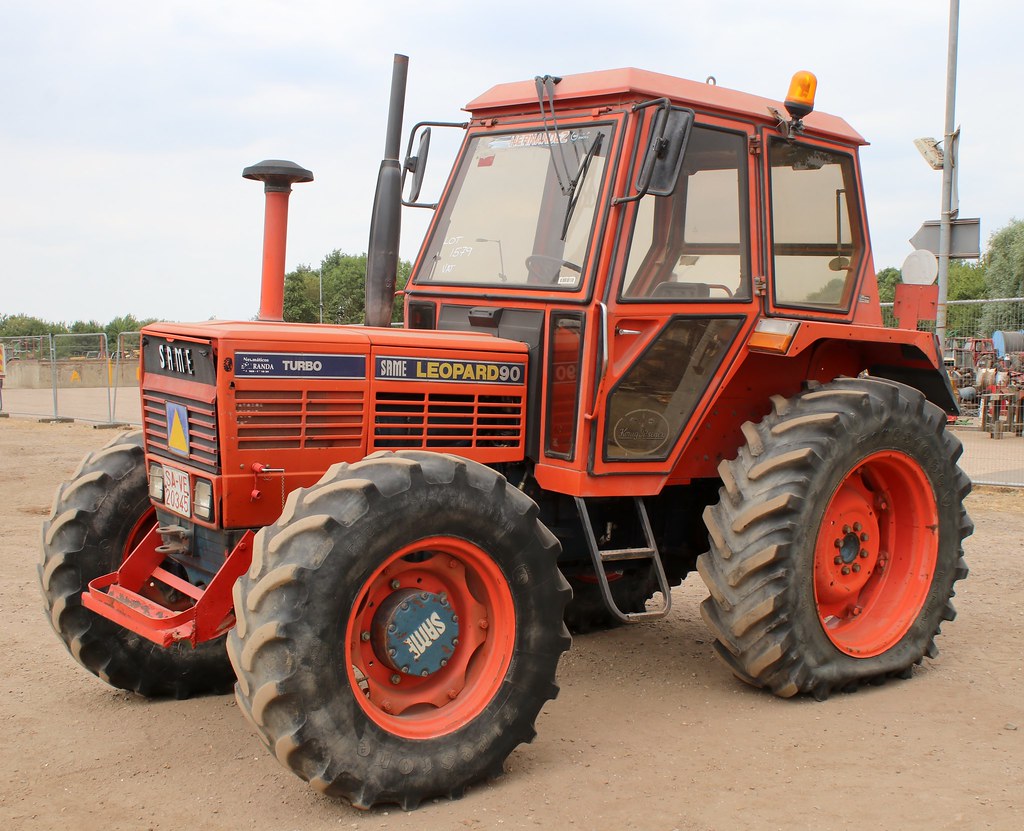

SAME Leopard 90 Turbo
SAME Leopard 90 Turbo — Row-Crop tractor · 88 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
88 hp
Weight
7054 to 8267 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Four-post ROPS. Cab optional with air-conditioning.Reference
Engine
SAME 4.2L 4-cyl dieselReference
Fuel tank120.0 LReference
Engine65.6 kWReference
SAME 1054 PTReference
turbocharged dieselReference
4-cylinderReference
air-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power65.6 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression15.5:1Reference
Rated RPM2270Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchronizedReference
20-speed creeperReference
TypesynchronizedReference
Gears12 forward and 3 reverseReference
Clutchdry discReference
Four gears, plus reverse, in three ranges.Reference
TypecreeperReference
Gears20 forward and 5 reverseReference
PTO & Hydraulics
Pressure171.7 barReference
Pump flow35.0 lpmReference
Pump flow60.2 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4756 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type540 (1.75)Reference
Dimensions
Wheelbase236 cmReference
Weight7054 to 8267 poundsReference
Front tire7.50-18Reference
2WD Rear tire16.9/14-34Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 16.9/14-34Reference
4WD Standard tires (ag)Front: 14.9/13-24. Rear: 16.9/14-34Reference
2WD Optional tires (ag)Front: 7.50-20. Rear: 16.9/14-34Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 16.9/14-30Reference
2WD Optional tires (ag)Front: 7.50-18. Rear: 18.4/15-30Reference
2WD Optional tires (ag)Front: 7.50-18. Rear: 13.6/12-38Reference
2WD Optional tires (ag)Front: 7.50-20. Rear: 18.4/15-34Reference
2WD Optional tires (ag)Front: 9.00-16. Rear: 18.4/15-34Reference
4WD. Rear: Optional tires (ag)Front: 13.6/12-24Reference
4WD Optional tires (ag)Front: 13.6/12-24. Rear: 18.4/15-30Reference
4WD Optional tires (ag)Front: 12.4/11-28. Rear: 13.6/12-38Reference
4WD Optional tires (ag)Front: 16.9/14-24. Rear: 18.4/15-30Reference
4WD Optional tires (ag)Front: 13.6/12-24. Rear: 18.4/15-34Reference
2WD Length364 cmReference
4WD Length376 cmReference
Width195 cmReference
Ground clearance41 cmReference
2WD Front tread159 to 219 cmReference
4WD Front tread151 to 179 cmReference
Rear tread152 to 212 cmReference
2WD ROPS3199 kgReference
2WD Cab3449 kgReference
4WD ROPS3499 kgReference
4WD Cab3749 kgReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
SAME Leopard 90 Turbo Height
Hood156 cmReference
ROPS264 cmReference
Cab273 cmReference
Speeds
With 16.9/14-34 rear tires and 30 kph transmission.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
