Tractor · 1971Unverified

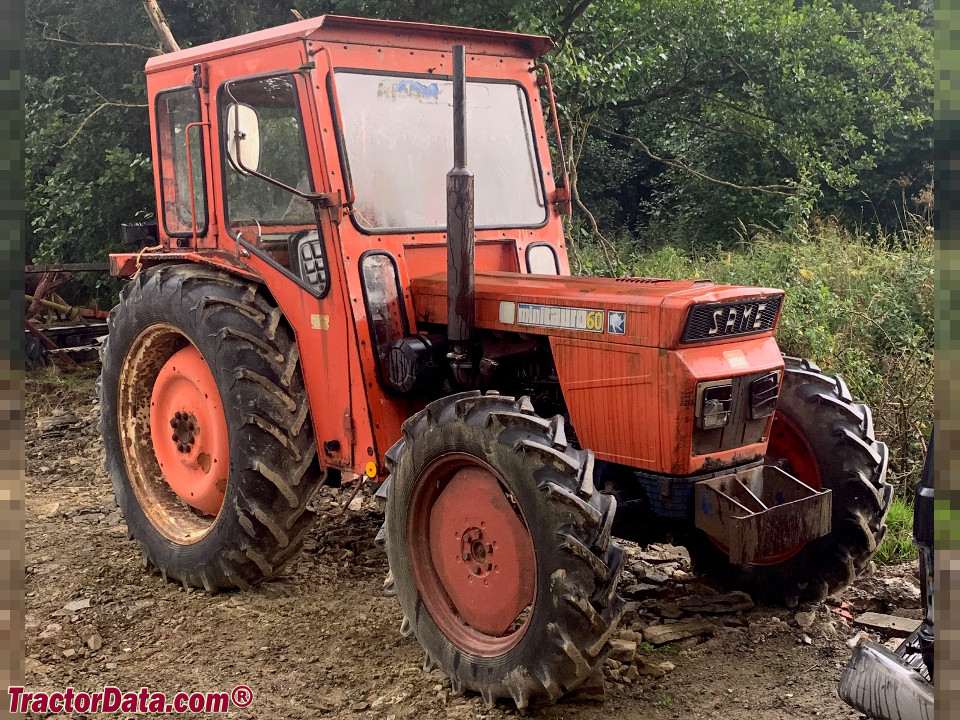

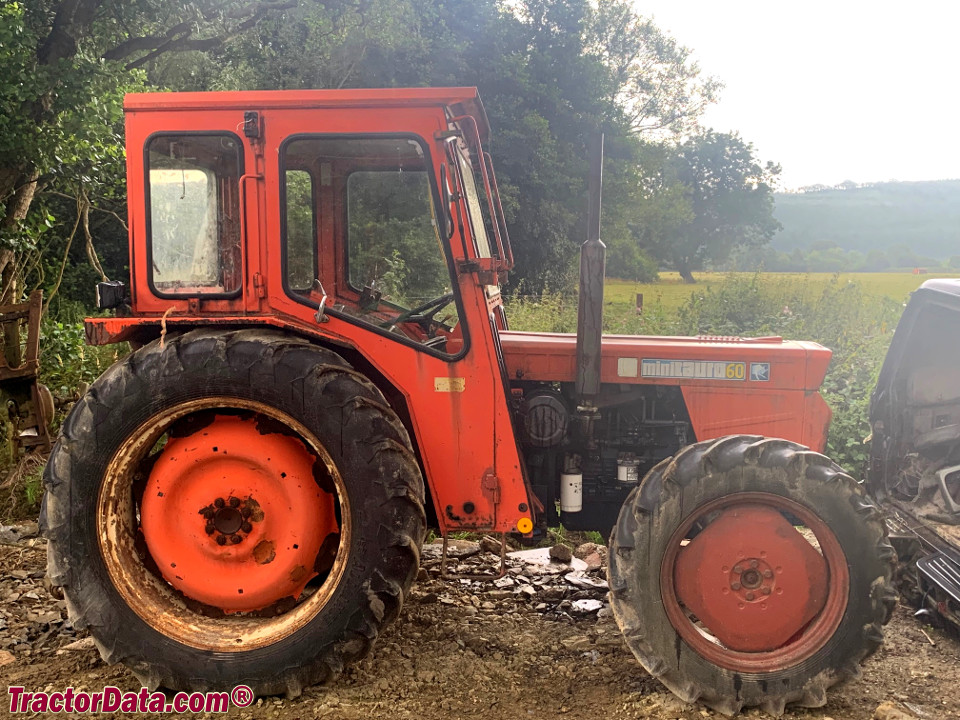

SAME Minitauro 60
SAME Minitauro 60 — Utility tractor · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
4211 to 4542 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Open operator station. Four-post ROPS available.Reference
Engine
SAME 3.1L 3-cyl dieselReference
Engine41.0 kWReference
SAME 1053Reference
dieselReference
3-cylinderReference
air-cooledReference
Displacement3.1 LReference
Bore/Stroke105 x 120 mmReference
Power41.0 kWReference
Fuel systemdirect injectionReference
Compression17:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed synchronizedReference
TypesynchronizedReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
PTO & Hydraulics
Pump flow18.2 lpmReference
Rear TypeIIReference
Rear lift1960 kgReference
Rear PTO Type540Reference
Dimensions
2WD Wheelbase198 cmReference
4WD Wheelbase196 cmReference
Weight4211 to 4542 poundsReference
Front tire6.00-16Reference
2WD Rear tire13.6-28Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 13.6-28Reference
4WD Standard tires (ag)Front: 8.00-20. Rear: 13.6-28Reference
2WD Length307 cmReference
4WD Length310 cmReference
Width163 cmReference
Height (steering wheel)147 cmReference
Height (hood)130 cmReference
2WD Weight1910 kgReference
4WD Weight2060 kgReference
2WD Ground clearance33 cmReference
4WD Ground clearance25 cmReference
2WD Front tread119 to 189 cmReference
4WD Front tread134 cmReference
Rear tread119 to 189 cmReference
Speeds
With 13.6-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
