Tractor · 1979Unverified

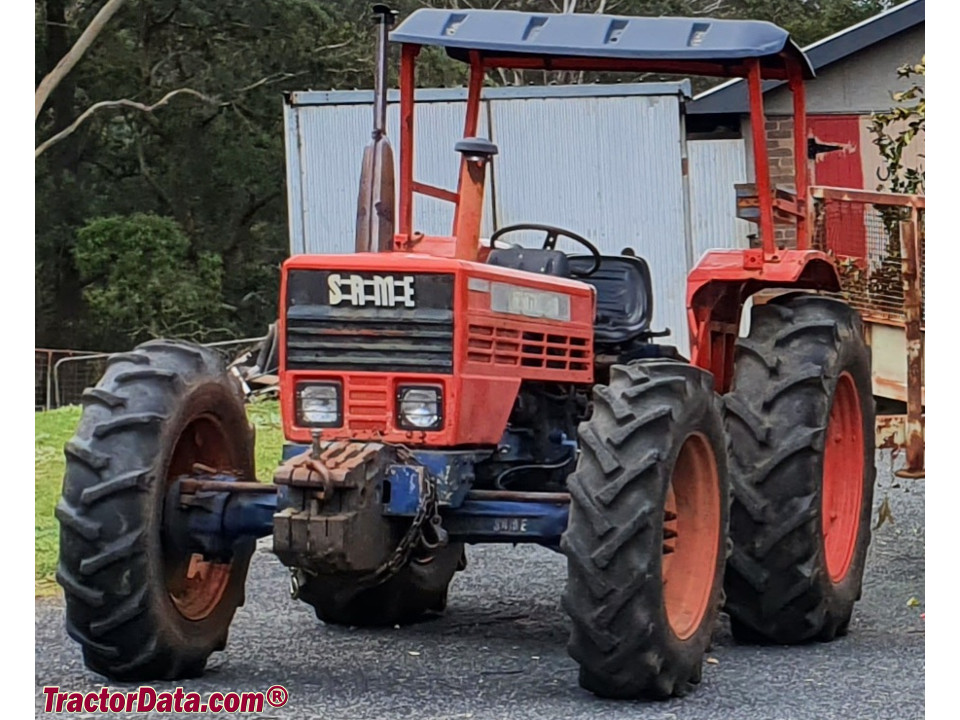

SAME Minitaurus 60
SAME Minitaurus 60 — Utility tractor · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
4820 to 5240 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Disc brakesReference
Four-post ROPS.Reference
Engine
SAME 3.1L 3-cyl dieselReference
Fuel tank60.2 LReference
Engine44.0 kWReference
SAME 1053Reference
dieselReference
3-cylinderReference
air-cooledReference
Displacement3.1 LReference
Bore/Stroke105 x 120 mmReference
Power44.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression17:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
14-speed synchronizedReference
14-speed creeperReference
TypesynchronizedReference
Gears14 forward and 7 reverseReference
Clutchdry discReference
Four gears in two ranges, plus reverse range, two-speed splitter in gears 1-3.Reference
TypecreeperReference
PTO & Hydraulics
Pump flow23.8 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift1959 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase214 cmReference
4WD Wheelbase211 cmReference
Weight4820 to 5240 poundsReference
Front tire7.50-16Reference
2WD Rear tire14.9-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 14.9-30Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 14.9-30Reference
2WD Length327 cmReference
4WD Length335 cmReference
Width177 cmReference
Height (hood)137 cmReference
Height (ROPS)230 cmReference
2WD Weight2186 kgReference
4WD Weight2376 kgReference
2WD Ground clearance41 cmReference
4WD Ground clearance39 cmReference
2WD Front tread139 to 189 cmReference
4WD Front tread145 to 183 cmReference
Rear tread139 to 189 cmReference
Electrical
Charging systemgeneratorReference
Watts (rated)460Reference
Battery volts12Reference
Battery AH110Reference
Speeds
With 14.9-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
