Tractor · 1978Unverified

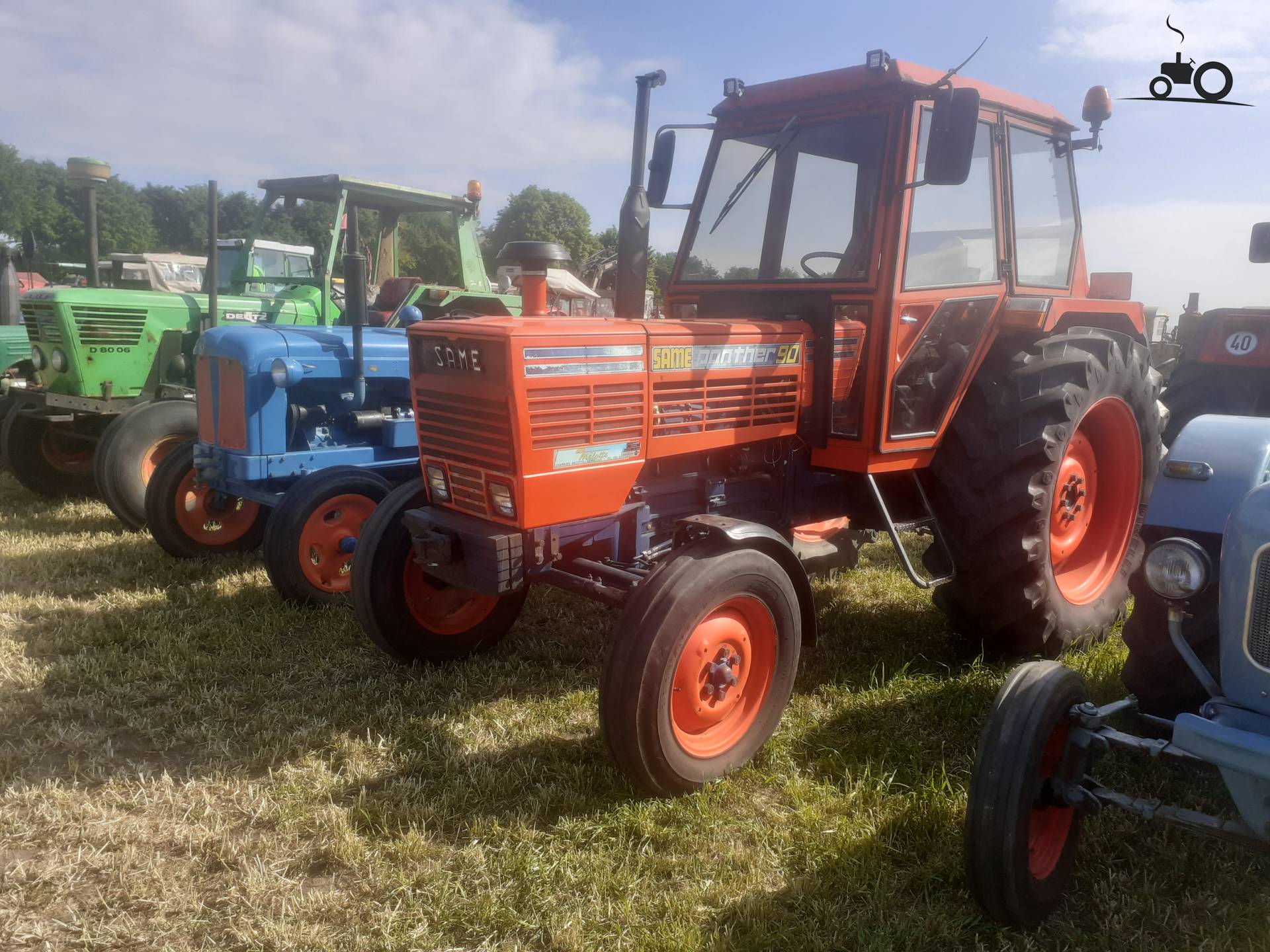

SAME Panther 90
SAME Panther 90 — Row-Crop tractor · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
7275 to 8774 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Four-post ROPS. Cab optional with air-conditioning.Reference
Engine
SAME 4.5L 5-cyl dieselReference
Fuel tank96.1 LReference
Engine67.1 kWReference
SAME 985 PReference
dieselReference
5-cylinderReference
air-cooled inlineReference
Displacement4.5 LReference
Bore/Stroke98 x 120 mmReference
Power67.1 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression17:1Reference
Rated RPM2190Reference
Torque324.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchromeshReference
20-speed creeperReference
TypesynchromeshReference
Gears12 forward and 3 reverseReference
Clutchdry discReference
TypecreeperReference
Gears20 forward and 5 reverseReference
PTO & Hydraulics
Valves2Reference
Pump flow29.9 lpmReference
Pump flow60.2 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type540 (1.75)Reference
Dimensions
Wheelbase249 cmReference
Weight7275 to 8774 poundsReference
Front tire7.50-18Reference
2WD Rear tire18.4/15-34Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 18.4/15-34Reference
4WD Standard tires (ag)Front: 13.6/12-24. Rear: 18.4/15-34Reference
2WD Length382 cmReference
4WD Length412 cmReference
Width211 cmReference
Ground clearance43 cmReference
2WD ROPS3299 kgReference
2WD Cab3700 kgReference
4WD ROPS3580 kgReference
4WD Cab3979 kgReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Battery AH110Reference
SAME Panther 90 Height
Hood161 cmReference
ROPS264 cmReference
Cab279 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
