Tractor · 1979Unverified

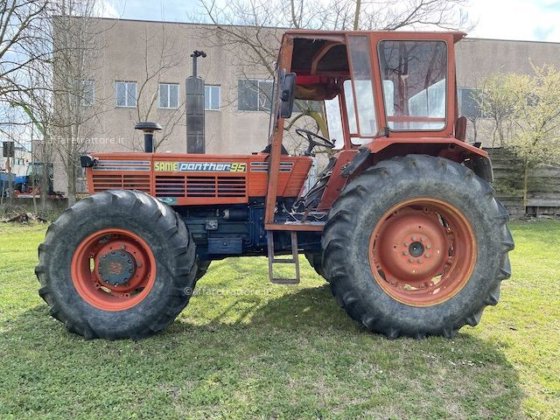

SAME Panther 95
SAME Panther 95 — Row-Crop tractor · 94 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
94 hp
Weight
7227 to 7880 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Four-post ROPS. Cab optional.Reference
Engine
SAME 5.2L 5-cyl dieselReference
Fuel tank95.8 LReference
Engine70.1 kWReference
SAME 1055 PReference
dieselReference
5-cylinderReference
air-cooled inlineReference
Displacement5.2 LReference
Bore/Stroke105 x 120 mmReference
Power70.1 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression17:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchronizedReference
20-speed creeperReference
TypesynchronizedReference
Gears12 forward and 3 reverseReference
Clutchmechanical dry discReference
Four gears, plus reverse, in three ranges.Reference
TypecreeperReference
Gears20 forward and 5 reverseReference
PTO & Hydraulics
Pressure171.6 barReference
Pump flow34.8 lpmReference
Pump flow60.2 lpmReference
Rear TypeIIReference
Controllower-link draft sensingReference
Rear lift4240 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type540 (1.75)Reference
Dimensions
2WD Wheelbase249 cmReference
4WD Wheelbase252 cmReference
Weight7227 to 7880 poundsReference
Front tire7.50-20Reference
2WD Rear tire18.4/15-34Reference
2WD Standard tires (ag)Front: 7.50-20. Rear: 18.4/15-34Reference
4WD Standard tires (ag)Front: 16.9/14-24. Rear: 18.4/15-34Reference
@WD Optional tires (ag)Front: 7.50-18. Rear: 13.6/12-38Reference
2WD Optional tires (ag)Front: 7.50-18. Rear: 16.9/14-34Reference
2WD Optional tires (ag)Front: 9.00-16. Rear: 21.3/18-30Reference
4WD Optional tires (ag)Front: 12.4/11-28. Rear: 13.6/12-38Reference
4WD Optional tires (ag)Front: 13.6/12-24. Rear: 23.1/18-26Reference
4WD Optional tires (ag)Front: 14.9/13-24. Rear: 23.1/18/-30Reference
4WD Optional tires (ag)Front: 14.9/13-24. Rear: 16.9/14-24Reference
2WD Length386 cmReference
4WD Length398 cmReference
Width210 cmReference
Height (hood)163 cmReference
Height (ROPS)271 cmReference
2WD Weight3278 kgReference
4WD Weight3574 kgReference
Ground clearance45 cmReference
2WD Front tread169 to 229 cmReference
4WD Front tread169 to 197 cmReference
Rear tread163 to 212 cmReference
Speeds
With 18.4/15-34 rear tires and 30 kph transmission.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
