Tractor · 1960Unverified

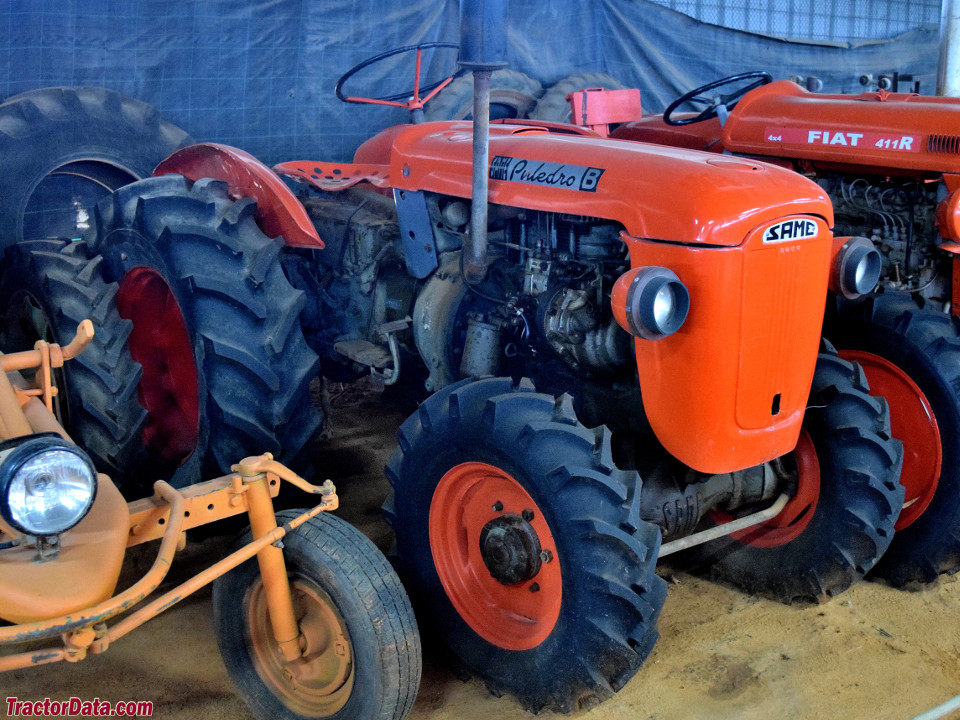

SAME Puledro
SAME Puledro · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
3263 to 3549 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Drive4x2 2WDReference
Drive4x4 4WDReference
Mechanical band brakesReference
Open operator station.Reference
Engine
SAME 2.5L 2-cyl dieselReference
Engine26.1 kWReference
SAME DA 1152Reference
dieselReference
2-cylinderReference
air-cooledReference
Displacement2.5 LReference
Bore/Stroke115 x 120 mmReference
Power26.1 kWReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Dimensions
2WD Wheelbase184 cmReference
4WD Wheelbase171 cmReference
Weight3263 to 3549 poundsReference
Front tire5.50-16Reference
2WD Rear tire10-28Reference
2WD Standard tires (ag)Front: 5.50-16. Rear: 10-28Reference
4WD Standard tires (ag)Front: 7.50-20. Rear: 10-28Reference
Length275 cmReference
Width157 cmReference
Height144 cmReference
2WD Weight1480 kgReference
4WD Weight1609 kgReference
2WD Ground clearance44 cmReference
4WD Ground clearance25 cmReference
2WD Front tread119 to 189 cmReference
4WD Front tread122 cmReference
2WD Rear tread119 to 189 cmReference
4WD Rear tread119 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
