Tractor · Unverified

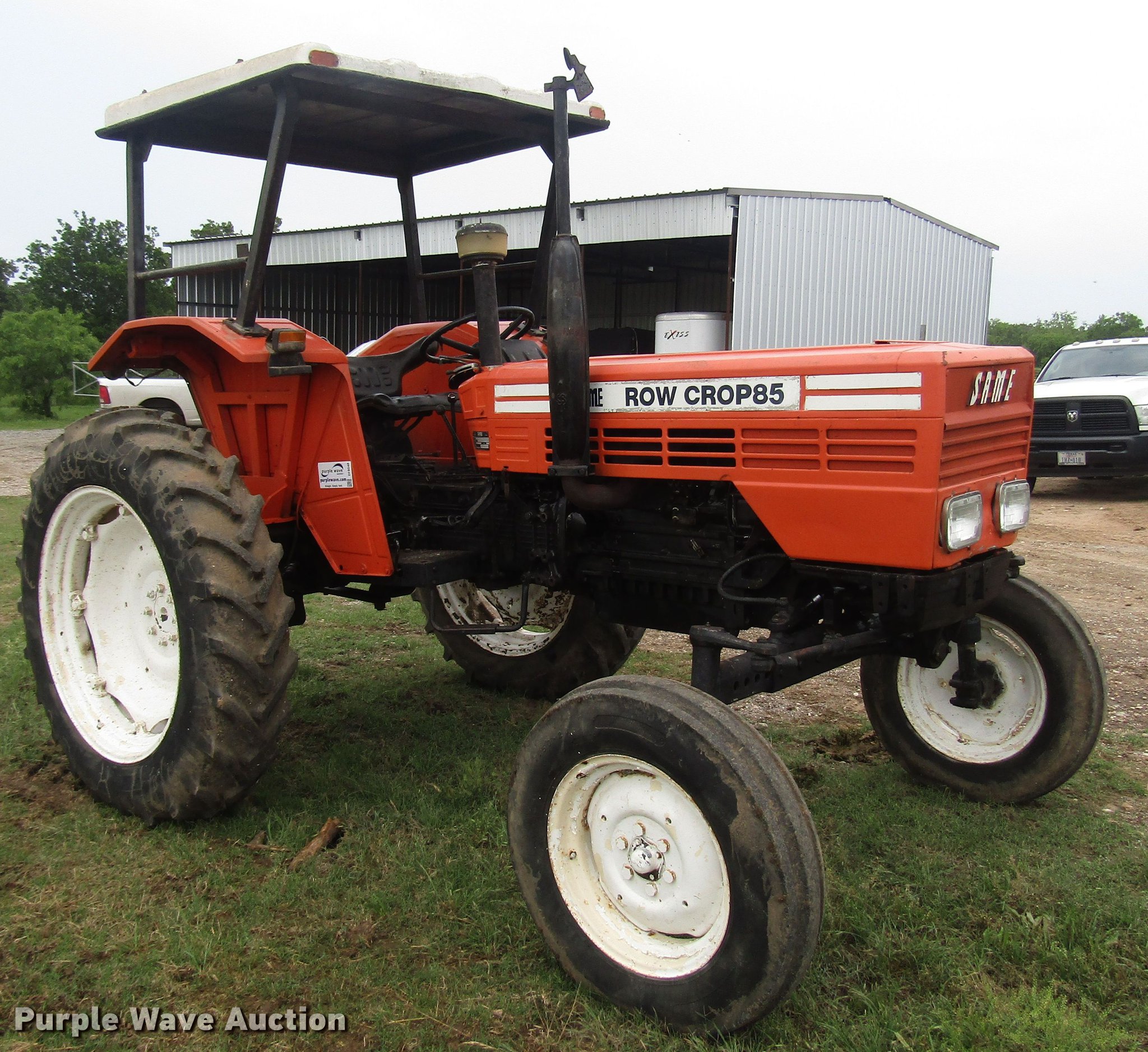

SAME Row Crop 85
SAME Row Crop 85 — Row Crop SeriesHigh-Clearance tractor · 83 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
83 hp
Weight
6796 to 7519 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
High-Clearance tractorReference
Two- or four-wheel driveReference
Differential lockmechanicalReference
Power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS.Reference
Engine
SAME 4.2L 4-cyl dieselReference
Fuel tank79.9 LReference
Engine61.9 kWReference
SAME 1054PReference
dieselReference
4-cylinderReference
air-cooled inlineReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power61.9 kWReference
Fuel systemdirect-injectionReference
Air cleanerdryReference
Compression17:1Reference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchronizedReference
TypesynchronizedReference
Gears12 forward and reverseReference
Four synchronized gears in three ranges with shuttle.Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow75.7 lpmReference
Rear TypeIIReference
Controlposition, float and lower-link draft sensingReference
Rear lift3764 kgReference
Rear PTOliveReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
2WD Wheelbase235 cmReference
4WD Wheelbase233 cmReference
Weight6796 to 7519 poundsReference
Front tire7.50-20Reference
2WD Rear tire13.6/12-38Reference
2WD Standard tires (ag)Front: 7.50-20. Rear: 13.6/12-38Reference
4WD Standard tires (ag)Front: 13.6/12-38. Rear: 13.6-12/38Reference
2WD Length394 cmReference
4WD Length391 cmReference
Width216 cmReference
2WD Shipping weight3082 kgReference
4WD Shipping weight3410 kgReference
2WD Clearance (front axle)71 cmReference
4WD Clearance (front axle)62 cmReference
2WD Front tread151 to 203 cmReference
4WD Front tread183 to 203 cmReference
2WD Rear tread151 to 203 cmReference
4WD Rear tread183 to 203 cmReference
SAME Row Crop 85 Height
2WD Hood165 cmReference
4WD Hood157 cmReference
ROPS265 cmReference
Speeds
With 13.6/12-38 tires. Reverse speeds are about 20% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
