Tractor · 1995Unverified

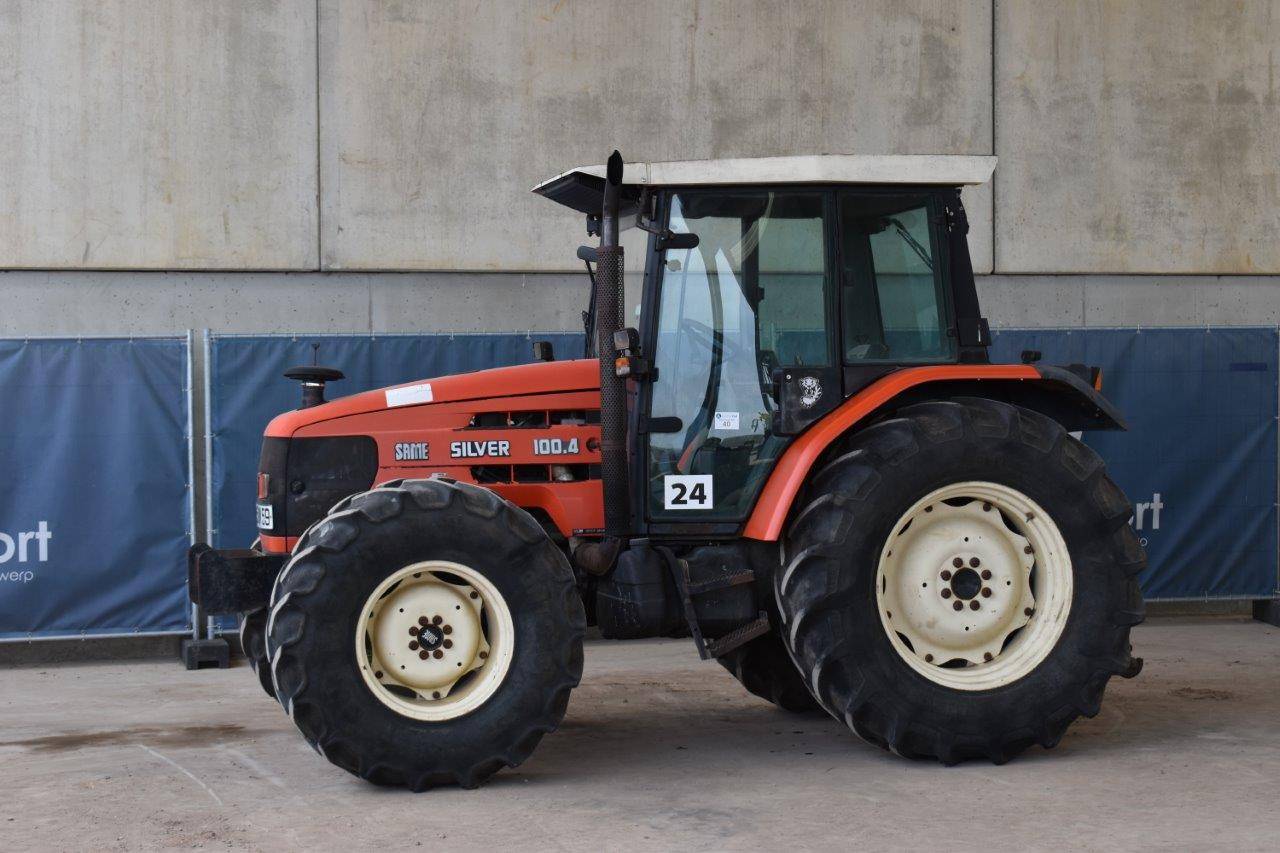

SAME Silver 100.4
SAME Silver 100.4 · 93 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
93 hp
Weight
8047 to 9568 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Four-wheel driveReference
Power steeringReference
Hydraulic brakesReference
Trailer brakeshydraulicReference
Two-post ROPS. Cab optional with available air-conditioning.Reference
Engine
SAME 4.0L 4-cyl dieselReference
Fuel tank149.9 LReference
Engine74.6 kWReference
SAME 1000.4 ATIReference
turbocharged intercooled dieselReference
4-cylinderReference
air-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 115 mmReference
Power74.6 kWReference
Rated RPM2500Reference
Torque378.1 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
15-speedReference
20-speedReference
45-speed partial power shiftReference
60-speed partial power shiftReference
Gears15 forward and reverseReference
Gears20 forward and reverseReference
TransmissionAgroshiftReference
Typepartial power shiftReference
Gears45 forward and reverseReference
Gears60 forward and reverseReference
Five gears in four ranges with three-speed push-button hydraulic shift.Reference
PTO & Hydraulics
PTO (claimed)69.3 kWReference
Valves2 to 4Reference
Pump flow40.9 lpmReference
Pump flow48.1 lpmReference
Rear lift4700 kgReference
Front HitchoptionalReference
Front lift1999 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540/540E/1000/1000EReference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase237 cmReference
Weight8047 to 9568 poundsReference
Front tire14.9R24Reference
Rear tire16.9R34Reference
Standard tires (ag)Front: 14.9R24. Rear: 16.9R34Reference
Optional tires (ag)Front: 420/70R24. Rear: 480/70R34Reference
Optional tires (ag)Front: 16.9R24. Rear: 18.4R34Reference
Optional tires (ag)Front: 540/65R24. Rear: 600/65R34Reference
Length419 cmReference
Width183 cmReference
ROPS Weight3650 kgReference
Cab Weight4340 kgReference
Ground clearance44 cmReference
Front tread150 to 210 cmReference
Rear tread150 to 210 cmReference
SAME Silver 100.4 Height
Hood147 cmReference
ROPS271 cmReference
Cab271 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
