Tractor · 1995Unverified

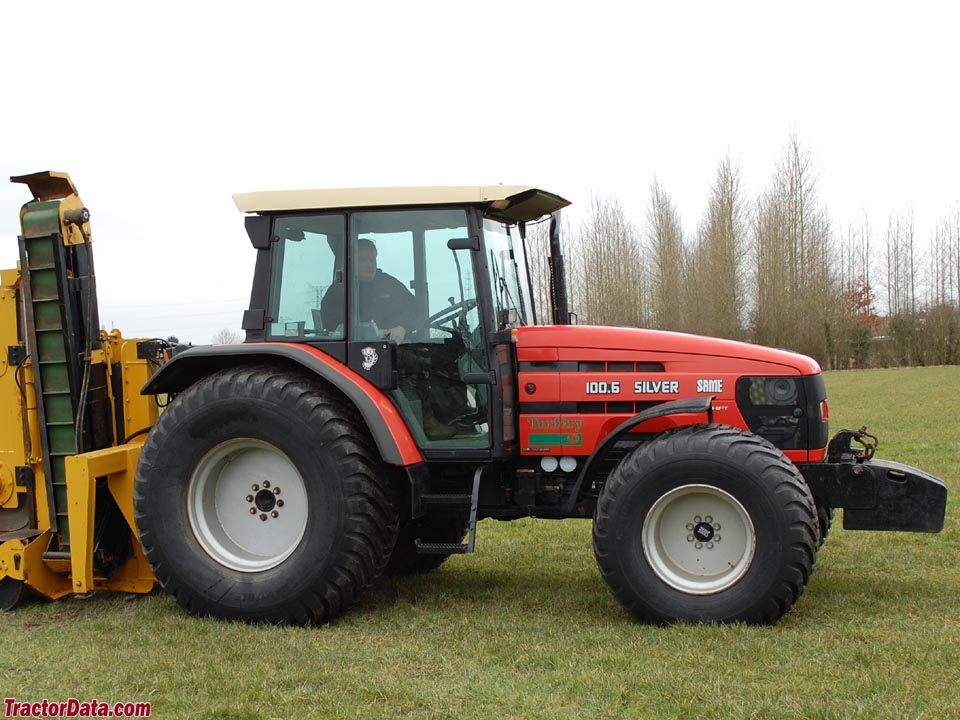

SAME Silver 100.6
SAME Silver 100.6 · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
8818 to 10340 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Four-wheel driveReference
Power steeringReference
Hydraulic brakesReference
Trailer brakeshydraulicReference
Two-post ROPS. Cab optional with available air-conditioning.Reference
Engine
SAME 6.0L 6-cyl dieselReference
Fuel tank174.9 LReference
Engine74.6 kWReference
SAME 1000.6 AReference
dieselReference
6-cylinderReference
air-cooledReference
Displacement6.0 LReference
Bore/Stroke105 x 115 mmReference
Power74.6 kWReference
Rated RPM2500Reference
Torque367.1 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
15-speedReference
20-speedReference
45-speed partial power shiftReference
60-speed partial power shiftReference
Gears15 forward and reverseReference
Gears20 forward and reverseReference
TransmissionAgroshiftReference
Typepartial power shiftReference
Gears45 forward and reverseReference
Gears60 forward and reverseReference
Five gears in four ranges with three-speed push-button hydraulic shift.Reference
PTO & Hydraulics
Valves2 to 4Reference
Pump flow40.9 lpmReference
Pump flow48.1 lpmReference
Rear lift4700 kgReference
Front HitchoptionalReference
Front lift1999 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540/540E/1000/1000EReference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase263 cmReference
Weight8818 to 10340 poundsReference
Front tire420/70R24Reference
Rear tire480/70R34Reference
Standard tires (ag)Front: 420/70R24. Rear: 480/70R34Reference
Optional tires (ag)Front: 16.9R24. Rear: 520/70R34Reference
Optional tires (ag)Front: 380/70R28. Rear: 480/70R38Reference
Length445 cmReference
Width198 cmReference
ROPS Weight3999 kgReference
Cab Weight4690 kgReference
Ground clearance47 cmReference
Front tread160 to 210 cmReference
Rear tread160 to 210 cmReference
SAME Silver 100.6 Height
Hood177 cmReference
ROPS273 cmReference
Cab273 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
