Tractor · 2004Unverified

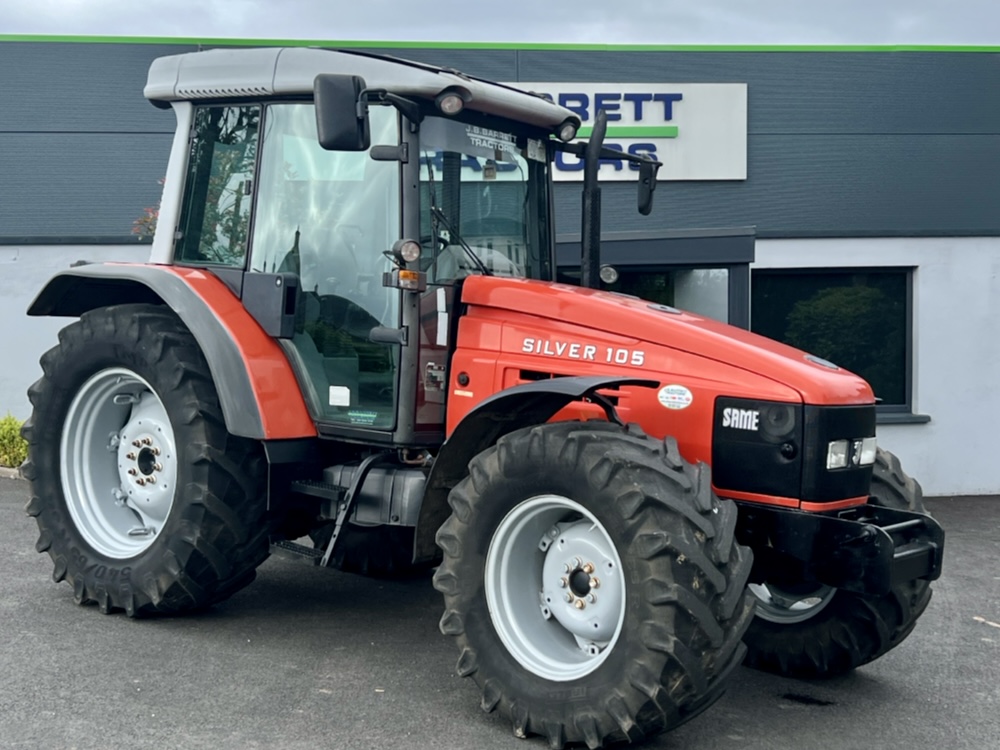

SAME Silver 105
SAME Silver 105 — Silver Series · 103 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
103 hp
Weight
8730 to 9524 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS. Cab available with air-conditioning.Reference
Engine
SAME 6.0L 6-cyl dieselReference
Fuel tank174.9 LReference
Engine (gross)76.4 kWReference
Engine (net)74.6 kWReference
SAME 1000.6 WAReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke105 x 116 mmReference
EmissionsStage IIReference
Rated Power (net)74.6 kWReference
Rated Power (gross)76.4 kWReference
Air cleanerdryReference
Rated RPM2300Reference
Torque391.1 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
15-speed synchromeshReference
45-speed partial power shiftReference
60-speedReference
TypesynchromeshReference
Gears15 forward and reverseReference
Five synchronized gears in three ranges. Also available with creeper range providing 20 gears.Reference
TransmissionAgroshiftReference
Typepartial power shiftReference
Gears45 forward and reverseReference
Five synchronized gears in three ranges with three-speed power shift.Reference
TransmissionAgroshift CreeperReference
Gears60 forward and reverseReference
Optional creeper range for Agroshift transmission.Reference
PTO & Hydraulics
Pump flow54.1 lpmReference
Rear lift4800 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/540E/1000/1000EReference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase263 cmReference
Weight8730 to 9524 poundsReference
Rear tire520/70R34Reference
Ag rear520/70R34Reference
Length381 cmReference
Width212 cmReference
Height (cab)268 cmReference
ROPS Weight3959 kgReference
Cab Weight4320 kgReference
Ground clearance48 cmReference
2WD Front tread139 to 199 cmReference
4WD Front tread160 to 210 cmReference
Rear tread160 to 210 cmReference
Electrical
GroundnegativeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
