Tractor · 2003Unverified

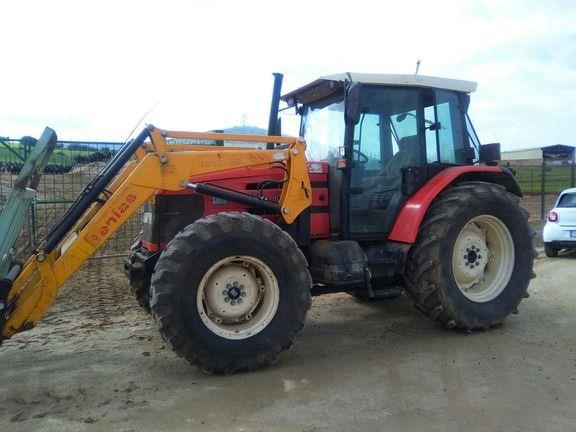

SAME Silver 115
SAME Silver 115 — Silver Series · 122 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
122 hp
Weight
5079 kg
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
SAME 6.0L 6-cyl dieselReference
Fuel tank240.0 LReference
Engine (gross)91.0 kWReference
Engine (net)85.8 kWReference
SAME 1000.6 WTReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
EmissionsStage IIReference
Rated Power (net)85.8 kWReference
Rated Power (gross)91.0 kWReference
Rated RPM2500Reference
Torque445.0 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
18-speed synchromeshReference
54-speed three-speed power shiftReference
72-speedReference
TypesynchromeshReference
Gears18 forward and reverseReference
Six synchronized gears in three ranges. Also available with creeper range providing 24 gears.Reference
TransmissionAgroshiftReference
Typethree-speed power shiftReference
Gears54 forward and reverseReference
Six synchronized gears in four ranges with three-speed power shift.Reference
TransmissionAgroshift CreeperReference
Gears72 forward and reverseReference
PTO & Hydraulics
Pump flow57.9 lpmReference
Rear lift4800 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540E/540/1000E/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase275 cmReference
Weight5079 kgReference
Rear tire18.4R34Reference
Ag rear18.4R34Reference
Length432 cmReference
Width221 cmReference
Height (cab)289 cmReference
Ground clearance40 cmReference
Front tread182 to 231 cmReference
Rear tread175 to 225 cmReference
Electrical
GroundnegativeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
