Tractor · 2004Unverified

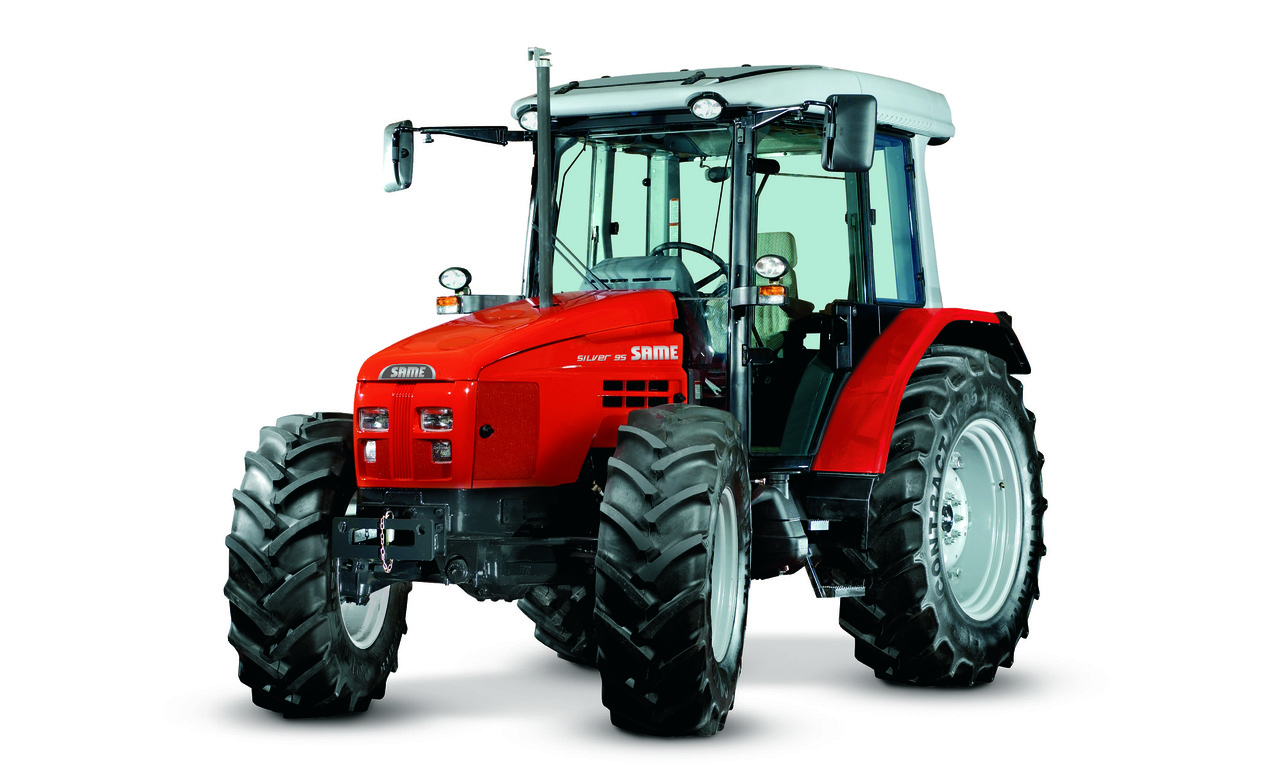

SAME Silver 85
SAME Silver 85 — Silver Series · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
8146 to 8940 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS. Cab available with air-conditioning.Reference
Engine
SAME 4.0L 4-cyl dieselReference
Fuel tank149.9 LReference
Engine (gross)67.1 kWReference
Engine (net)63.4 kWReference
SAME 1000.4 WTReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 116 mmReference
EmissionsStage IIReference
Rated Power (net)63.4 kWReference
Rated Power (gross)67.1 kWReference
Air cleanerdryReference
Rated RPM2300Reference
Torque344.0 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
15-speed synchromeshReference
45-speed partial power shiftReference
60-speedReference
TypesynchromeshReference
Gears15 forward and reverseReference
Five synchronized gears in three ranges. Also available with creeper range providing 20 gears.Reference
TransmissionAgroshiftReference
Typepartial power shiftReference
Gears45 forward and reverseReference
Five synchronized gears in three ranges with three-speed power shift.Reference
TransmissionAgroshift CreeperReference
Gears60 forward and reverseReference
Optional creeper range for Agroshift transmission.Reference
PTO & Hydraulics
Pump flow54.1 lpmReference
Rear lift4799 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/540E/1000/1000EReference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase237 cmReference
Weight8146 to 8940 poundsReference
Rear tire16.9R34Reference
Ag rear16.9R34Reference
Length378 cmReference
Width194 cmReference
Height (cab)265 cmReference
ROPS Weight3695 kgReference
Cab Weight4055 kgReference
Ground clearance45 cmReference
Front tread150 to 210 cmReference
Rear tread150 to 210 cmReference
Electrical
GroundnegativeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
