Tractor · 2001Unverified

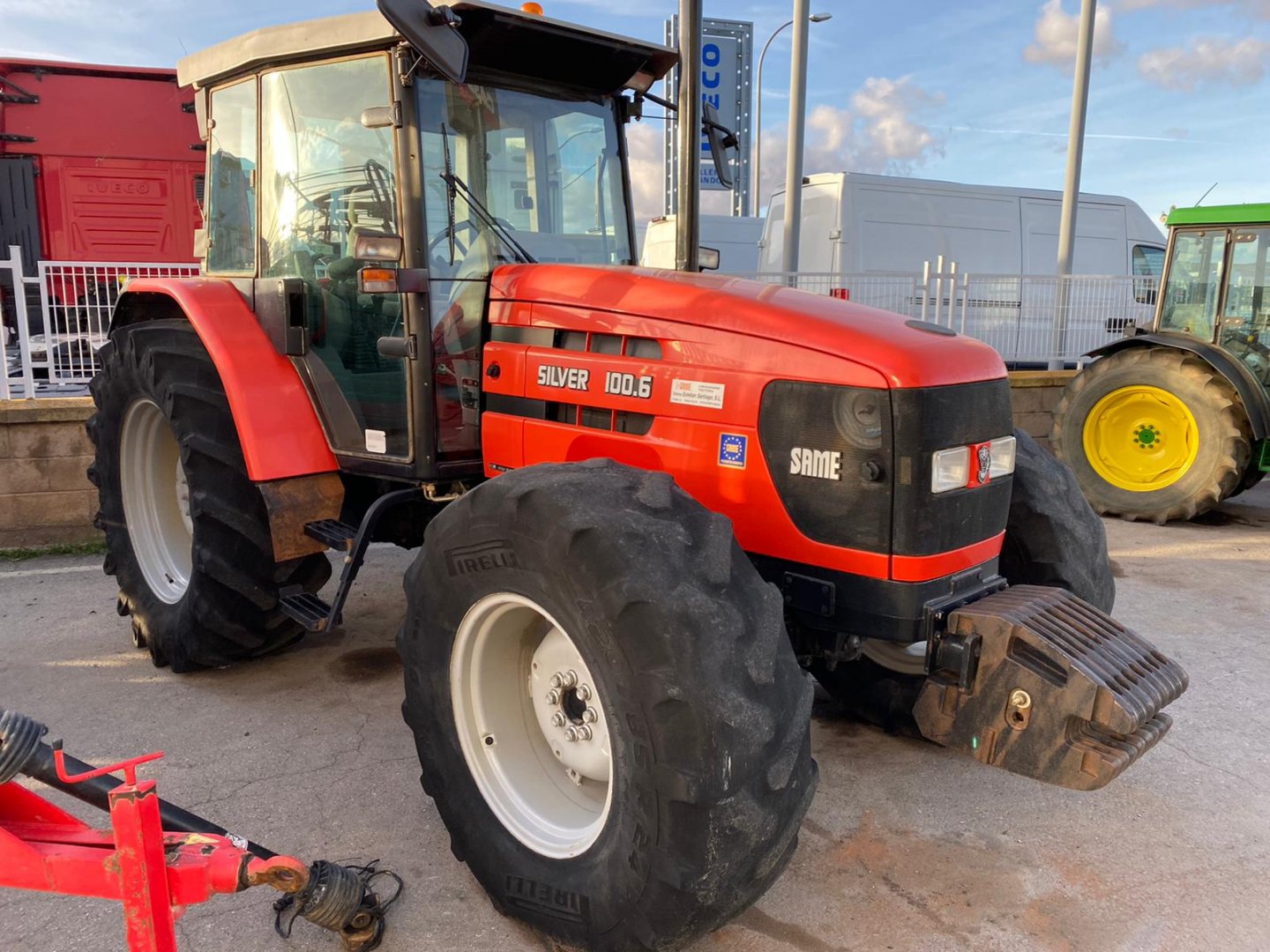

SAME Silver W 100
SAME Silver W 100 — Silver W Series · 103 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
103 hp
Weight
3900 kg
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Row-Crop tractorReference
Four-wheel driveReference
Engine
SAME 4.0L 4-cyl dieselReference
Fuel tank149.9 LReference
Engine76.8 kWReference
SAME 1000.4-WT1Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 115 mmReference
Power76.8 kWReference
Rated RPM2500Reference
Transmission
20-speedReference
60-speedReference
Gears20 forward and reverseReference
Gears60 forward and reverseReference
PTO & Hydraulics
Pump flow57.9 lpmReference
Rear lift4700 kgReference
Rear PTO Type540, 750, 1000, 1250Reference
Dimensions
Wheelbase237 cmReference
Weight3900 kgReference
Front tire13.6R28Reference
Rear tire16.9R38Reference
Ag front13.6R28Reference
Ag rear16.9R38Reference
Length418 cmReference
Height270 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
