Tractor · 2001Unverified

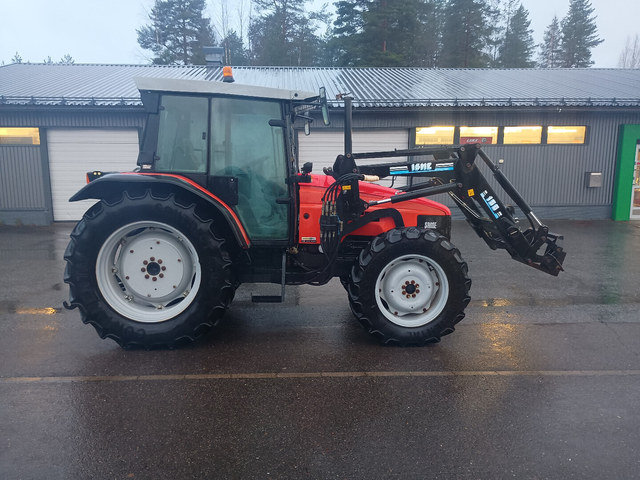

SAME Silver W 105
SAME Silver W 105 — Silver W Series · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
4250 kg
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Row-Crop tractorReference
Four-wheel driveReference
Engine
SAME 6.0L 6-cyl dieselReference
Fuel tank174.1 LReference
Engine78.3 kWReference
SAME 1000.6W1Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke105 x 115 mmReference
Power78.3 kWReference
Rated RPM2500Reference
Transmission
20-speedReference
60-speedReference
Gears20 forward and reverseReference
Gears60 forward and reverseReference
PTO & Hydraulics
Pump flow57.9 lpmReference
Rear lift4700 kgReference
Rear PTO Type540, 750, 1000, 1250Reference
Dimensions
Wheelbase264 cmReference
Weight4250 kgReference
Front tire380/70R28Reference
Rear tire480/70R38Reference
Ag front380/70R28Reference
Ag rear480/70R38Reference
Length445 cmReference
Height270 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
