Tractor · 2009Unverified

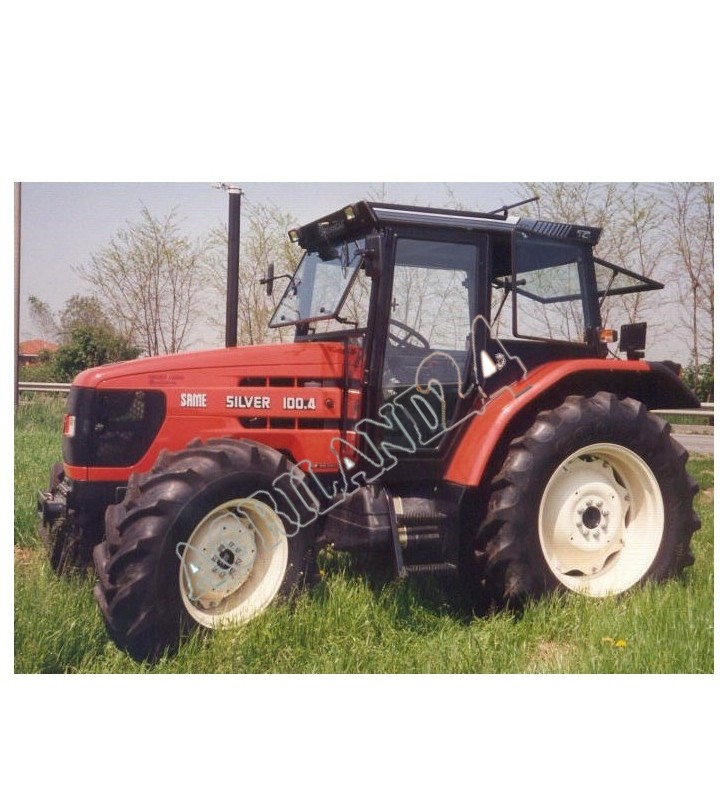

SAME Silver3 100
SAME Silver3 100 — Silver Series · 99 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
99 hp
Weight
9259 to 9700 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Four-wheel driveReference
Final driveselectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with air-conditioning.Reference
Engine
Deutz 4.0L 4-cyl dieselReference
Fuel tank160.1 LReference
Engine (gross)73.8 kWReference
DeutzReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke101 x 126 mmReference
EmissionsStage IIIReference
Rated Power (gross)73.8 kWReference
Rated RPM2300Reference
Torque380.1 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
60-speed three-speed power shiftReference
three-speed power shiftReference
Typethree-speed power shiftReference
Gears60 forward and reverseReference
Five synchronized gears in four ranges with three-speed power shift.Reference
TransmissionContinuoReference
Gearsinfinite forward and reverseReference
Two-range continuously-variable transmission.Reference
PTO & Hydraulics
Pump flow57.9 lpmReference
Rear lift5299 kgReference
Rear lift6200 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
PS Rear PTO Type540E/540/1000E/1000Reference
CVT Rear PTO Type540E/540/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase233 cmReference
Weight9259 to 9700 poundsReference
PS Length399 cmReference
CVT Length415 cmReference
Width204 cmReference
Height (cab)265 cmReference
PS Weight4199 kgReference
CVT Weight4399 kgReference
Ground clearance50 cmReference
Front tread160 to 235 cmReference
Rear tread160 to 235 cmReference
Electrical
GroundnegativeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
