Tractor · 1986Unverified

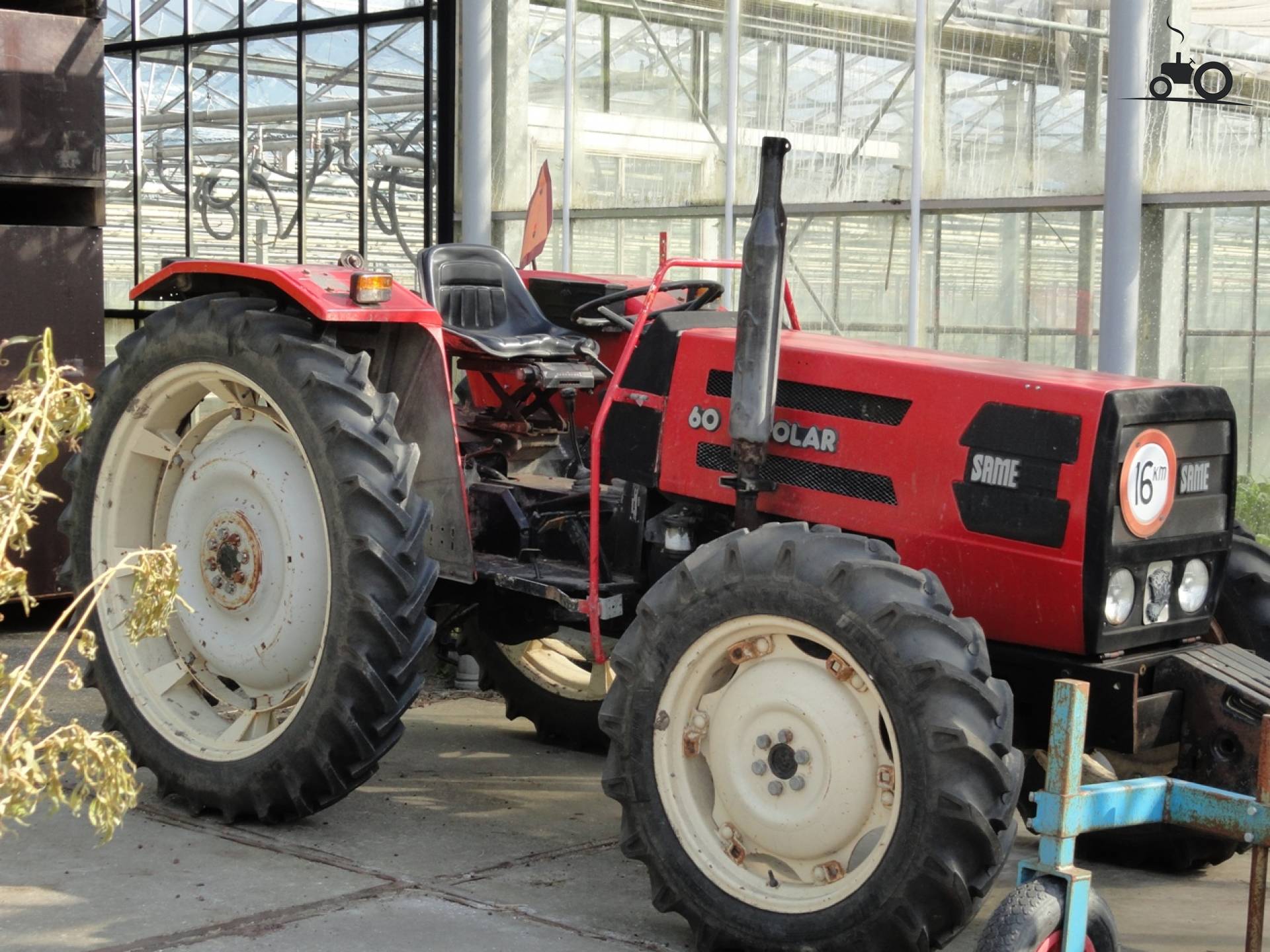

SAME Solar 60

Name: SAME Solar 60
Brand: SAME

SAME Solar 60 — Solar Series · 59 hp. Reference specifications; pending source verification.

The SAME Solar 60 is a compact tractor model with a rated output of 59 hp. It was produced from 1986 to 1997, powered by a 3-cylinder diesel air-cooled engine. This engine drives the tractor's four-wheel drive system through a 12-speed gearbox. The listed weight of the Solar 60 ranges from 4586 to 5203 pounds, suitable for tasks covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

59 hp

Weight

4586 to 5203 pounds

Catalogue coverage

Variants represented

Richest spec table

67 rows

Recorded power

59 hp

Recorded weight

2080 kg

Transmissions

12-speed synchronized

Production years

1986-1997

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSAMEReference

Utility tractorReference

Two- or four-wheel driveReference

SteeringmanualReference

SteeringpowerReference

Mechanical wet disc brakesReference

Four-post ROPS.Reference

Variants

660similar Lamborghini modelReference

H-361similar Hurlimann modelReference

4660similar AGCO Allis modelReference

Engine

SAME 3.1L 3-cyl dieselReference

Fuel tank54.9 LReference

Engine44.0 kWReference

SAME 1053 PReference

dieselReference

3-cylinderReference

air-cooledReference

Displacement3.1 LReference

Bore/Stroke105 x 120 mmReference

Power44.0 kWReference

Rated RPM2200Reference

Starter volts12Reference

Transmission

12-speed synchronizedReference

16-speed creeperReference

TypesynchronizedReference

Gears12 forward and 3 reverseReference

Clutchdry discReference

TypecreeperReference

Gears16 forward and 4 reverseReference

PTO & Hydraulics

Pressure180.0 barReference

Pump flow32.2 lpmReference

Rear TypeIIReference

Rear lift2970 kgReference

Rear PTOliveReference

Rear PTO Type540 (1.375)Reference

Rear PTO Type540/1000 (1.375)Reference

Dimensions

2WD Wheelbase209 cmReference

4WD Wheelbase206 cmReference

Weight4586 to 5203 poundsReference

Front tire7.50-16Reference

2WD Rear tire14.9/13-28Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 14.9/13-28Reference

4WD Standard tires (ag)Front: 11.2/10-20. Rear: 14.9/13-28Reference

2WD Optional tires (ag)Front: 6.50-16. Rear: 13.6/12-28Reference

2WD Optional tires (ag)Front: 7.50-16. Rear: 14.9/13-30Reference

2WD Optional tires (ag)Front: 6.00-19. Rear: 12.4/11-32Reference

2WD Optional tires (ag)Front: 6.50-20. Rear: 12.4/11-36Reference

4WD Optional tires (ag)Front: 9.5/9-20. Rear: 13.6/12-28Reference

4WD Optional tires (ag)Front: 9.5./9-24. Rear: 14.9/13-30Reference

4WD Optional tires (ag)Front: 8.3/8-24. Rear: 12.4/11-32Reference

4WD Optional tires (ag)Front: 9.5/9-24. Rear: 12.4/11-36Reference

Length317 cmReference

Length338 cmReference

Width169 cmReference

2WD Weight2080 kgReference

4WD Weight2360 kgReference

2WD Ground clearance46 cmReference

4WD Ground clearance35 cmReference

2WD Front tread122 to 163 cmReference

4WD Front tread134 to 155 cmReference

Rear tread135 to 185 cmReference

Electrical

Charging systemalternatorReference

Battery volts12Reference

SAME Solar 60 Height

2WD Hood132 cmReference

4WD Hood130 cmReference

ROPS230 cmReference

Speeds

With 14.9/13-28 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
