Tractor · 1977Unverified

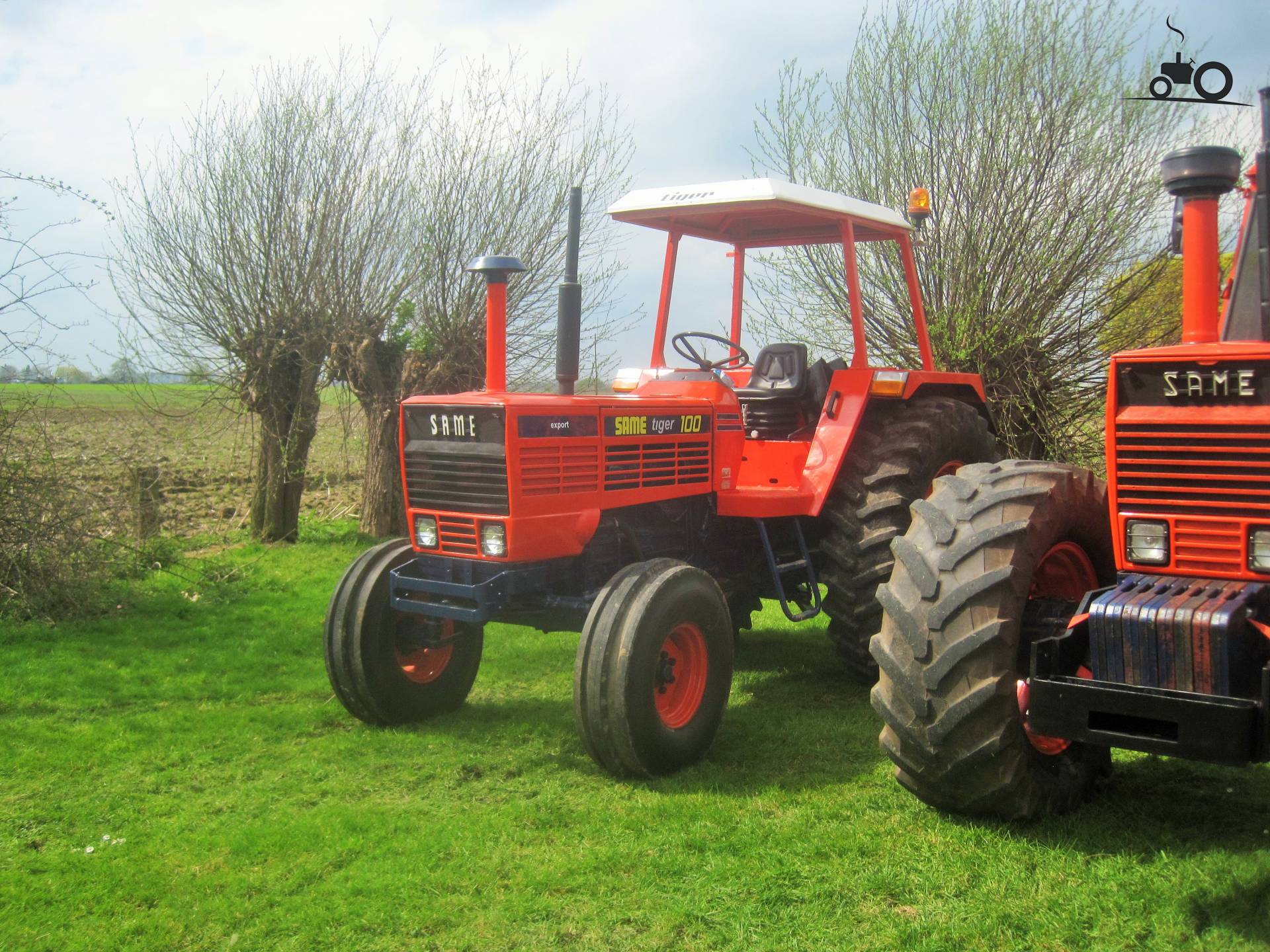

SAME Tiger 100
SAME Tiger 100 — Row-Crop tractor · 92 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
92 hp
Weight
8312 to 8908 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Four-post ROPS. Cab optional.Reference
Engine
SAME 5.2L 5-cyl dieselReference
Engine76.1 kWReference
SAME 1055LReference
dieselReference
5-cylinderReference
air-cooledReference
Displacement5.2 LReference
Bore/Stroke105 x 120 mmReference
Power76.1 kWReference
Fuel systemdirect injectionReference
Compression17:1Reference
Rated RPM2200Reference
Torque370.1 NmReference
Torque RPM1450Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and 3 reverseReference
Clutchmechanical dry discReference
Four gears (1-4), plus reverse (R) in three ranges.Reference
PTO & Hydraulics
PTO (claimed)68.6 kWReference
Hydraulic system20.1 LReference
Capacity20.1 LReference
Pressure171.6 barReference
Pump flow30.0 lpmReference
Rear TypeIIReference
Controllower-link draft controlReference
Rear lift3000 kgReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1958Reference
Engine RPM1000@2125Reference
Capacities
Fuel129.8 LReference
Dimensions
2WD Wheelbase250 cmReference
4WD Wheelbase254 cmReference
Weight8312 to 8908 poundsReference
Front tire7.50-20Reference
Rear tire18.4-34Reference
Ag front7.50-20Reference
Ag front13.6-24 (4WD)Reference
Ag rear18.4-34Reference
Length394 cmReference
Width272 cmReference
Height (hood)158 cmReference
Height (cab)273 cmReference
2WD Weight3770 kgReference
4WD Weight4040 kgReference
Front tread169 cmReference
Rear tread175 cmReference
Speeds
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
