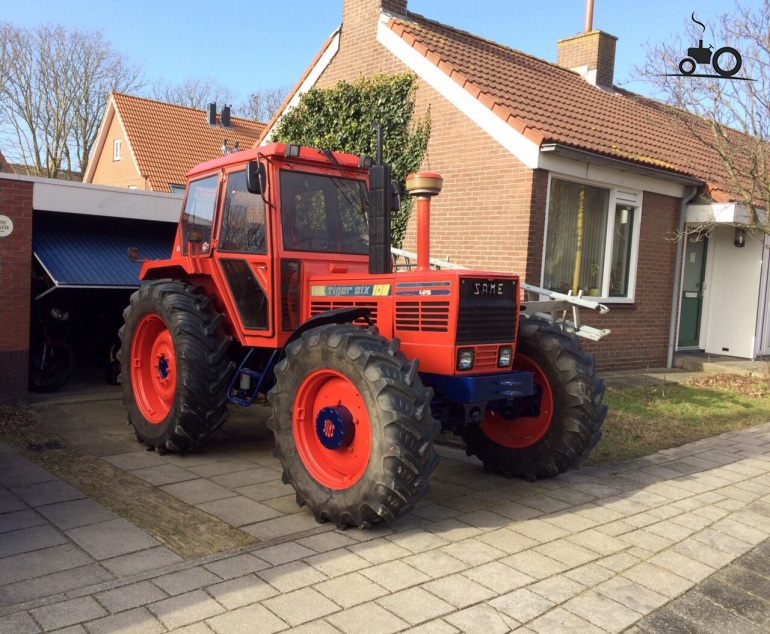

SAME Tiger Six 105
SAME Tiger Six 105 — Row-Crop tractor · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
8333 to 9788 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Four-post ROPS. Cab optional with available air-conditioning.Reference
Engine
SAME 5.4L 6-cyl dieselReference
Fuel tank135.1 LReference
Engine78.3 kWReference
SAME 986PReference
dieselReference
6-cylinderReference
air-cooledReference
Displacement5.4 LReference
Bore/Stroke98 x 120 mmReference
Power78.3 kWReference
Air cleanerdryReference
Compression17:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed syncromeshReference
TypesyncromeshReference
Gears12 forward and 3 reverseReference
Clutchmechanical dry discReference
Four gears (1-4), plus reverse (R) in three ranges. Optional creeper range providing 24 forward gears.Reference
PTO & Hydraulics
Pressure171.6 barReference
Pump flow30.0 lpmReference
Pump flow60.0 lpmReference
Rear TypeIIReference
Controllower-link draft controlReference
Rear lift4760 kgReference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase265 cmReference
4WD Wheelbase271 cmReference
Weight8333 to 9788 poundsReference
Front tire7.50-20Reference
2WD Rear tire18.4/15-34Reference
2WD Standard tires (ag)Front: 7.50-20. Rear: 18.4/15-34Reference
2WD Standard tires (ag)Front: . Rear:Reference
4WD Standard tires (ag)Front: 16.9/14-24. Rear: 18.4/15-34Reference
2WD Optional tires (ag)Front: 7.50-20. Rear: 13.6/12-38Reference
2WD Optional tires (ag)Front: 9.00-16. Rear: 16.9/14-38Reference
2WD Optional tires (ag)Front: 7.50-20. Rear: 16.9/14-38Reference
2WD Optional tires (ag)Front: 9.00-16. Rear: 23.1/30-30Reference
4WD Optional tires (ag)Front: 12.4/11-28. Rear: 13.6/12-38Reference
4WD Optional tires (ag)Front: 14.9/13-28. Rear: 16.9/14-38Reference
4WD Optional tires (ag)Front: 14.9/13-30. Rear: 18.4/15-38Reference
4WD. Rear: Optional tires (ag)Front: 14.8/13-24Reference
4WD. Rear: Optional tires (ag)Front: 23.1/18-30Reference
4WD Optional tires (ag)Front: 16.9/14-24. Rear: 23.1/18-30Reference
2WD Length433 cmReference
4WD Length446 cmReference
Width221 cmReference
Ground clearance47 cmReference
2WD Front tread169 to 229 cmReference
4WD Front tread169 to 218 cmReference
Rear tread175 to 214 cmReference
2WD ROPS3779 kgReference
4WD ROPS4169 kgReference
2WD Cab4049 kgReference
4WD Cab4439 kgReference
SAME Tiger Six 105 Height
Hood164 cmReference
ROPS267 cmReference
Cab277 cmReference
Speeds
With 18.4-34 rear tires.Reference
