Tractor · 1995Unverified

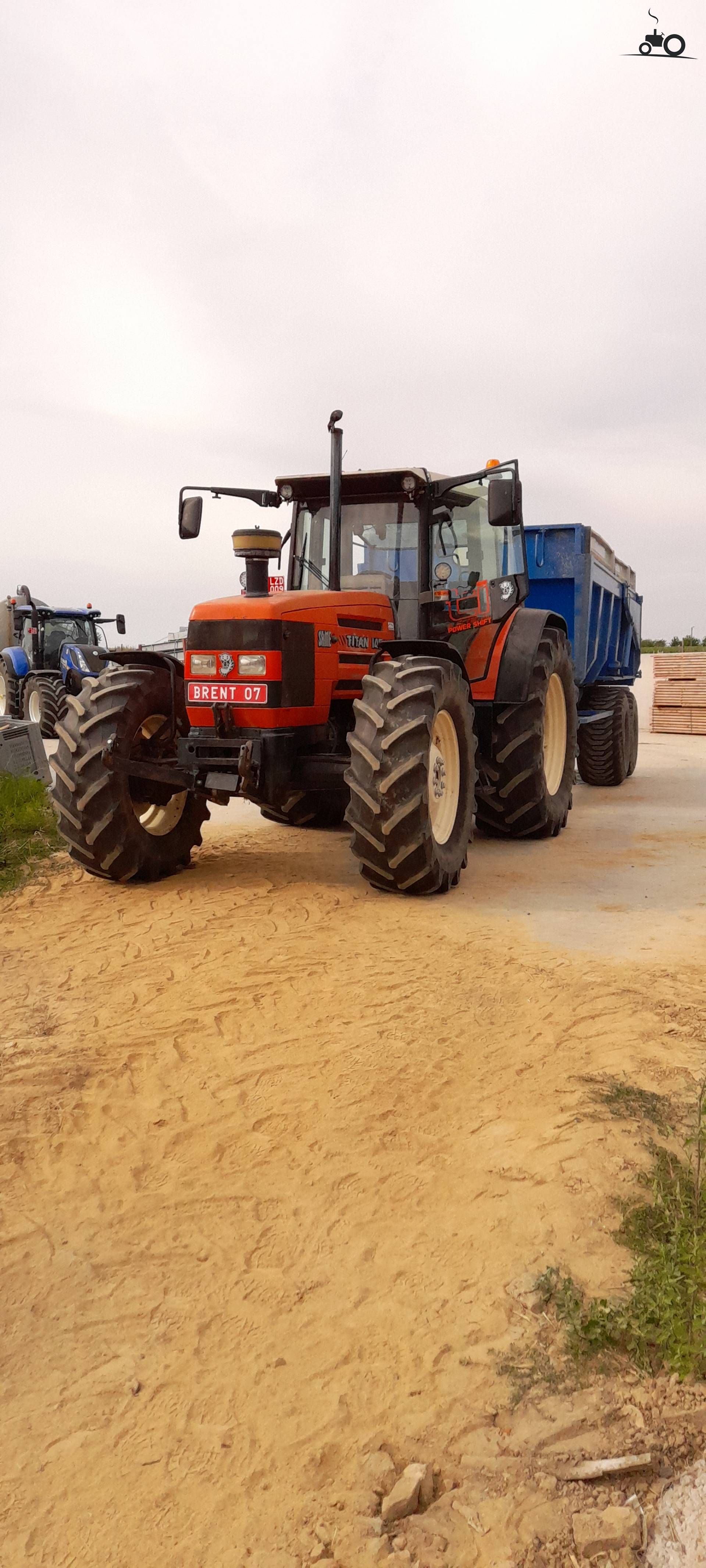

SAME Titan 145
SAME Titan 145 — Titan Series · 145 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
145 hp
Weight
5749 kg
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Row-Crop tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Cab standard with air-conditioning.Reference
Engine
SAME 6.0L 6-cyl dieselReference
Fuel tank230.1 LReference
Fuel tank360.0 LReference
Engine108.1 kWReference
SAME 1000.6 ATIReference
turbocharged dieselReference
6-cylinderReference
air-cooledReference
Displacement6.0 LReference
Bore/Stroke105 x 115 mmReference
Power108.1 kWReference
Rated RPM2350Reference
Transmission
27-speed power shiftReference
Typepower shiftReference
Gears27 forward and reverseReference
Clutchelectro-hydraulic wet discReference
Nine gears in three ranges.Reference
PTO & Hydraulics
Pump flow60.2 lpmReference
Rear lift6999 kgReference
Rear lift8600 kgReference
Front lift2300 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase284 cmReference
Weight5749 kgReference
Front tire16.9R30Reference
Rear tire20.8R38Reference
Standard tires (ag)Front: 16.9R30. Rear: 20.8R38Reference
Optional tires (ag)Front: 480/70R28. Rear: 520/70R38Reference
Optional tires (ag)Front: 480/70R30. Rear: 580/70R38Reference
Length470 cmReference
Width234 cmReference
Height (hood)187 cmReference
Height (cab)284 cmReference
Ground clearance46 cmReference
Front tread189 to 249 cmReference
Rear tread183 to 225 cmReference
Speeds
With 20.8R38 rear tires. Reverse speeds are 10% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
