Tractor · 1998Unverified

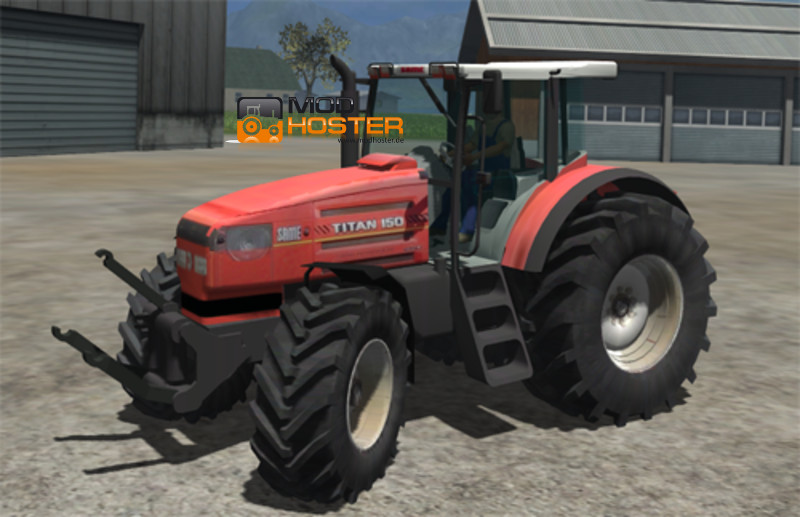

SAME Titan 150
SAME Titan 150 — Titan Series · 150 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
150 hp
Weight
6150 kg
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Row-Crop tractorReference
Four-wheel driveReference
Cab standard with air-conditioning.Reference
Engine
SAME 6.0L 6-cyl dieselReference
Fuel tank360.0 LReference
Engine111.9 kWReference
SAMEReference
turbocharged dieselReference
6-cylinderReference
Displacement6.0 LReference
Bore/Stroke105 x 115 mmReference
Power111.9 kWReference
Rated RPM2350Reference
Transmission
27-speedReference
Gears27 forward and reverseReference
PTO & Hydraulics
Pump flow60.2 lpmReference
Rear lift8601 kgReference
Rear PTO Type540, 1000Reference
Dimensions
Wheelbase284 cmReference
Weight6150 kgReference
Front tire16.9R30Reference
Rear tire20.8R38Reference
Ag front16.9R30Reference
Ag rear20.8R38Reference
Length472 cmReference
Height284 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
