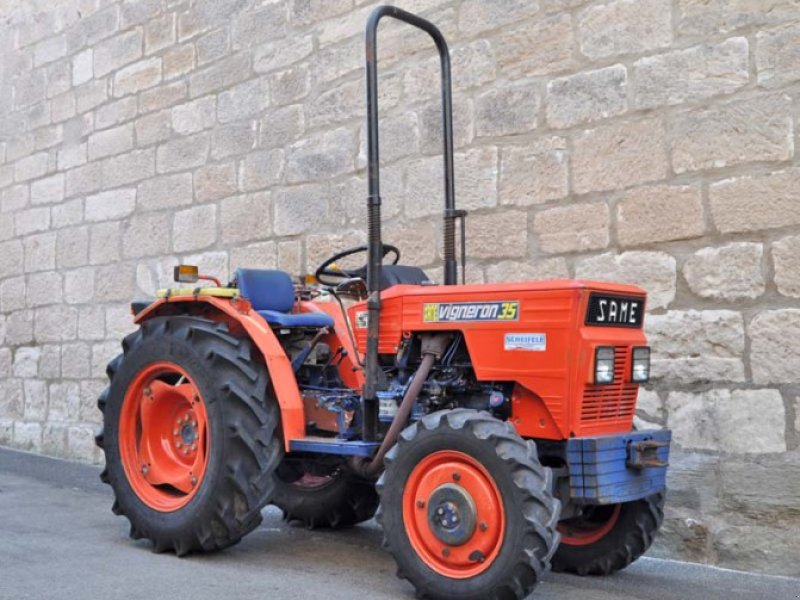

SAME Vigneron 35
SAME Vigneron 35 — Vigneron SeriesOrchard/Vineyard tractor · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
2866 to 3042 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Dry disc brakesReference
Open operator station. ROPS optional.Reference
Engine
SAME 1.8L 2-cyl dieselReference
Engine26.1 kWReference
SAME 982LReference
dieselReference
2-cylinderReference
air-cooledReference
Displacement1.8 LReference
Bore/Stroke98 x 120 mmReference
Power26.1 kWReference
Fuel systemdirect injectionReference
Compression17:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
Pump flow12.9 lpmReference
Rear TypeIReference
Rear lift1349 kgReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase155 cmReference
Weight2866 to 3042 poundsReference
Front tire5.00-15Reference
2WD Rear tire9.5/9-24Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 9.5/9-24Reference
4WD Standard tires (ag)Front: 6.00-16. Rear: 11.2/10-24Reference
Length280 cmReference
2WD Width88 cmReference
4WD Width97 cmReference
Height (hood)118 cmReference
Height (ROPS)137 cmReference
2WD Weight1300 kgReference
4WD Weight1379 kgReference
2WD Ground clearance22 cmReference
4WD Ground clearance29 cmReference
2WD Front tread80 to 119 cmReference
4WD Front tread82 to 106 cmReference
2WD Rear tread65 to 114 cmReference
4WD Rear tread72 to 119 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Speeds
With 11.2-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
