Tractor · Unverified

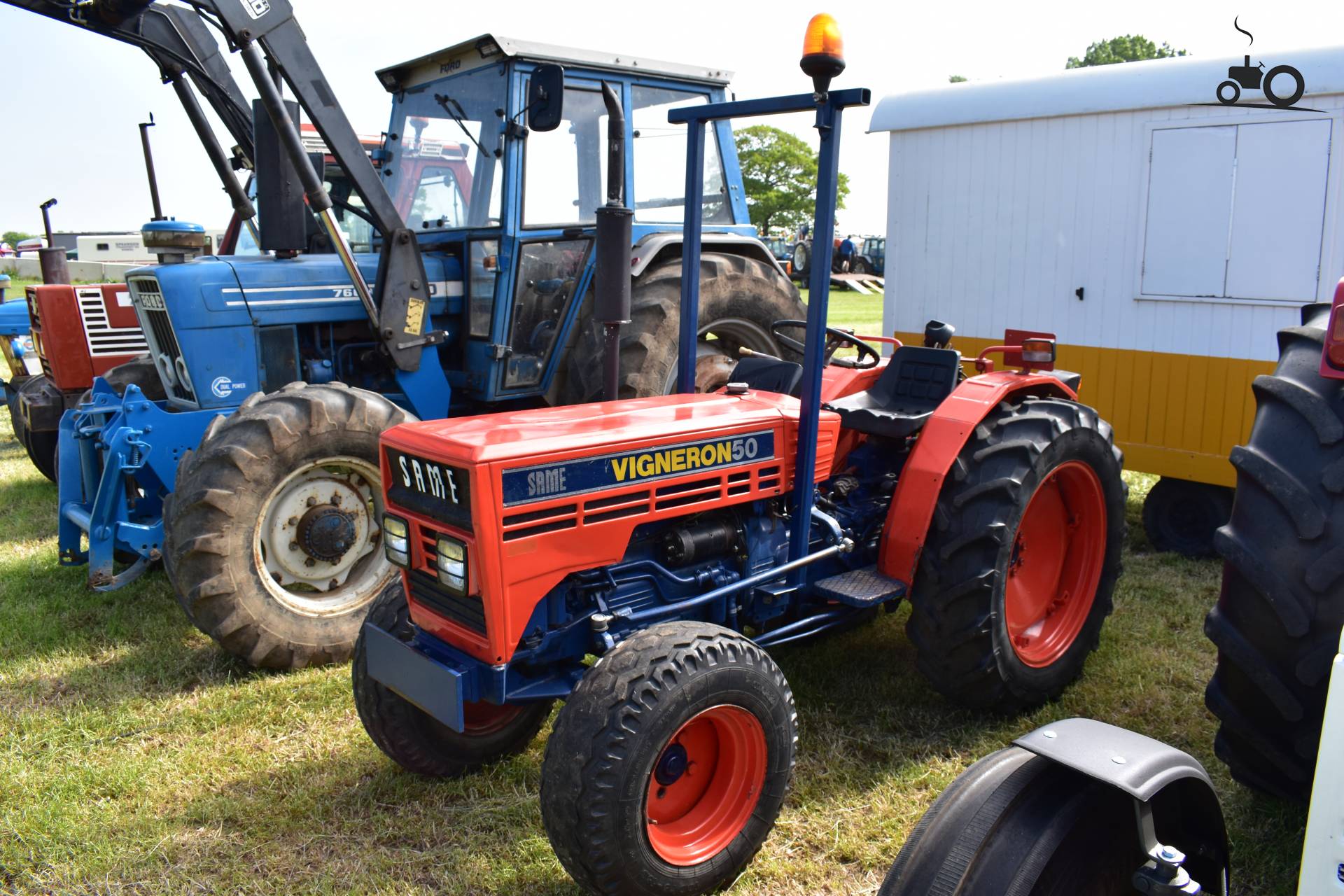

SAME Vigneron 50
SAME Vigneron 50 — Vigneron SeriesOrchard/Vineyard tractor · 48 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
3197 to 3549 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Dry disc brakesReference
Open operator station. ROPS optional.Reference
Engine
SAME 2.7L 3-cyl dieselReference
Engine35.8 kWReference
SAME 983LReference
dieselReference
3-cylinderReference
air-cooledReference
Displacement2.7 LReference
Bore/Stroke98 x 120 mmReference
Power35.8 kWReference
Fuel systemdirect injectionReference
Compression17:1Reference
Rated RPM1800Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speedReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
PTO & Hydraulics
Pump flow12.9 lpmReference
Rear TypeIReference
Rear lift1339 kgReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase180 cmReference
Weight3197 to 3549 poundsReference
Front tire5.00-16Reference
2WD Rear tire11.2/10-28Reference
2WD Standard tires (ag)Front: 5.00-16. Rear: 11.2/10-28Reference
4WD Standard tires (ag)Front: 7.00-18. Rear: 11.2/10-28Reference
2WD Length284 cmReference
4WD Length282 cmReference
Width107 cmReference
2WD Weight1450 kgReference
4WD Weight1609 kgReference
2WD Ground clearance38 cmReference
4WD Ground clearance25 cmReference
2WD Front tread84 to 123 cmReference
4WD Front tread89 to 118 cmReference
Rear tread80 to 119 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
SAME Vigneron 50 Height
2WD Hood119 cmReference
4WD Hood121 cmReference
2WD ROPS143 cmReference
4WD ROPS145 cmReference
Speeds
With 11.2-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
