Tractor · Unverified

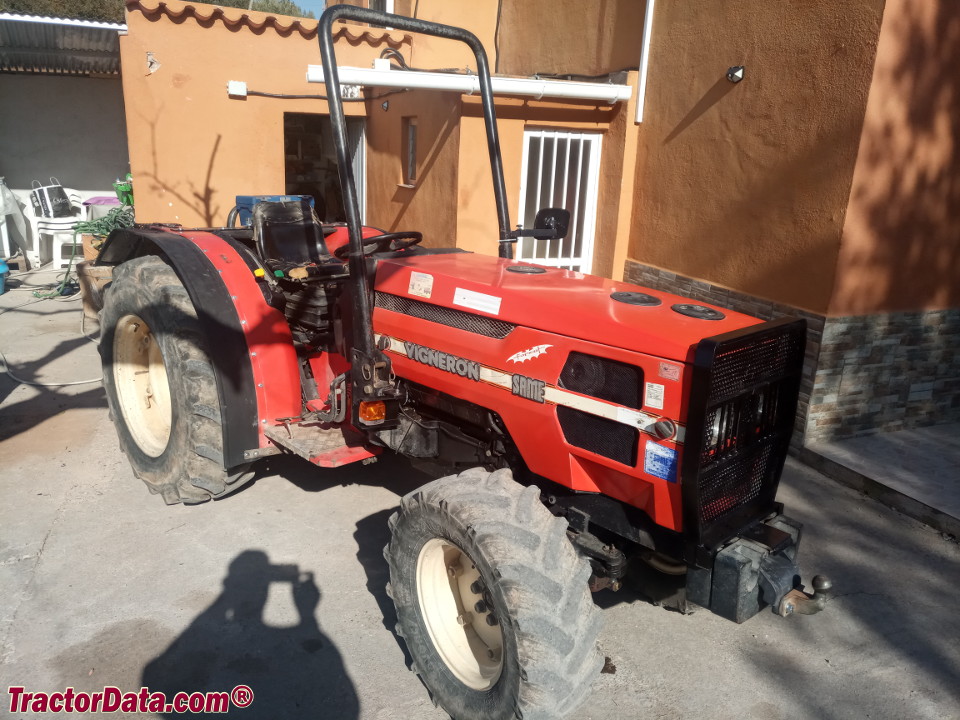

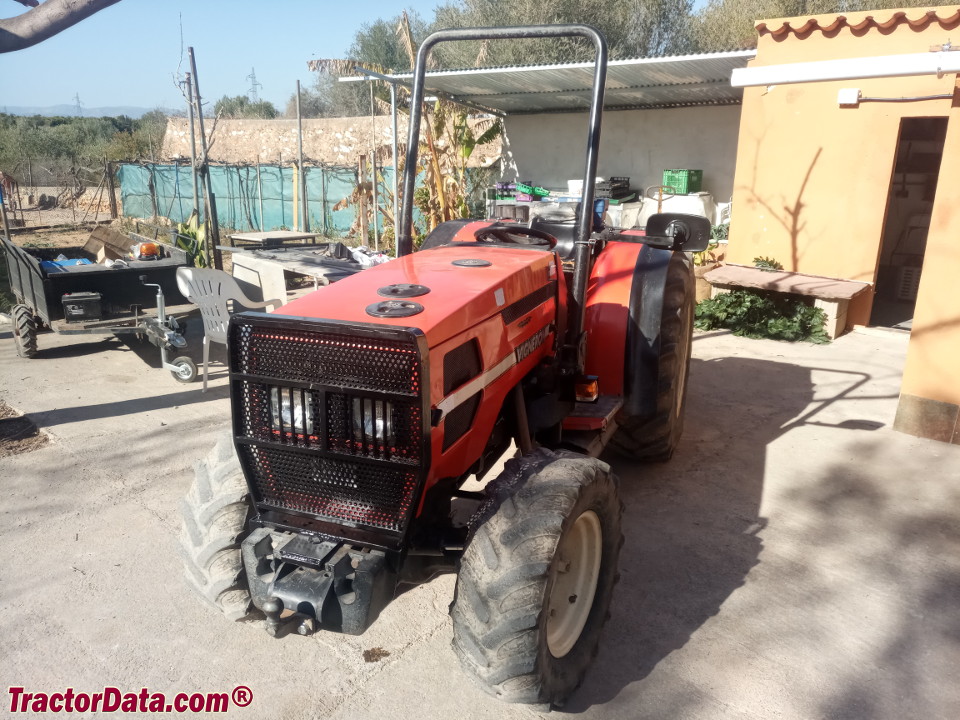

SAME Vigneron 75
SAME Vigneron 75 — Vigneron SeriesOrchard/Vineyard tractor · 67 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
67 hp
Weight
2050 kg
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Orchard/Vineyard tractorReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical front and rearReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post mid-mount folding ROPS.Reference
Engine
SAME 4.0L 4-cyl dieselReference
Fuel tank48.1 LReference
Engine55.9 kWReference
SAME 1000.4AReference
dieselReference
4-cylinderReference
air-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 115 mmReference
Power55.9 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed partially synchronizedReference
16-speed creeperReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Clutchmechanical dry discReference
Four synchronized gears in three ranges.Reference
TypecreeperReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)50.0 kWReference
Pressure182.7 barReference
Valves1 to 3Reference
Pump flow34.8 lpmReference
Pump flow60.6 lpmReference
Rear TypeII/IReference
Rear lift (at ends)2499 kgReference
Rear PTOindependentReference
Clutchdry discReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase201 cmReference
Weight2050 kgReference
Front tire9.0/75x16Reference
Rear tire13.6R24Reference
Standard tires (ag)Front: 9.0/75x16. Rear: 13.6R24Reference
Optional tires (ag)Front: 7.50x18. Rear: 13.6R28Reference
Optional tires (ag)Front: 6.50x16. Rear: 11.2R28Reference
Length336 cmReference
Width118 cmReference
Height (steering wheel)122 cmReference
Height (hood)130 cmReference
Clearance (front axle)29 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Battery AH100Reference
Speeds
With 13.6R24 rear tires. Reverse speeds are 5% slower than forward.Reference
With 13.6R24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
