Tractor · 1977Unverified

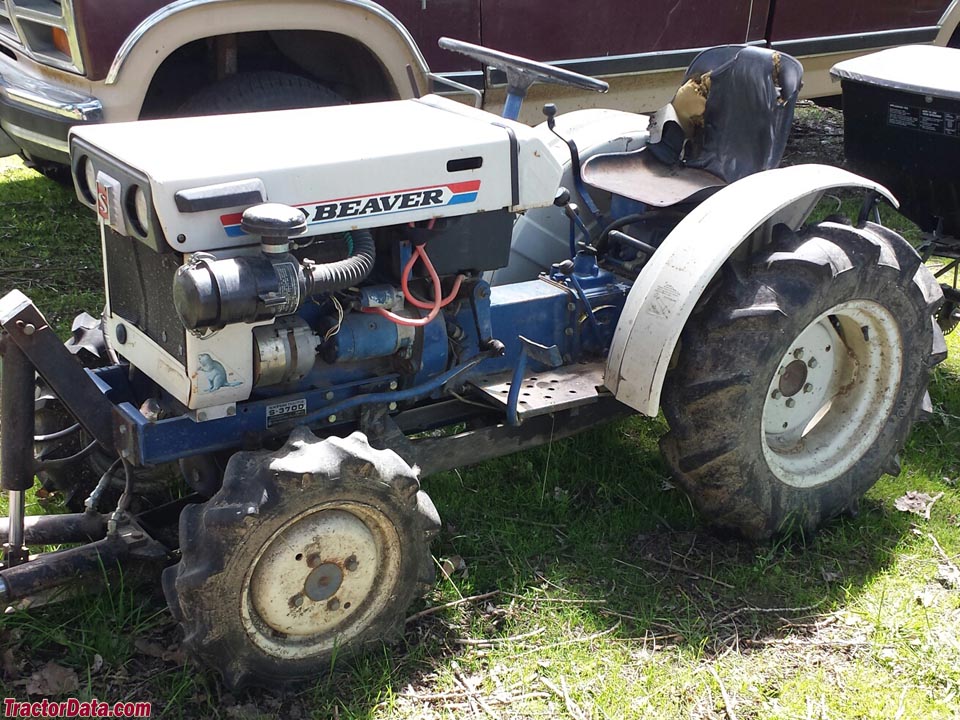

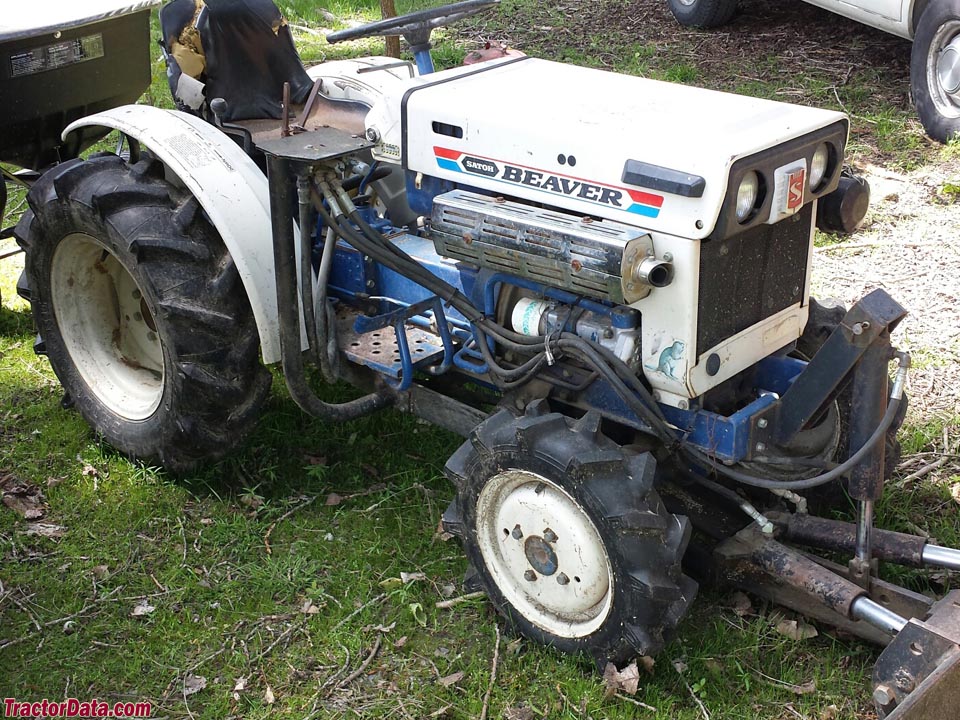

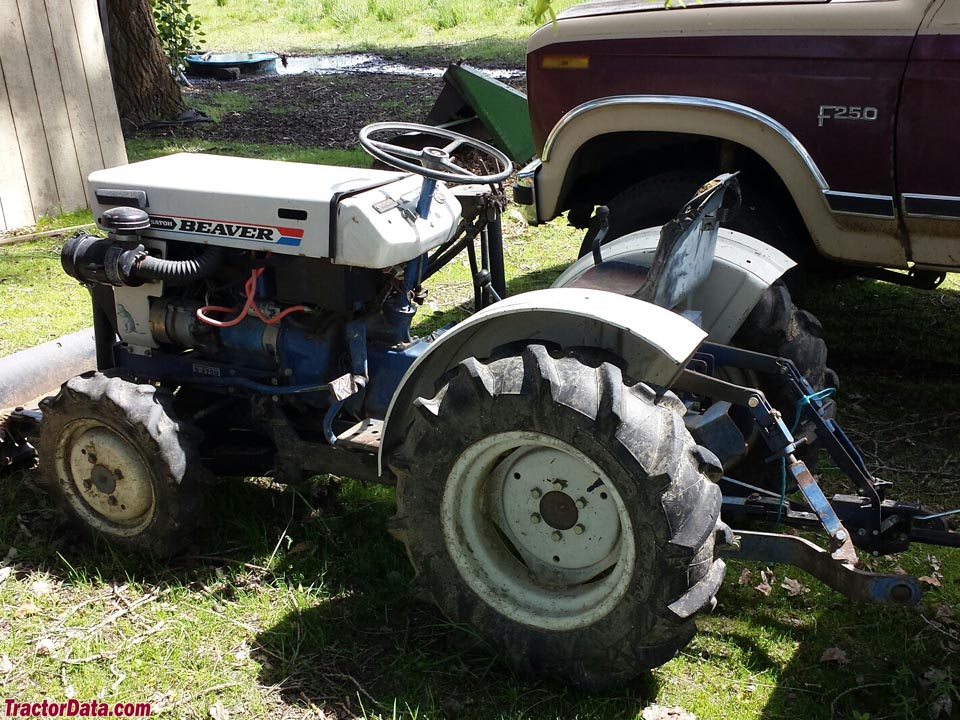

Satoh Beaver S370
Satoh Beaver S370 — Compact Utility tractor · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
1035.3 to 1180.6 pounds
Hover a source tag to verify
Overview
ManufacturerSatohReference
Compact Utility tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (S-370D)Reference
Differential lockfoot pedalReference
SteeringmanualReference
Mechanical internal expanding shoe brakesReference
Open operator station.Reference
Variants
S-3702WDReference
S-370D4WDReference
Engine
Mitsubishi 0.7L 2-cyl dieselReference
Fuel tank12.5 LReference
Engine (gross)11.2 kWReference
Engine (net)9.7 kWReference
Mitsubishi KE70Reference
dieselReference
2-cylinder inline overhead valve-valveReference
liquid-cooledReference
Displacement0.7 LReference
Bore/Stroke73 x 80 mmReference
Power (net)9.7 kWReference
Power (gross)11.2 kWReference
Air cleanerpaper elementReference
Pre-heatingglow plugsReference
Compression20:1Reference
Rated RPM2700Reference
Firing order1-2Reference
Starter volts12Reference
Starter power1.2 kWReference
Oil capacity3.0 LReference
Coolant capacity4.2 LReference
Intake valve clearance0.351 mmReference
Exhaust valve clearance0.351 mmReference
Transmission
6-speed unsymchronized gearReference
Typeunsymchronized gearReference
Gears6 forward and 2 reverseReference
Clutch7.24 inch dry discReference
Oil capacity8.5 LReference
Oil capacity9.8 LReference
Three speeds (1-3) plus reverse in high and low ranges.Reference
PTO & Hydraulics
PTO (claimed)9.1 kWReference
Pressure132.4 barReference
Total flow14.5 lpmReference
Rear Type0Reference
Rear lift (at ends)577 kgReference
Rear PTOtransmissionReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase122 cmReference
Wheelbase126 cmReference
Weight1035.3 to 1180.6 poundsReference
Front tire4.00-9Reference
Rear tire8-16 (2WD)Reference
Standard tires (ag)Front: 4.00-9. Rear: 8-16 (2WD)Reference
Standard tires (ag)Front: 5-12. Rear: 8-16 (4WD)Reference
Lawn/turf front18x7.00-8Reference
Lawn/turf rear9.5-16Reference
Length205 cmReference
Length210 cmReference
Width96 cmReference
Height (steering wheel)110 cmReference
Weight469 kgReference
Weight535 kgReference
Ground clearance24 cmReference
Ground clearance22 cmReference
Satoh S370 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps26.5Reference
Battery volts12Reference
Attachment overview
The Satoh model 2PR-1100S 43-inch rotary tiller was listed as matched equipment for the S-2370 Beaver.Reference
Speeds
With 8-16 R1 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
