Tractor · 1980Unverified

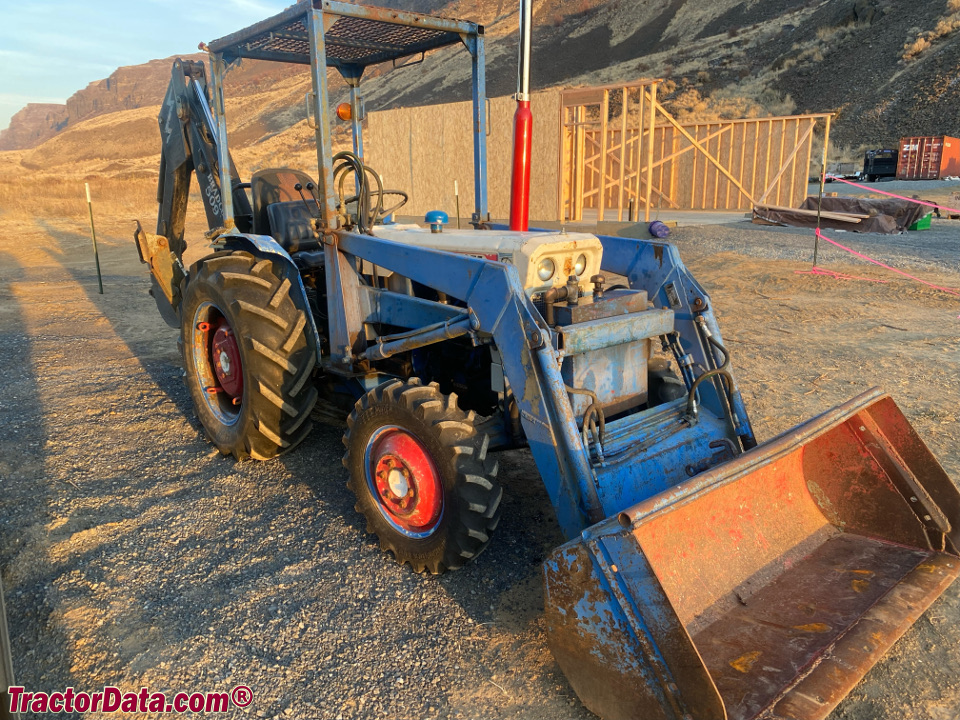

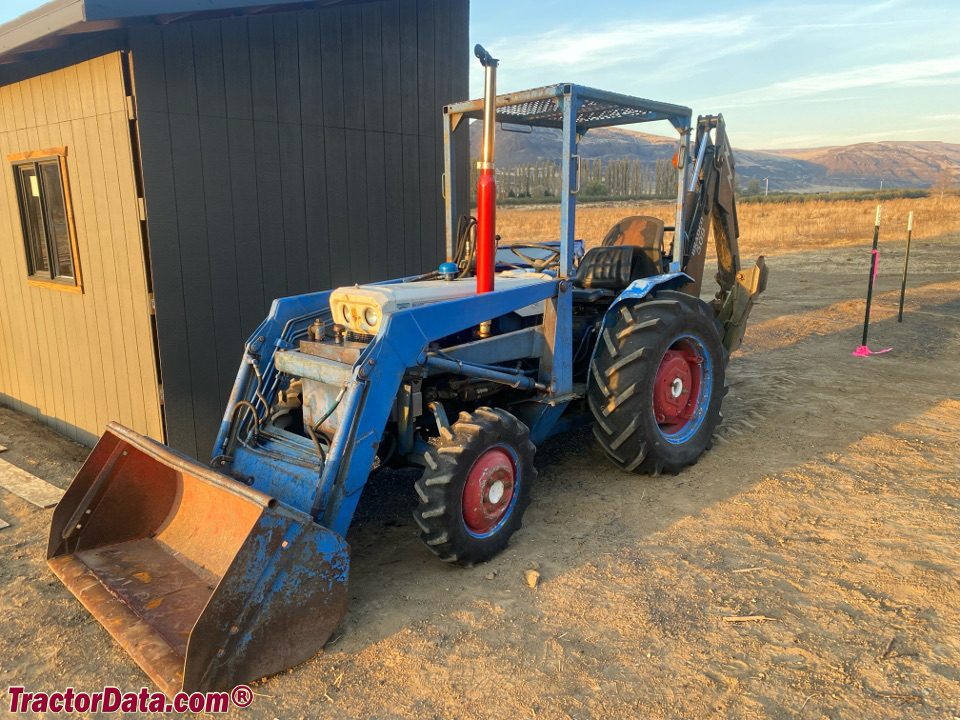

Satoh Bison S670
Satoh Bison S670 — Compact Utility tractor · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
2313 to 2675 pounds
Hover a source tag to verify
Overview
ManufacturerSatohReference
Compact Utility tractorReference
Two- or four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Drum brakesReference
Open operator station.Reference
Engine
Mitsubishi 1.3L 4-cyl dieselReference
Engine22.4 kWReference
MitsubishiReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Power22.4 kWReference
Air cleanerdryReference
Compression23:1Reference
Rated RPM2700Reference
Starter volts12Reference
Oil capacity6.2 LReference
Coolant capacity6.0 LReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
2WD Oil capacity20.0 LReference
4WD Oil capacity21.0 LReference
PTO & Hydraulics
PTO (claimed)18.6 kWReference
Hydraulic system4.7 LReference
Capacity4.7 LReference
Pump flow19.5 lpmReference
Steering flow13.0 lpmReference
Steering cap.0.9 LReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)929 kgReference
Rear PTOliveReference
Rear PTO Type540/1000 (1.375)Reference
Capacities
Fuel40.1 LReference
Steering0.9 LReference
Dimensions
2WD Wheelbase153 cmReference
4WD Wheelbase191 cmReference
Weight2313 to 2675 poundsReference
Front tire5.00-15Reference
2WD Rear tire7-16Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 7-16Reference
4WD Standard tires (ag)Front: 7-16. Rear: 12.4-24Reference
2WD Lawn/turf front20x8.00-10Reference
4WD Lawn/turf front6-14Reference
Lawn/turf rear13.6-16Reference
2WD Length270 cmReference
4WD Length296 cmReference
Width150 cmReference
Height197 cmReference
2WD Weight1049 kgReference
4WD Weight1213 kgReference
Ground clearance28 cmReference
2WD Front tread103 to 134 cmReference
4WD Front tread119 cmReference
Rear tread115 to 149 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH70Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
