Tractor · 1979Unverified

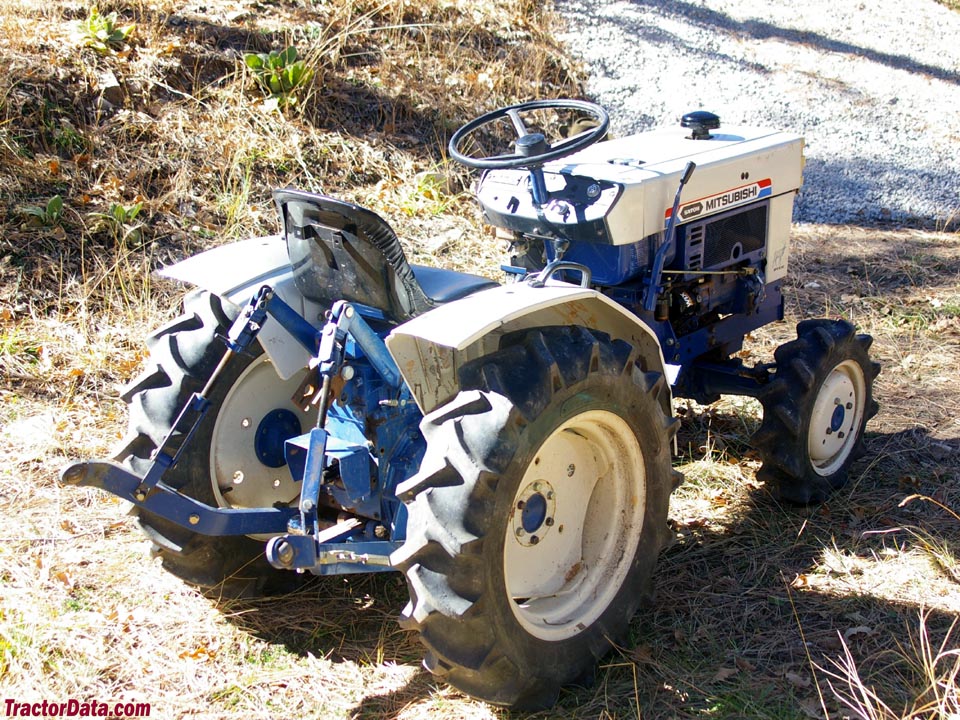

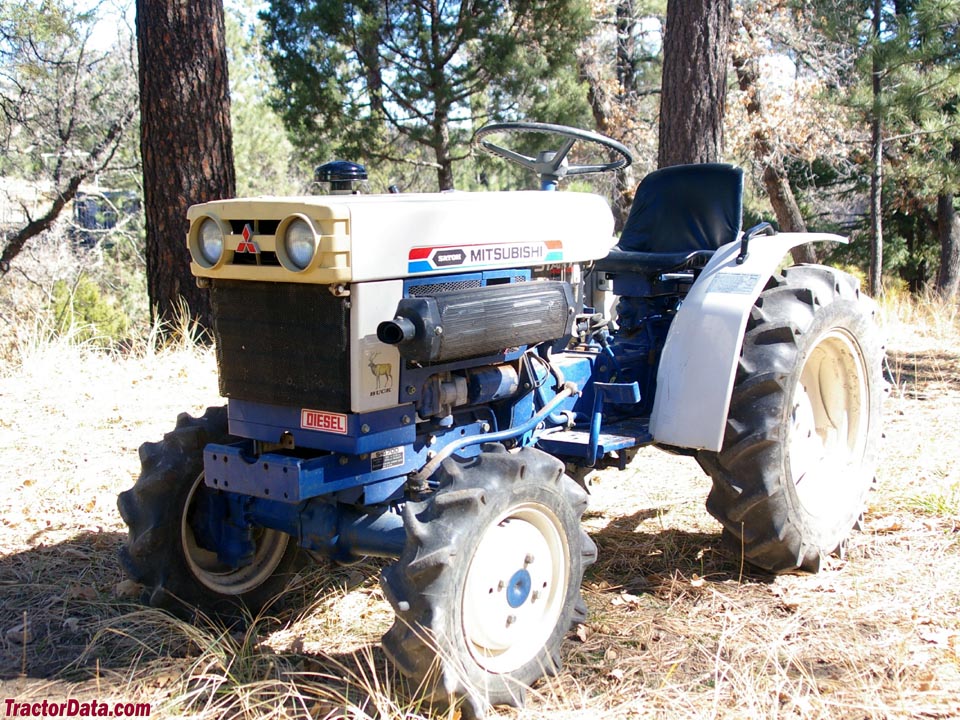

Satoh Buck S470
Satoh Buck S470 — Compact Utility tractor · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
1157 to 1268 pounds
Hover a source tag to verify
Overview
ManufacturerSatohReference
Compact Utility tractorReference
Built in JapanReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (S470D)Reference
SteeringmanaulReference
Drum brakesReference
Open operator station.Reference
Variants
S470D4WDReference
Engine
Mitsubishi 0.8L 3-cyl dieselReference
Fuel tank15.1 LReference
Engine13.8 kWReference
MitsubishiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Power13.8 kWReference
Air cleanerdryReference
Compression23:1Reference
Rated RPM2600Reference
Starter volts12Reference
Oil capacity2.9 LReference
Coolant capacity5.0 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Oil capacity12.0 LReference
PTO & Hydraulics
PTO (claimed)11.2 kWReference
Pump flow13.2 lpmReference
Rear TypeIReference
Controlnon-positional controlReference
Rear lift (at ends)498 kgReference
Rear PTO Type540 (1.375)Reference
Dimensions
Weight1157 to 1268 poundsReference
Front tire4.5-10Reference
Rear tire8-18 (2WD)Reference
Standard tires (ag)Front: 4.5-10. Rear: 8-18 (2WD)Reference
Standard tires (ag)Front: 5-12. Rear: 8-18 (4WD)Reference
Lawn/turf front20x8.00-10 (2WD)Reference
Lawn/turf front6-12 (4WD)Reference
Lawn/turf rear9.5-18Reference
Length191 cmReference
Length199 cmReference
Width93 cmReference
Height119 cmReference
Weight524 kgReference
Weight575 kgReference
Ground clearance28 cmReference
Ground clearance23 cmReference
Front tread71 cmReference
Front tread78 cmReference
Rear tread76/86 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH45Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
