Tractor · 1980Unverified

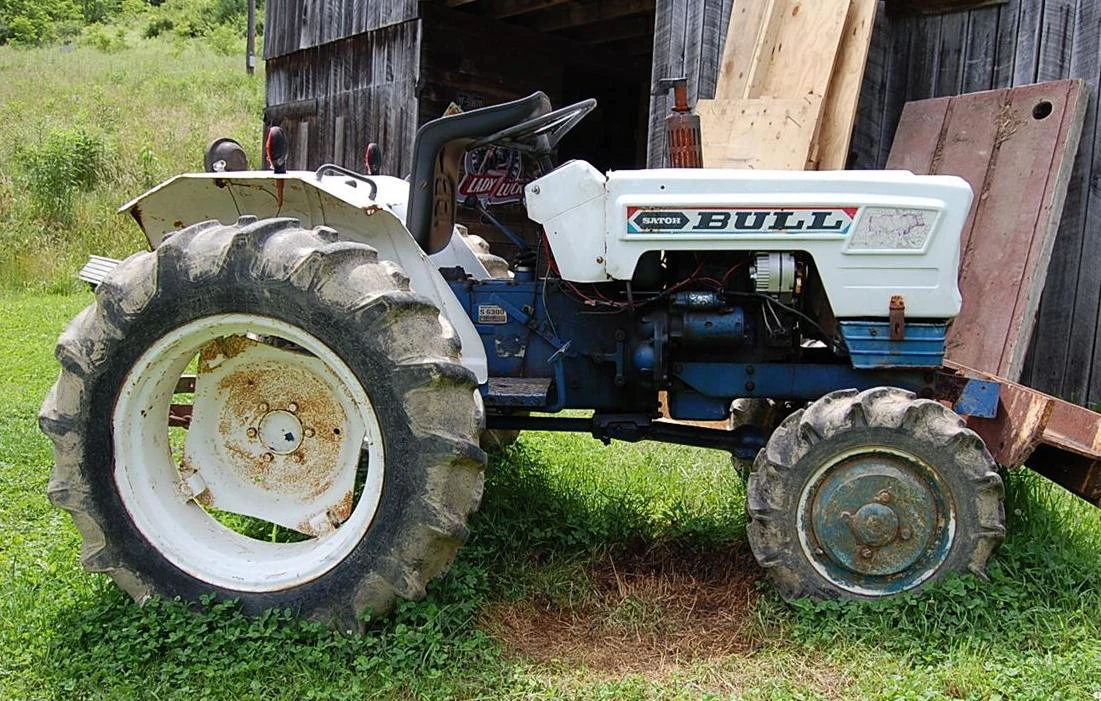

Satoh Bull S630
Satoh Bull S630 — Compact Utility tractor · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
2006 to 2138 pounds
Hover a source tag to verify
Overview
ManufacturerSatohReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Drum brakesReference
Open operator station.Reference
Variants
S630D4WDReference
Engine
Mitsubishi 1.2L 2-cyl dieselReference
Engine18.6 kWReference
Mitsubishi KE130Reference
dieselReference
2-cylinderReference
liquid-cooled inlineReference
Displacement1.2 LReference
Bore/Stroke90 x 98 mmReference
Power18.6 kWReference
Air cleanerdryReference
Compression21:1Reference
Rated RPM2500Reference
Idle RPM750-2700Reference
Torque69.6 NmReference
Torque RPM2000Reference
Starter volts12Reference
Coolant capacity5.6 LReference
Intake valve clearance0.351 mmReference
Exhaust valve clearance0.351 mmReference
Oil capacity4.0 LReference
Oil change100 hReference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
Oil capacity12.0 LReference
Three gears (plus reverse) in three ranges.Reference
PTO & Hydraulics
PTO (claimed)16.4 kWReference
Hydraulic system12.1 LReference
Typeopen centerReference
Capacity12.1 LReference
Pressure127.5 barReference
Pump flow13.2 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)659 kgReference
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Engine RPM555@2432Reference
Engine RPM774@2500Reference
Engine RPM1025@2500Reference
Engine RPM1320@2500Reference
Capacities
Fuel20.1 LReference
Dimensions
Wheelbase152 cmReference
Weight2006 to 2138 poundsReference
Front tire5.00-15Reference
Rear tire11.2-24 (2WD)Reference
Standard tires (ag)Front: 5.00-15. Rear: 11.2-24 (2WD)Reference
Standard tires (ag)Front: 6-14. Rear: 11.2-24 (4WD)Reference
2WD Lawn/turf front20x8.00-10Reference
4WD Lawn/turf front6-14Reference
Lawn/turf rear13.6-16Reference
Length245 cmReference
Width126 cmReference
Height19 cmReference
2WD Weight909 kgReference
4WD Weight969 kgReference
Ground clearance40 cmReference
Ground clearance29 cmReference
Front tread106/117/127/136/147 cmReference
Rear tread96/100/112/115/116/128 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps15Reference
Battery volts12Reference
Battery AH70Reference
Speeds
With 11.2-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
