Tractor · 1977Unverified

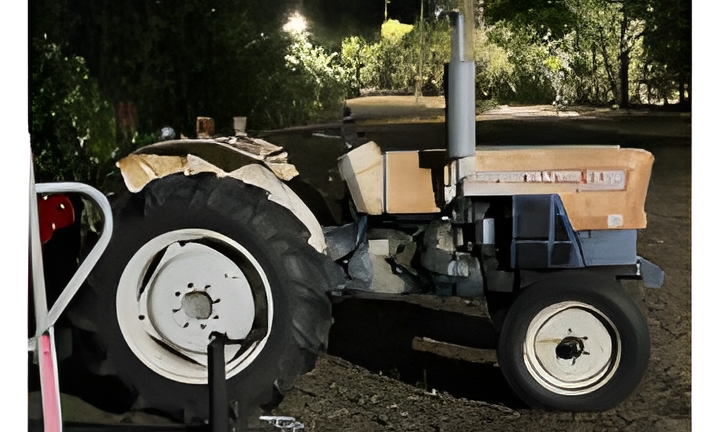

Satoh ST-3200
Satoh ST-3200 — Utility tractor · 32 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Weight
2579 to 2745 pounds
Hover a source tag to verify
Overview
ManufacturerSatohReference
Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
ST-3200Satoh 2WDReference
ST-3200DSatoh 4WDReference
D3200Mitsubishi 2WDReference
D3200FDMitsubishi 4WDReference
Engine
Mitsubihi 1.5L 4-cyl dieselReference
Engine23.6 kWReference
Mitsubihi 4DQ3Reference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement1.5 LReference
Bore/Stroke77 x 80 mmReference
Power23.6 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
15-speed gearReference
TypegearReference
Gears15 forward and 3 reverseReference
Five gears, plus reverse, in three ranges.Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2144Reference
Engine RPM954@2700Reference
Engine RPM1336@2700Reference
Engine RPM1742@2700Reference
Dimensions
2WD Wheelbase171 cmReference
4WD Wheelbase179 cmReference
Weight2579 to 2745 poundsReference
Front tire5.50-16Reference
2WD Rear tire12.4/11-28Reference
2WD Standard tires (ag)Front: 5.50-16. Rear: 12.4/11-28Reference
4WD Standard tires (ag)Front: 8-16. Rear: 12.4/11-28Reference
Length283 cmReference
Width140 cmReference
Height (exhaust)197 cmReference
2WD Weight1169 kgReference
4WD Weight1245 kgReference
2WD Ground clearance43 cmReference
4WD Ground clearance33 cmReference
2WD Front tread107 to 148 cmReference
4WD Front tread109 cmReference
Rear tread108 to 155 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
