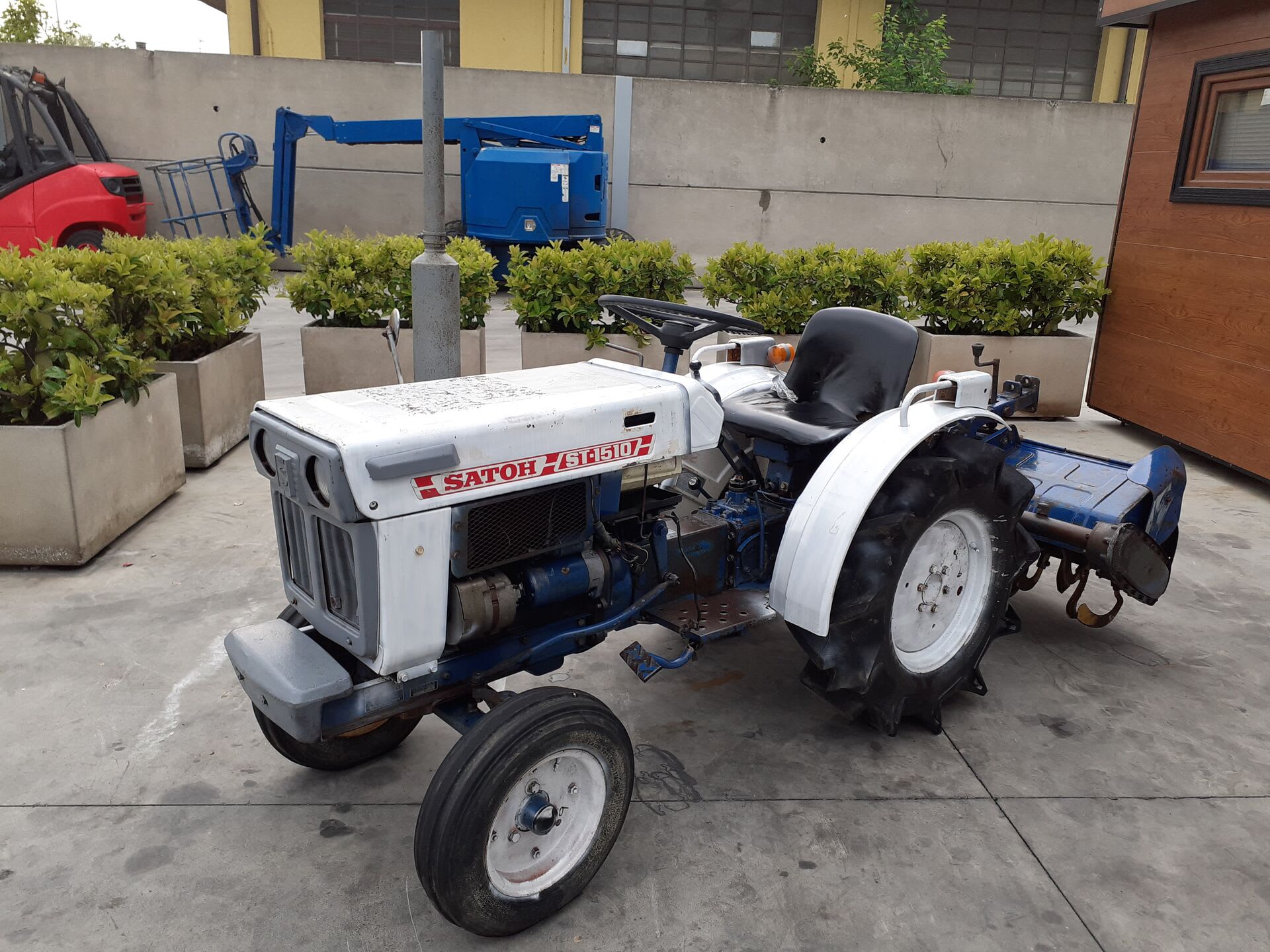

The Satoh ST1510 is a tractor with a rated power of 15 hp, which places it at the lighter end of its class. Power comes from a 2-cylinder diesel liquid-cooled engine, paired with four-wheel drive with a 6-speed gearbox. It suits operations of up to 200 ac. Available dimensions and performance figures follow in both unit systems.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Catalogue coverage
Variants represented
2
Richest spec table
22 rows
Recorded power
15 hp
Transmissions
6-speed gear
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSatohReference
Sub-Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
ST1510D4WDReference
Engine
Mitsubishi 0.8L 2-cyl dieselReference
Engine11.2 kWReference
Mitsubishi KE75Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Power11.2 kWReference
Rated RPM2700Reference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
