Tractor · 1977Unverified

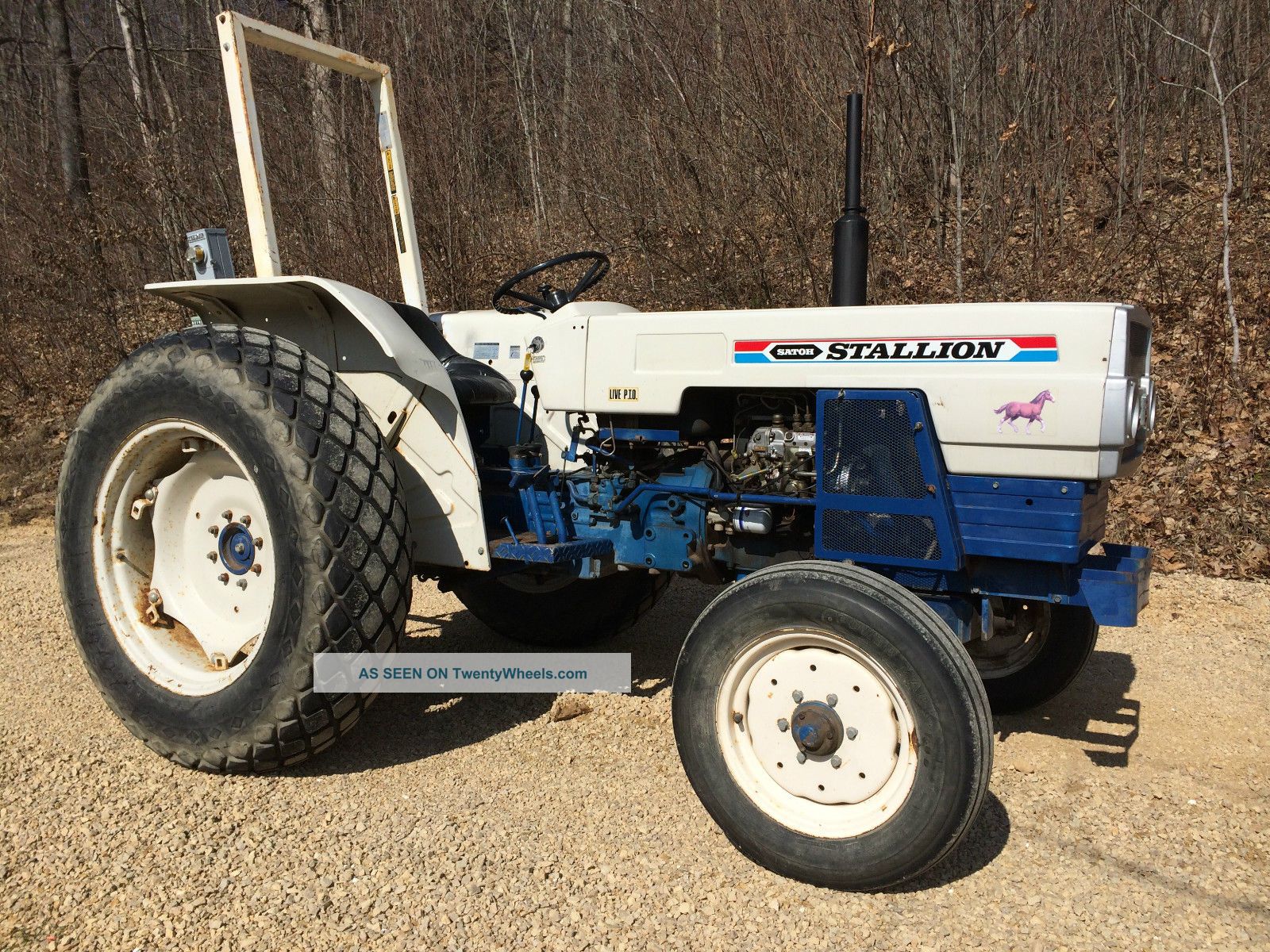

Satoh Stallion S750
Satoh Stallion S750 · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Max power
19.9 kW
Weight
3142 to 3900 pounds
Hover a source tag to verify
Overview
ManufacturerSatohReference
Built in JapanReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (S750DD)Reference
Steeringpower assistReference
Differential mechanical expanding shoe brakesReference
Open operator station. Two-post ROPS available.Reference
Variants
S750D2WDReference
S750DD4WDReference
Engine
Isuzu 1.8L 3-cyl dieselReference
Engine28.3 kWReference
Drawbar (tested)19.9 kWReference
IsuzuReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke86 x 102 mmReference
Power28.3 kWReference
Air cleanerpaper elementReference
Compression20:1Reference
Rated RPM2500Reference
Starter volts12Reference
Oil capacity6.2 LReference
Coolant capacity7.1 LReference
Power at rated engine speed24.9 kWReference
Max power19.9 kWReference
Transmission
9-speedReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
2WD Oil capacity19.9 LReference
4WD Oil capacity23.5 LReference
Three gears (1-3) in three ranges (L/M/H).Reference
PTO & Hydraulics
PTO (claimed)24.6 kWReference
PTO (tested)24.9 kWReference
2WD Hydraulic system20.1 LReference
4WD Hydraulic system23.5 LReference
2WD Capacity20.1 LReference
4WD Capacity23.5 LReference
Pressure142.0 barReference
Pump flow36.0 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)1469 kgReference
Rear PTOlive (two-stage clutch)Reference
Rear PTO Type540 (1.375)Reference
Power at rated PTO speed21.0 kWReference
Capacities
Fuel45.4 LReference
Dimensions
2WD Wheelbase181 cmReference
4WD Wheelbase186 cmReference
Weight3142 to 3900 poundsReference
Front tire6.00-16Reference
2WD Rear tire13.6-28Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 13.6-28Reference
4WD Standard tires (ag)Front: 7-16. Rear: 13.6-28Reference
2WD Length293 cmReference
4WD Length303 cmReference
Width166 cmReference
Height197 cmReference
2WD Front tread120 to 179 cmReference
4WD Front tread127 cmReference
Rear tread132 to 182 cmReference
2WD Shipping1425 kgReference
4WD Shipping1559 kgReference
4WD Operating1769 kgReference
Ballasted2517 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH70Reference
Test results
Diesel 9-speed 4WDLink: OCED Tractor Test 5/10/1980;5/19/1980 fileReference
PTO performanceReference
Fuel use11.0 l/hourReference
Fuel use9.1 l/hourReference
Drawbar performanceReference
Max pull1948 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
