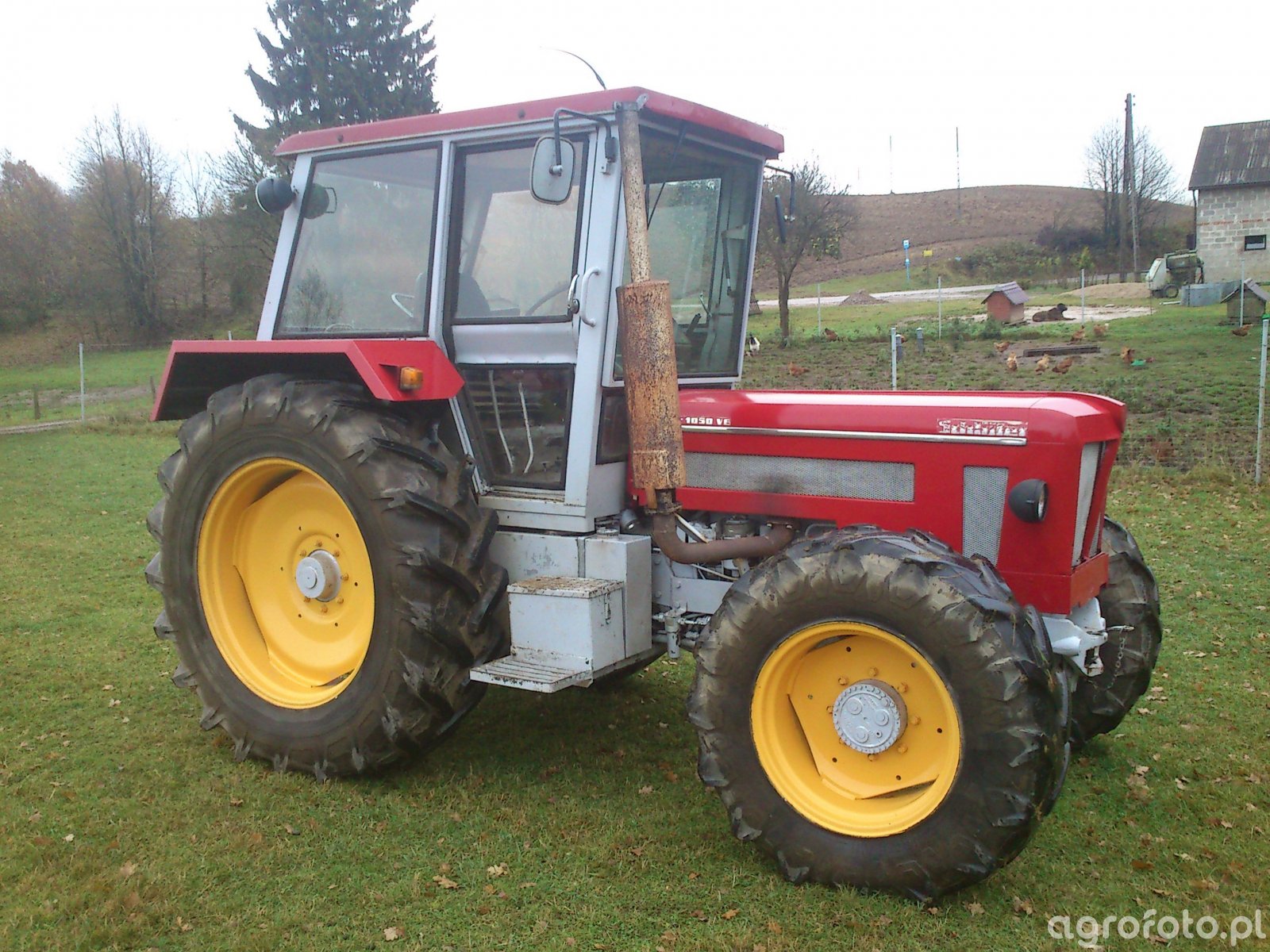

The Schluter Compact 1050 V 6 is a tractor model with an engine rating of 100 hp, which falls within the mid-range of its class. Manufactured between 1982 and 1984, this tractor features a 6-cylinder diesel engine and four-wheel drive with a hydrostatic transmission. Its operating weight is listed as 4600 kg, and it is suitable for operations on areas ranging from 200 to 800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
4600 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
100 hp
Recorded weight
4600 kg
Transmissions
12-speed
Production years
1982-1984
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Drum brakesReference
Engine
MAN 5.7L 6-cyl dieselReference
Fuel tank160.1 LReference
Engine74.6 kWReference
MAN D 0226 ME 51Reference
dieselReference
6-cylinderReference
Displacement5.7 LReference
Bore/Stroke102 x 116 mmReference
Power74.6 kWReference
Rated RPM2200Reference
Torque373.0 NmReference
Torque RPM1300Reference
Transmission
12-speedReference
Gears12 forward and 5 reverseReference
PTO & Hydraulics
Total flow45.0 lpmReference
Rear lift3600 kgReference
Rear lift4500 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase240 cmReference
Weight4600 kgReference
Front tire12.4R28Reference
Rear tire18.4R38Reference
Ag front12.4R28Reference
Ag rear18.4R38Reference
Length417 cmReference
Height271 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
